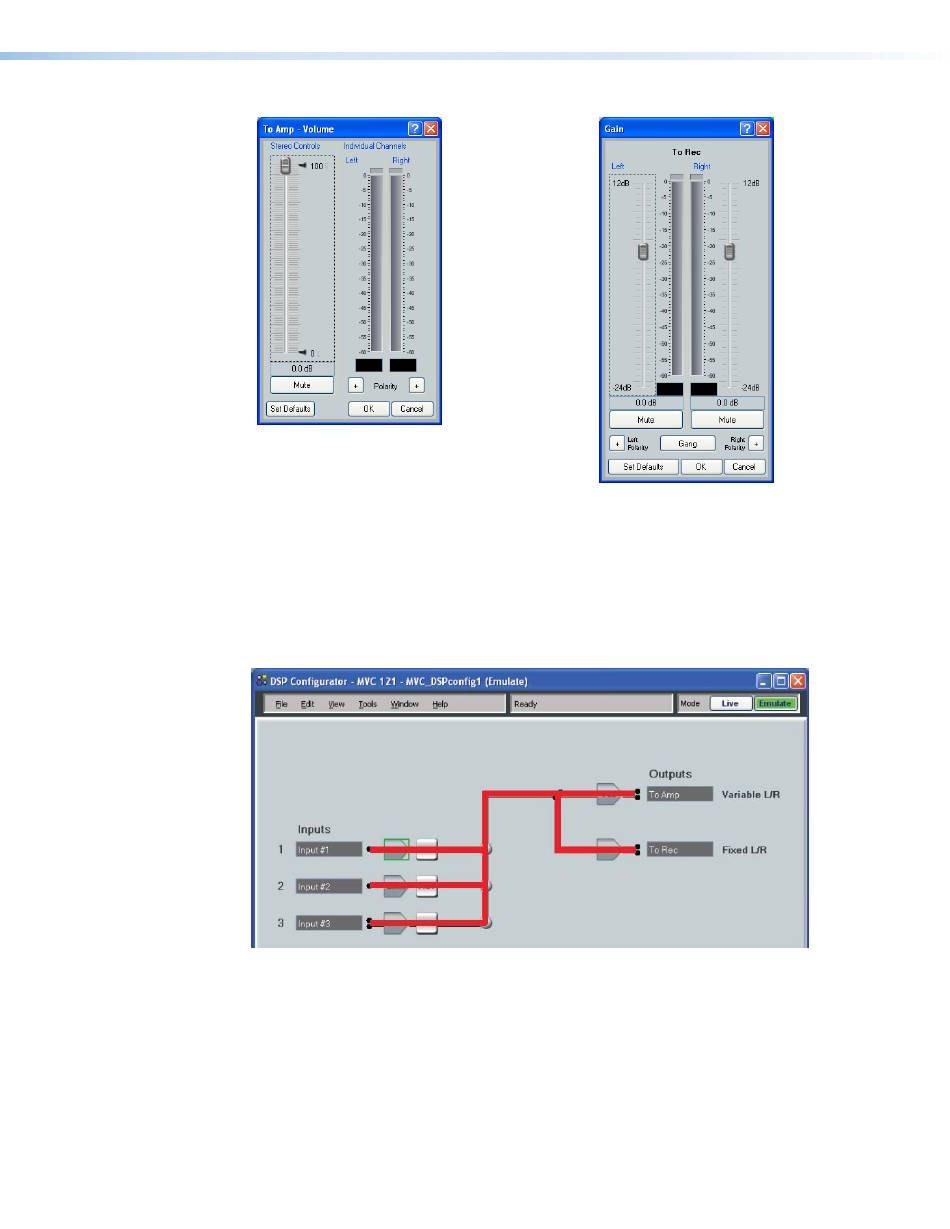

Figure 34.
To Amp - Volume Dialog Box
Figure 35.
Gain Dialog Box
Double-click on the Gain control block to adjust the fixed output from -24 dB to +12 dB with
a step resolution of 0.1 dB (see figure 35).
In the following example, audio from the three inputs is processed individually and arrive
at their separate mix-points. When the individual mix-point mute buttons are released, the
mix-point junctions turn teal to indicate the routing, and all three signals are routed to the
Output, both variable and fixed. Open the individual mix-point dialog boxes to adjust signal
levels to the output.
Figure 36.
All Inputs to Output
MVC 121 Plus • Operation
