MVC 121 Plus • Setup Guide
The Extron MVC 121 Plus is an audio mixer and volume controller that will mix up to two mono mic/line inputs (balanced/
unbalanced) with one stereo line level input (balanced/unbalanced). All audio input signals are converted from analog to digital
prior to processing or routing. Each mic/line input and the line level input have their own gain control adjustment screws. The
mixed variable output also features a volume control knob on the front panel.
NOTE:
For full installation, configuration, and operation details, see the MVC 121 Plus User Guide, available at
www.extron.com.

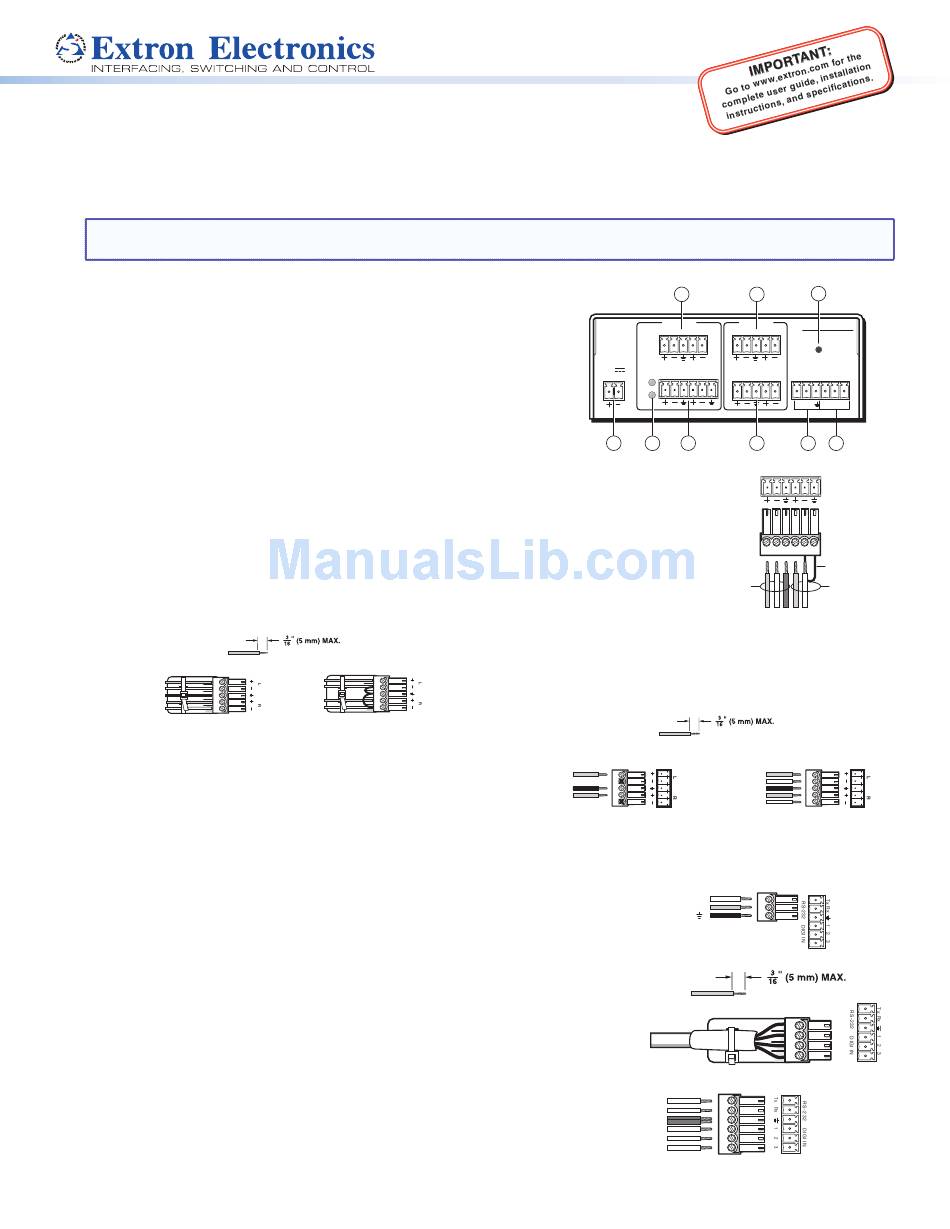

Rear Panel Features and Connections
a
12 VDC power connector
b
Mic 1 and 2 Phantom power LED
c
Mic/Line input connectors (1 – 2)
d
Line input connector (3)
e
Variable output connector
Installing the MVC 121 Plus
Disconnect power from all equipment.
1.
(Optional) Mount the unit to a rack or furniture.
2.
Connect the audio inputs.
3.
Connect up to two balanced or unbalanced mono mic/line level input devices to
•
connector c above (see the 6-pole wiring diagram on the right). Alternatively,
two 3-pole connectors may be used.
A balanced or unbalanced stereo line level input may be connected to d above (see the 5-pole wiring diagram below).
•
Tip
Ring
Sleeves
Tip
Ring
Balanced audio
Connect the audio output.
4.
For variable balanced or unbalanced stereo output controlled
•
by the front panel knob of the MVC 121 Plus, connect an
amplifier to the Variable connector
diagram on the right).
For fixed stereo output, connect an output device to Fixed
•
f
connector (see the wiring diagram above).
Connect a control device. Connect a host device, such as a computer, to
5.
one of the following MVC ports to configure and control the MVC 121 plus via
Simple Instruction Set (SIS™) commands.
RS-232 port (rear panel) — Connect a host device to the Tx, Rx, and
•
_
(ground) pins of this 6-pole captive screw connector (
baud rate for this port is 38400 baud, 1 stop bit, no parity, 8 data bits, and
no flow control (see the wiring diagram on the right).
Config port (front panel) — See
•
Digital input connector. Up to three configurable input ports (see
6.
rear panel diagram above) allow connection to various devices including motion
detectors, alarms, buttons, photo (light) sensors, and temperature sensors. This
connector shares a common ground with the RS-232 connector (see the wiring
diagram on the right).
Both the RS-232 and digital input connectors may be used simultaneously by
using a 6-pin captive screw connector with two wires sharing the ground connector
(see the diagram on the right).
f
Fixed output connector
g
RS-232 connector
h
Digital input connector
i
Reset button
Do not tin the wires!
Tip
Sleeve
Tip
Sleeve
Unbalanced audio
e
, above (see the wiring
Front Panel Features
L
MIC
POWER
+48V
12V
1
0.4A MAX
1
2
1 2
Tip
NO GROUND HERE.
Sleeve(s)
Tip
NO GROUND HERE.
Unbalanced Stereo Output
Transmit (Tx)
Receive (Rx)
Ground (Gnd,
g
). The default
on the next page.
h
on the
9
4 5
INPUTS OUTPUTS
MVC 121 Plus
LINE 3 R L VARIABLE R
RESET
MIC/LINE 2
L FIXED R
RS-232 DIGI IN
Tx Rx 1 2 3
3 6 7 8
1 MIC/LINE 2
Jumper
Balanced MIC Unbalanced MIC
Do not tin the wires!
Tip
Left
Ring
Sleeve(s)
Tip
Right
Ring
Balanced Stereo Output
)
Do not tin the wires!
_
1
2
3
Left
Right
