DSP Processing and Signal Flow

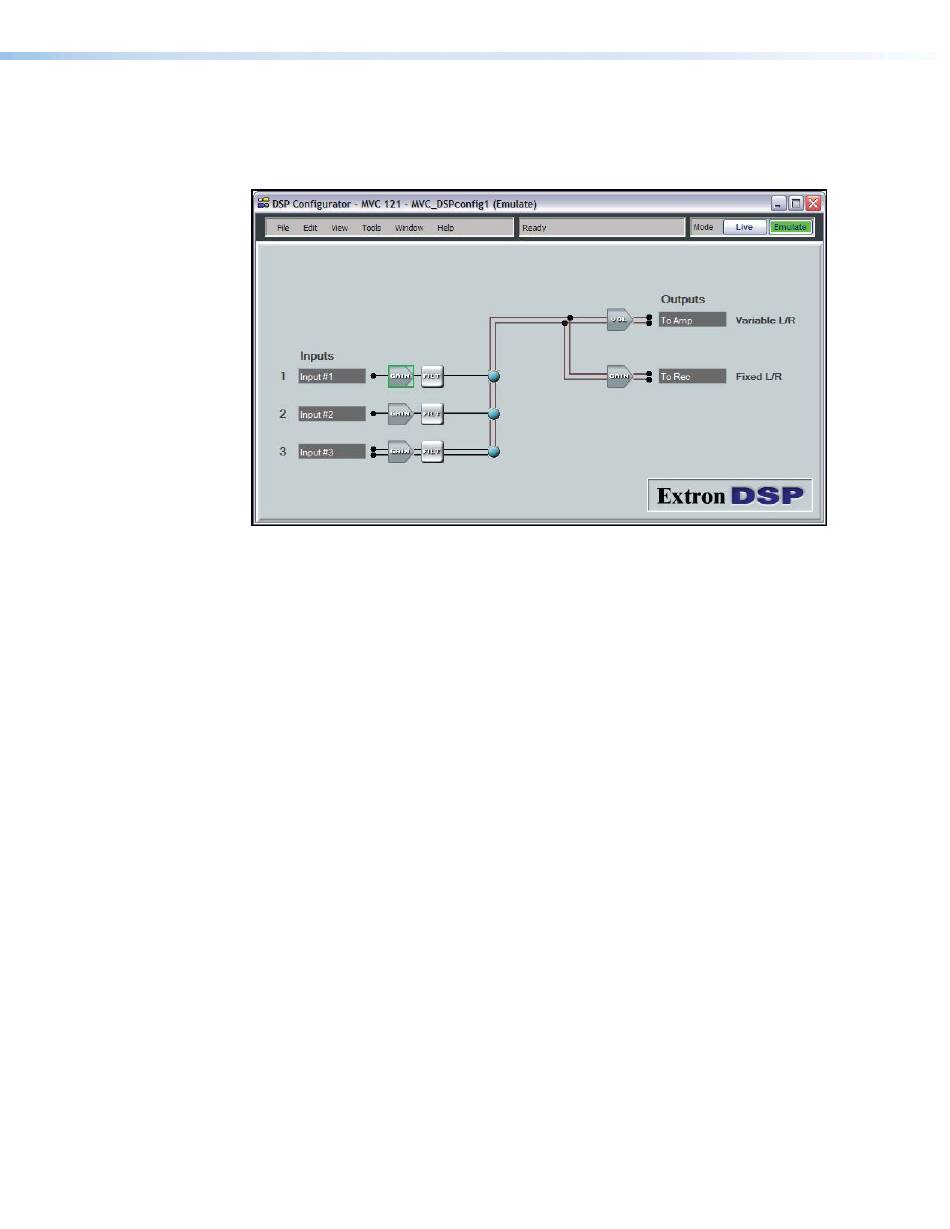

The diagram below shows the input signal flow and DSP processing per signal chain.
Signal chains and mix-points are described in the following sections.
Figure 18.
DSP Processing per Signal Chain
All signal routing, processing, and level control (gain/volume), are accomplished using
software control from a PC connected to the MVC 121 Plus via the USB configuration port
or the RS-232 port. The DSP Configurator program provides complete control while the SIS
commands provide more limited control.
This section describes the signal processing including parameter ranges, and how to
mix inputs and outputs using the DSP Configurator control program. To install the DSP
Configurator program, see
Software Control
on page 39.
MVC 121 Plus • Operation
15
