Front Panel Features

1 1 2 2
Figure 10.
1
2
3
Do not tin the wires!
Figure 9. Digital Input Wiring Diagram
Both the RS-232 and the digital input connectors may be used simultaneously by using
a 6-pin captive screw connector with two wires sharing the same ground connector
(see the diagram below).
Reset — The recessed reset button is used to access various modes of resets. The
green power LED on the front panel indicates what mode of reset was accessed (see
MVC 121 Plus Hardware Reset Modes
the
details).
MIX
1 2
CONFIG
MIC MIC
3 3 4 4
1 2 3 4

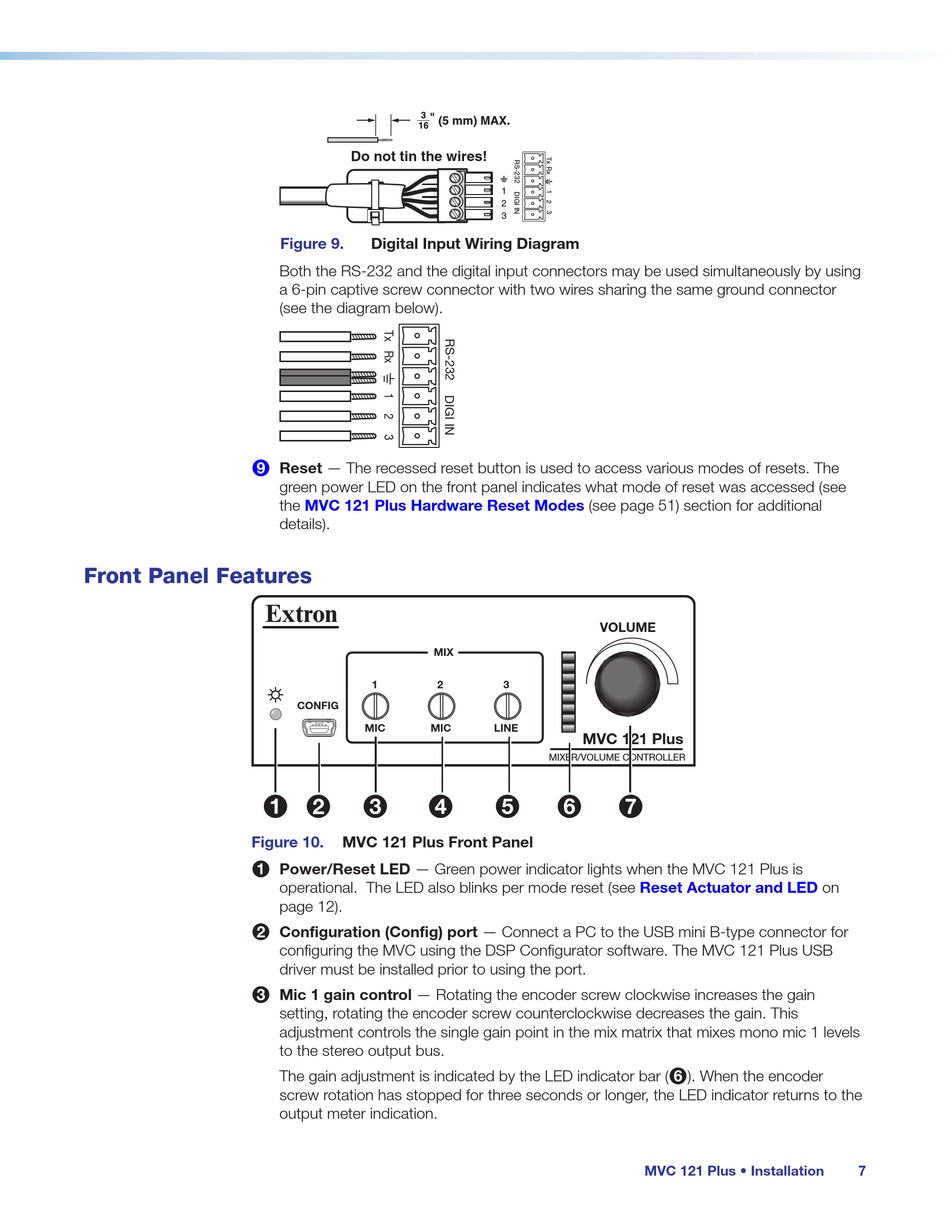

MVC 121 Plus Front Panel
Power/Reset LED — Green power indicator lights when the MVC 121 Plus is
operational. The LED also blinks per mode reset (see
page 12).
Configuration (Config) port — Connect a PC to the USB mini B-type connector for
configuring the MVC using the DSP Configurator software. The MVC 121 Plus USB
driver must be installed prior to using the port.
Mic 1 gain control — Rotating the encoder screw clockwise increases the gain
setting, rotating the encoder screw counterclockwise decreases the gain. This
adjustment controls the single gain point in the mix matrix that mixes mono mic 1 levels
to the stereo output bus.
The gain adjustment is indicated by the LED indicator bar (
screw rotation has stopped for three seconds or longer, the LED indicator returns to the
output meter indication.
_
1
2
3
(see page 51) section for additional
VOLUME
3
LINE
MVC 121 Plus
MIXER/VOLUME CONTROLLER
5 5 6 6 7 7
5 6 7
Reset Actuator and LED
6
MVC 121 Plus • Installation
on
). When the encoder
