3.
USB driver installation is complete.
DSP Configurator Program
Starting the Program
1.
2.
3.

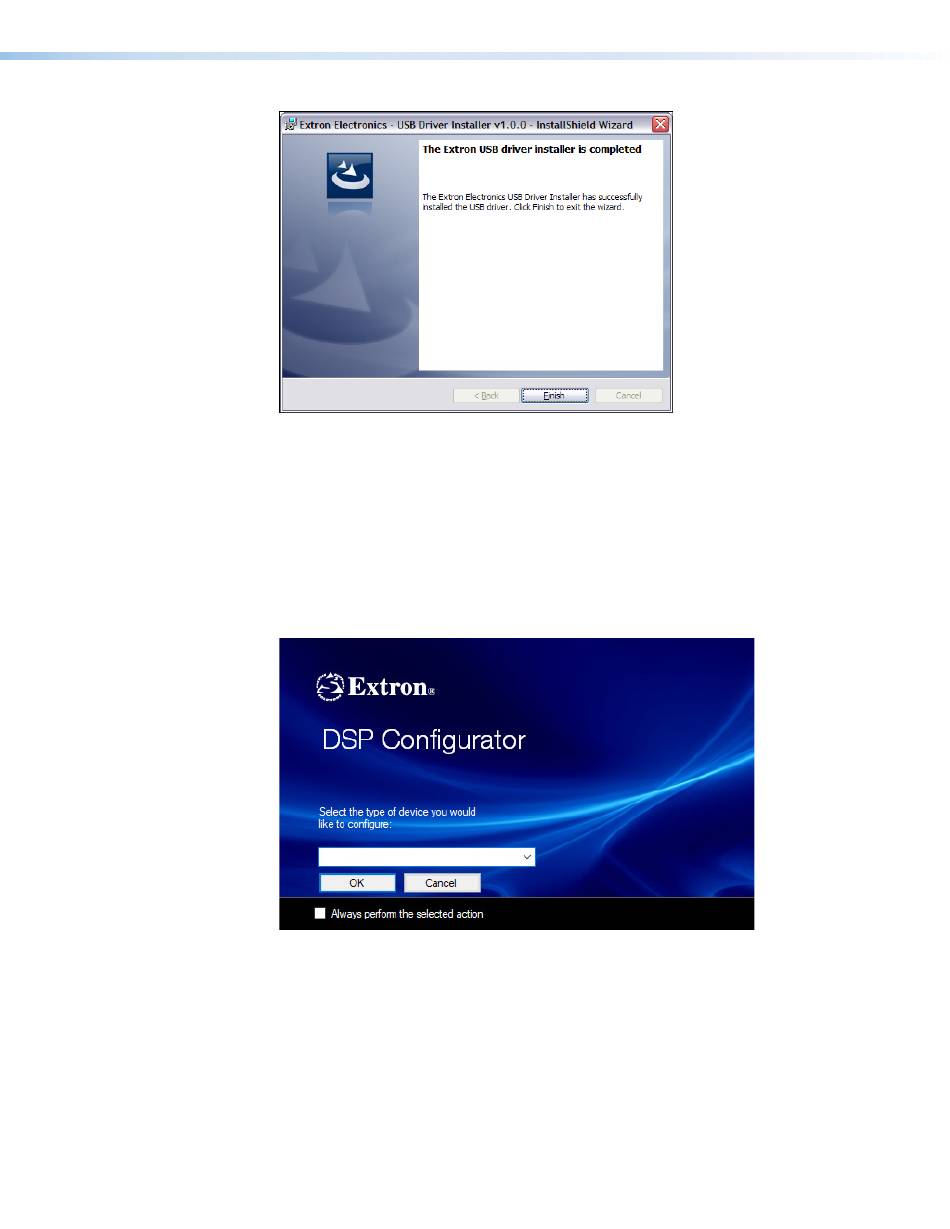

Figure 43.
Successful USB Driver Installation
Click Finish.
To run the DSP Configurator Program, click Start > Programs > Extron
Electronics > DSP Configurator > DSP Configurator.
Figure 44.
DSP Configurator Start Dialog Box
The DSP Configurator program starts in Emulate mode (see
Mode
on page 44).
Select the device to be configured (MVC 121 Plus).
Click OK.
Emulate Mode vs. Live
MVC 121 Plus • Software Control
42
