Output Channels

There are two stereo Outputs, as shown below. A Volume control block adjusts the Variable
L/R output and a gain control block adjusts the fixed L/R outputs.
Double-click on the Volume control block to adjust the variable output. Double-click on the
Gain control block to adjust the fixed output.

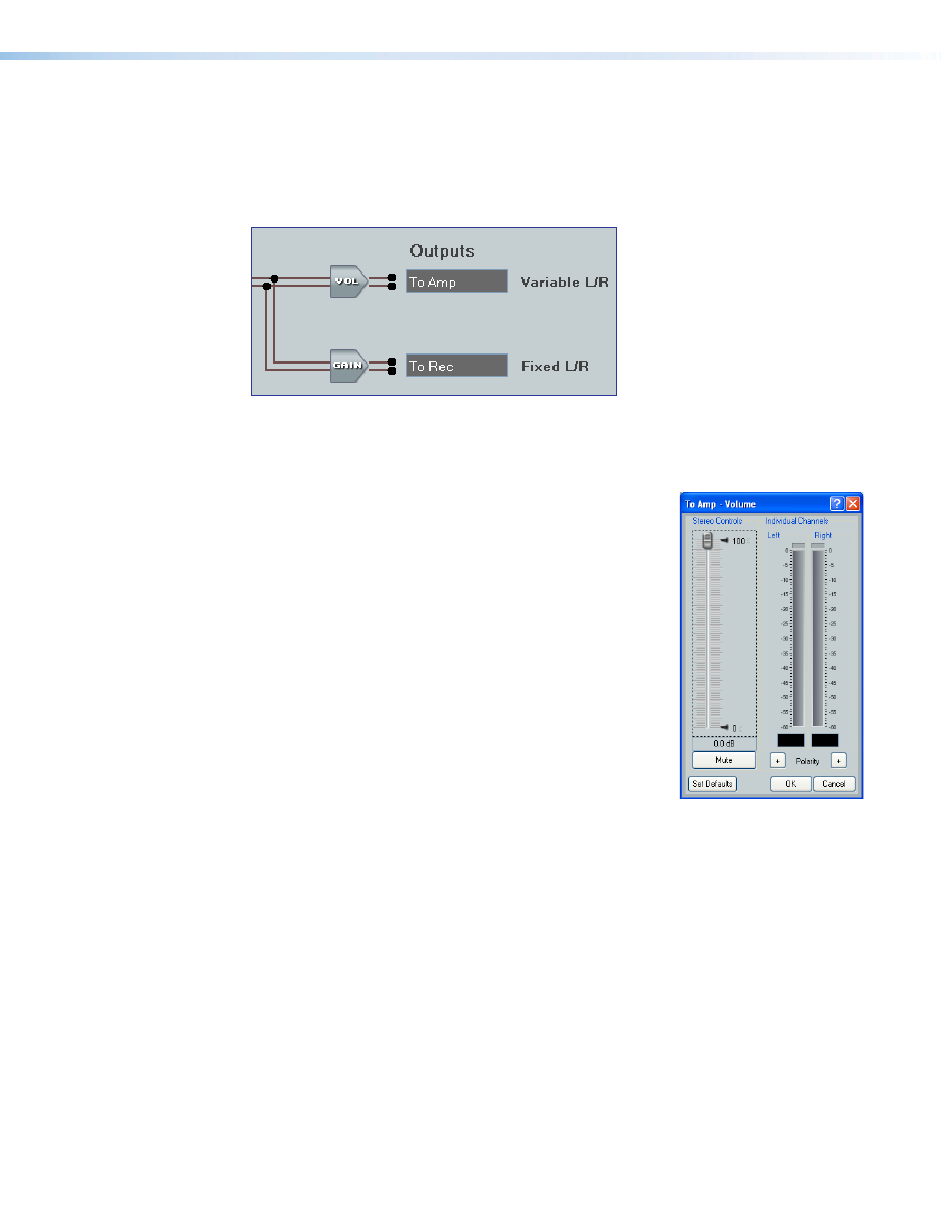

Figure 37. Output Channels

Volume

The Volume control block monitors and adjusts the
variable output from 0 dB to -100 dB with a step resolution
of 1 dB. The meters monitor the output level. The single
level control adjusts both the Left and Right output channels.
The Polarity buttons reverse the polarity of the respective
left and right output signal.
The OK button accepts settings and closes the dialog with a
single click, while the Cancel button ignores changes and
closes the dialog.
