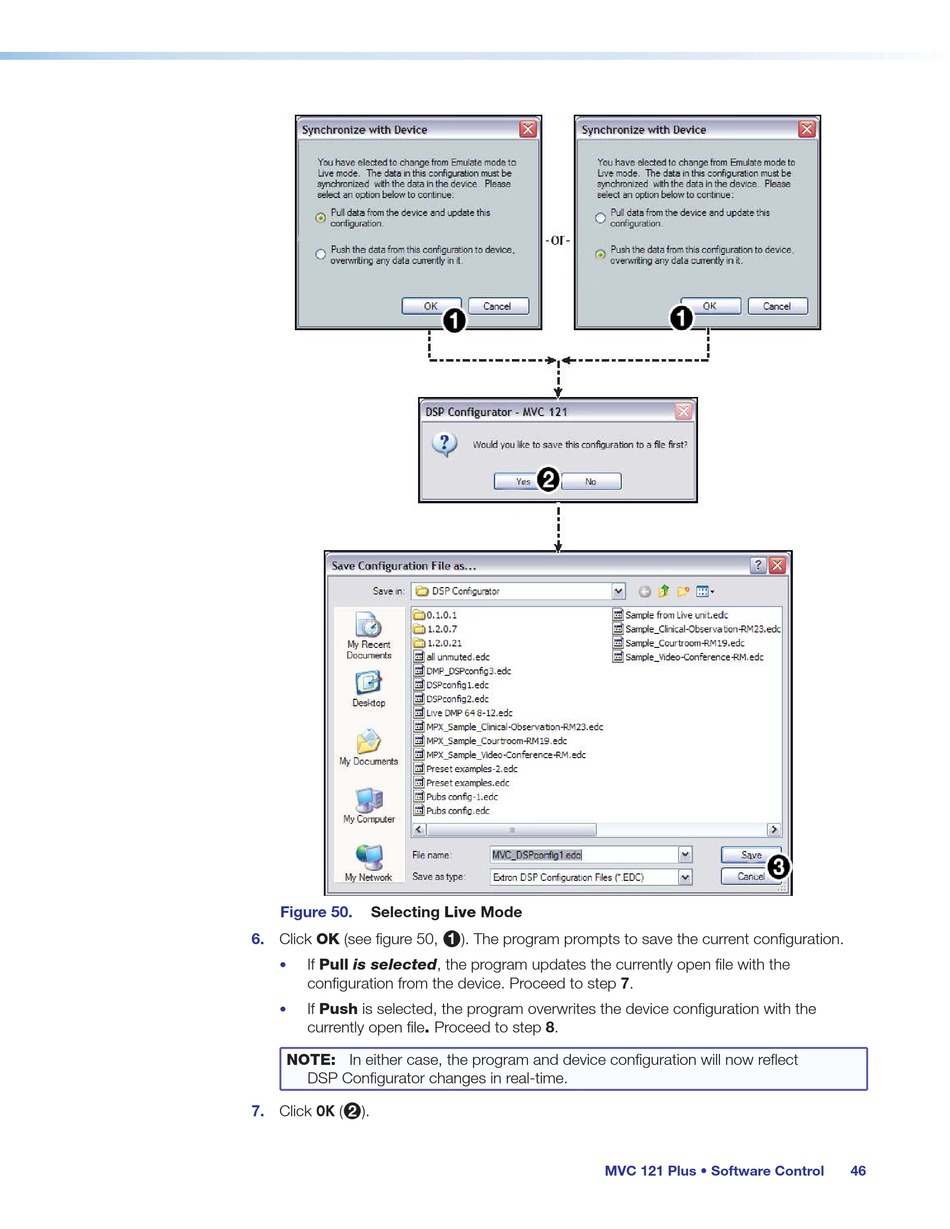

Figure 50. Selecting Live Mode
6. Click OK (see figure 50,
If Pull is selected, the program updates the currently open file with the
•
configuration from the device. Proceed to step 7.
If Push is selected, the program overwrites the device configuration with the
•
currently open file. Proceed to step 8.
NOTE: In either case, the program and device configuration will now reflect
DSP Configurator changes in real-time.
7. Click OK ( ).
2
). The program prompts to save the current configuration.
1
MVC 121 Plus • Software Control 46
