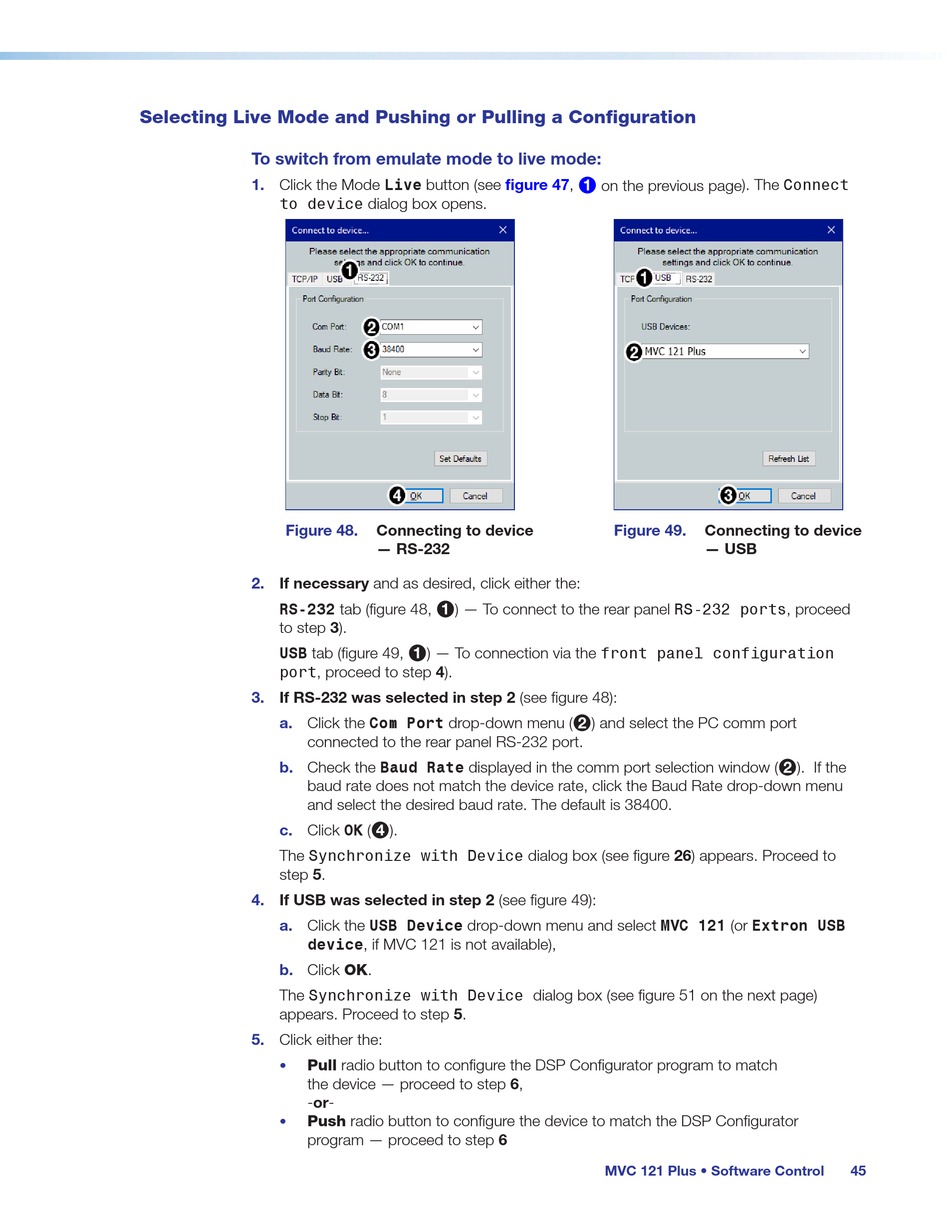

Selecting Live Mode and Pushing or Pulling a Configuration

To switch from emulate mode to live mode:
1. Click the Mode Live button (see figure 47,
to device dialog box opens.
Figure 48.
2. If necessary and as desired, click either the:
RS-232 tab (figure 48,
to step 3).
USB tab (figure 49,
port, proceed to step 4).
3. If RS-232 was selected in step 2 (see figure 48):
a. Click the Com Port drop-down menu (
connected to the rear panel RS-232 port.
b.
Check the Baud Rate displayed in the comm port selection window (
baud rate does not match the device rate, click the Baud Rate drop-down menu
and select the desired baud rate. The default is 38400.
c. Click OK (
The Synchronize with Device dialog box (see figure 26) appears. Proceed to
step 5.
4. If USB was selected in step 2 (see figure 49):
a. Click the USB Device drop-down menu and select MVC 121 (or Extron USB
device, if MVC 121 is not available),
b. Click OK.
The Synchronize with Device dialog box (see figure 51 on the next page)
appears. Proceed to step 5.
5. Click either the:
Pull radio button to configure the DSP Configurator program to match
•
the device — proceed to step 6,
-or-
Push radio button to configure the device to match the DSP Configurator
•
program — proceed to step 6
Connecting to device
— RS-232
) — To connect to the rear panel RS-232 ports, proceed
1
) — To connection via the front panel configuration
1
).
4
on the previous page ). The Connect
1
Figure 49. Connecting to device
— USB
) and select the PC comm port
2
MVC 121 Plus • Software Control
). If the
2
45
