USB OTG Capabilities of SmartFusion2
2.3

Demo Design

2.3.1

Introduction

The demo design files are available for download from the following path in the Microsemi website:
http://soc.microsemi.com/download/rsc/?f=m2s_dg0476_liberov11p7_df
The demo design files include:
• Libero
• USB drivers
• Stapl programming file
• Readme file

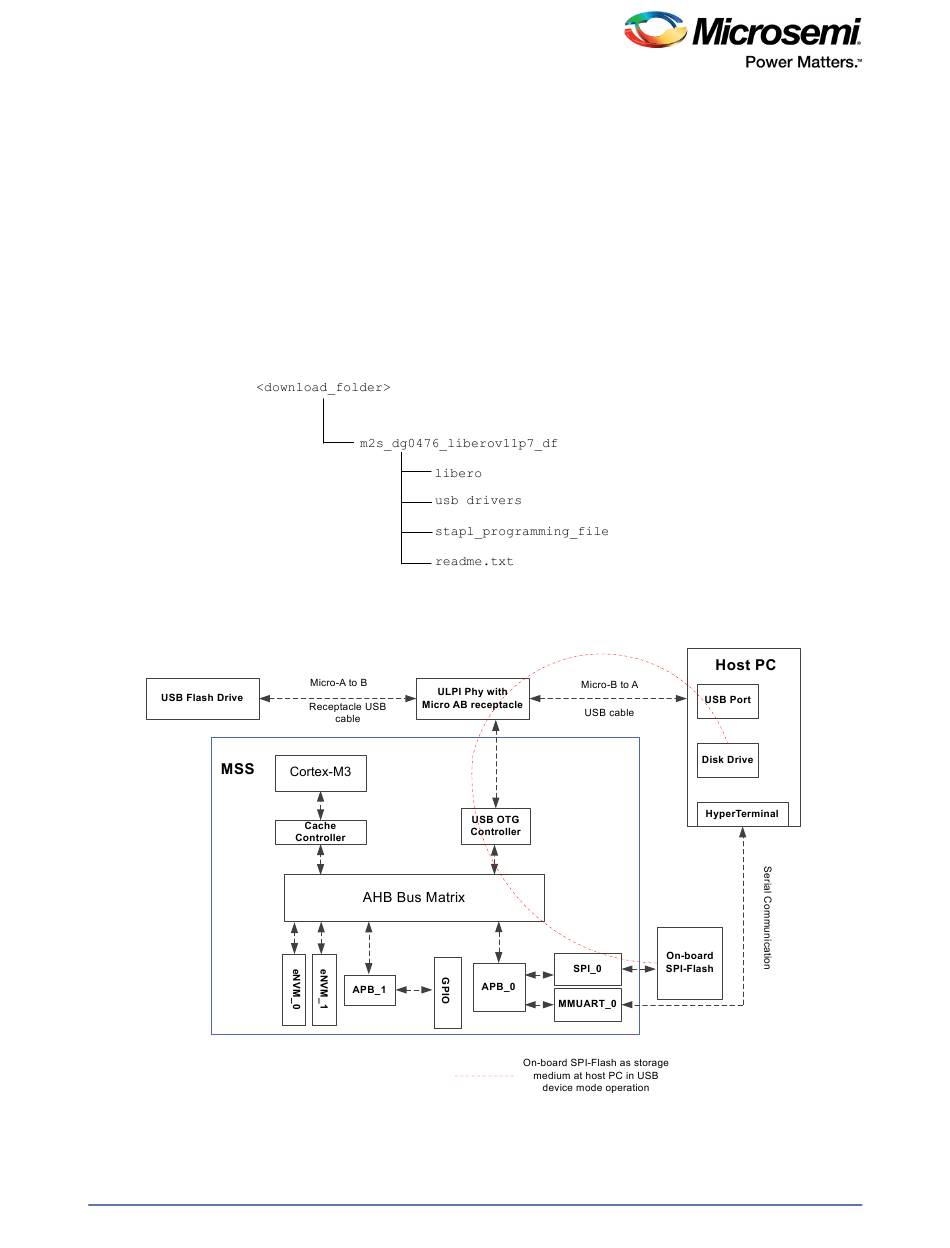

Figure 1 shows the top-level structure of the design files. For details, refer to the readme.txt file.
Figure 1 • Demo Design Files Top-Level Structure
Figure 2 shows the demo architecture.
Figure 2 • Top-Level Block Diagram
Note: MSS USB drivers are provided along with the design files. These drivers are customized and used in the
demo.
