USB OTG Capabilities of SmartFusion2
13. After successfully programming the SmartFusion2 device using FlashPro, the serial terminal
emulation program shows the initialization messages, as shown in
OTG controller is now set to perform the USB OTG functionality.

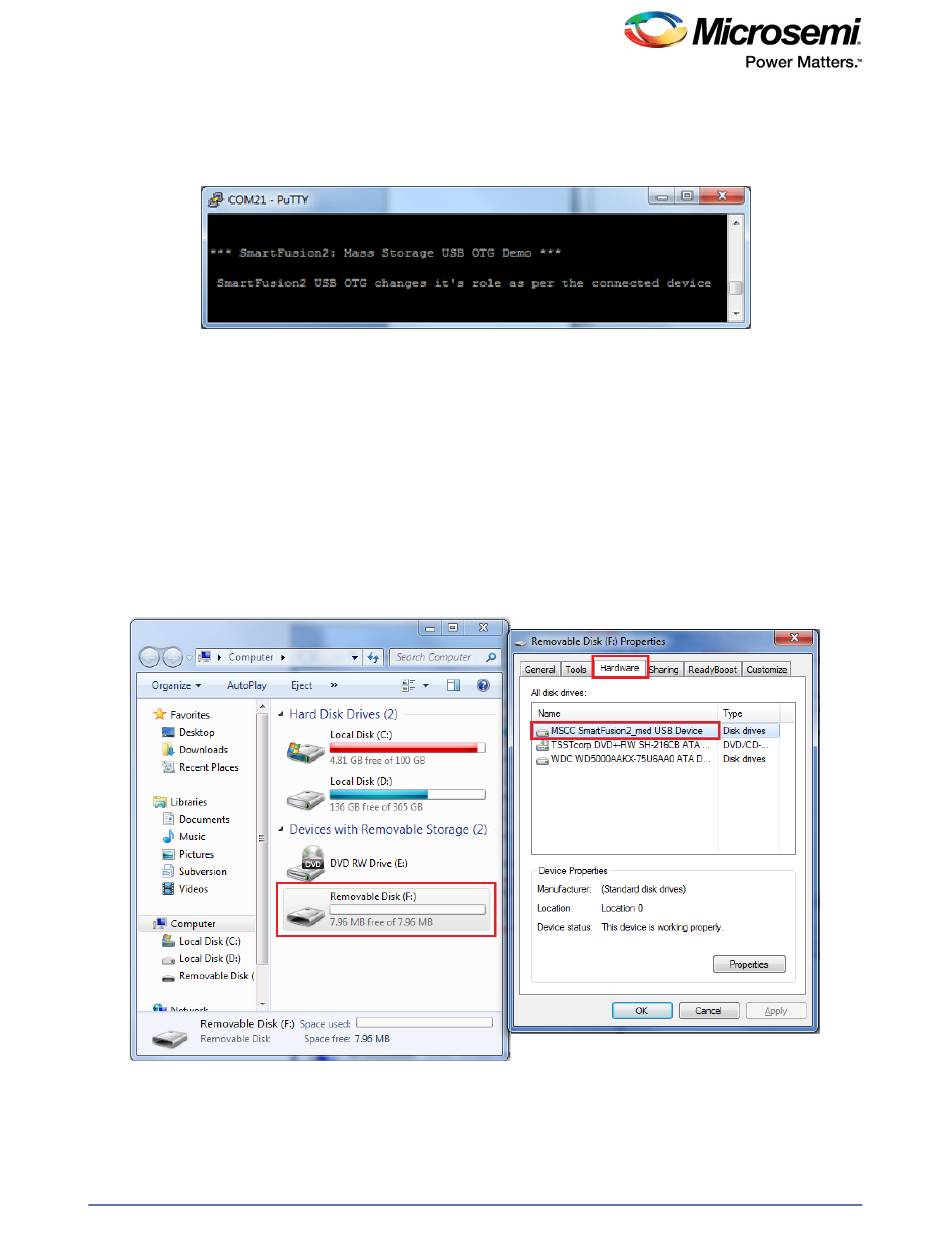

Figure 8 • UART Message
2.5.1 SmartFusion2 USB OTG Controller Acting as USB
Device
The following steps describe how to use the SmartFusion2 USB OTG Controller as a USB device:
1. Connect the host PC to the micro AB receptacle (P1 connector) on the SmartFusion2 Security
Evaluation Kit board using the Micro-B to A USB cable.
A new disk drive/volume is created in the host PC.
2. Right-click the drive and select properties, as shown in
functionality of the SmartFusion2 USB OTG controller.
Note: Format the disk drive when prompted by the host PC and ensure that there is no important data on the
SmartFusion2 Security Evaluation Kit on-board SPI-Flash.
Figure 9 • SmartFusion2 USB Device Detection on Host PC/Laptop
Figure 9
Revision 6
Figure 8. The SmartFusion2 USB
to verify the USB device
