USB OTG Capabilities of SmartFusion2
7. Click Browse and navigate to the location where you want to save the project.
8. Select Single device as the Programming mode.
9. Click OK to save the project.
10. Click Configure Device on the FlashPro GUI.
11. Click Browse and navigate to the location where the
the file. The default location is: <download_folder>stapl_programming_file. The required
programming file is selected and is ready to be programmed in the device.

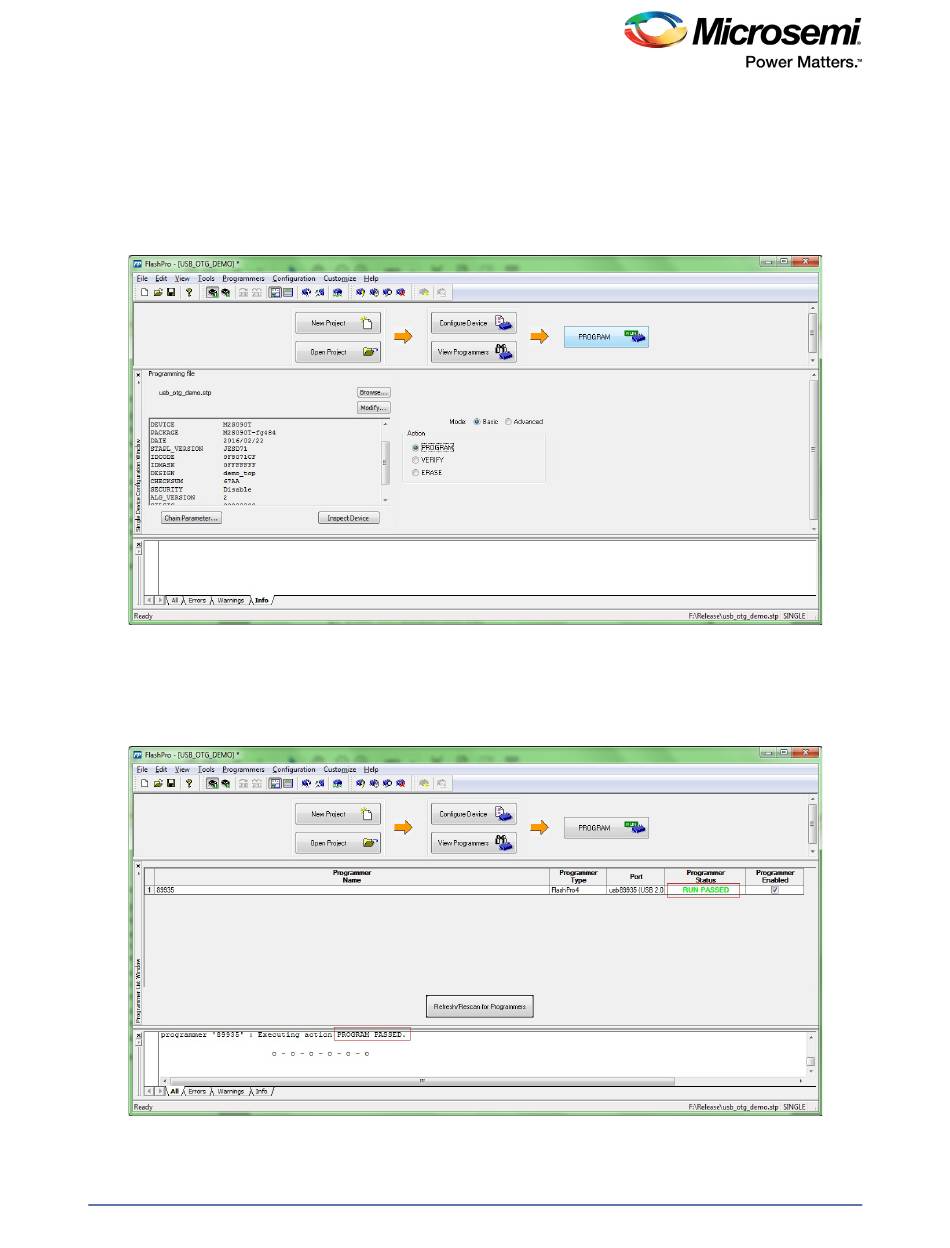

Figure 6 • FlashPro Project Configured
12. Click PROGRAM to start programming the device. Wait until a message is displayed indicating that
the program passed. This demo requires the SmartFusion2 device to be preprogrammed with the
application code to activate the USB OTG functionality. Therefore, the SmartFusion2 device is
preprogrammed with the usb_otg_demo.stp file using the FlashPro software.
Figure 7 • FlashPro Program Passed
usb_otg_demo.stp
Revision 6
file is located and select
