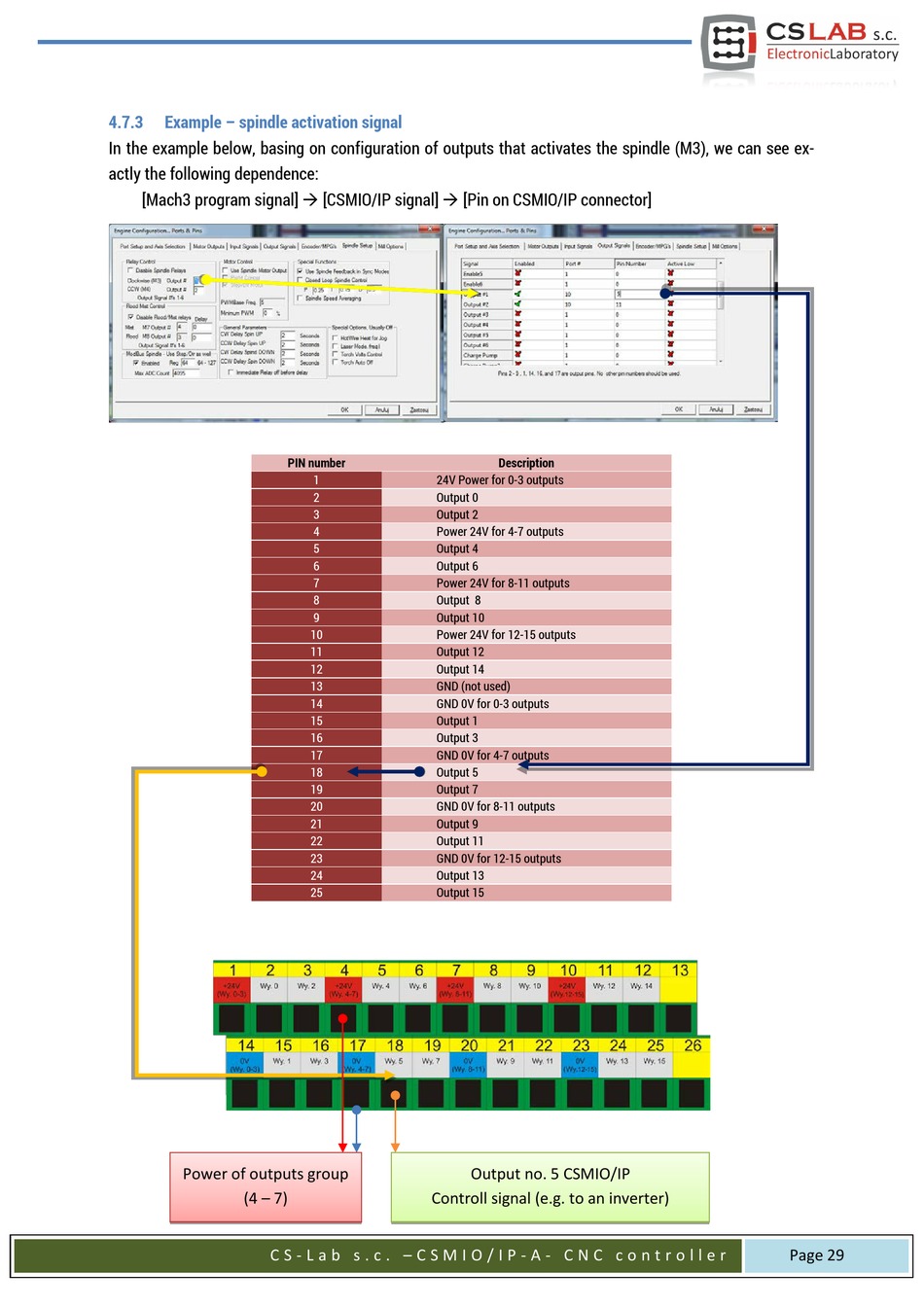

4.7.3 Example – spindle activation signal
In the example below, basing on configuration of outputs that activates the spindle (M3), we can see ex-
actly the following dependence:
[Mach3 program signal]  [CSMIO/IP signal]  [Pin on CSMIO/IP connector]
Power of outputs group
(4 – 7)
C S - L a b s . c . – C S M I O / I P - A - C N C c o n t r o l l e r
PIN number
1 24V Power for 0-3 outputs
2 Output 0
3 Output 2
4 Power 24V for 4-7 outputs
5 Output 4
6 Output 6
7 Power 24V for 8-11 outputs
8 Output 8
9 Output 10
10 Power 24V for 12-15 outputs
11 Output 12
12 Output 14
13 GND (not used)
14 GND 0V for 0-3 outputs
15 Output 1
16 Output 3
17 GND 0V for 4-7 outputs
18 Output 5
19 Output 7
20 GND 0V for 8-11 outputs
21 Output 9
22 Output 11
23 GND 0V for 12-15 outputs
24 Output 13
25 Output 15
Controll signal (e.g. to an inverter)
Description
Output no. 5 CSMIO/IP
Page 29
