4.13.4 Inverter connection using analog output.

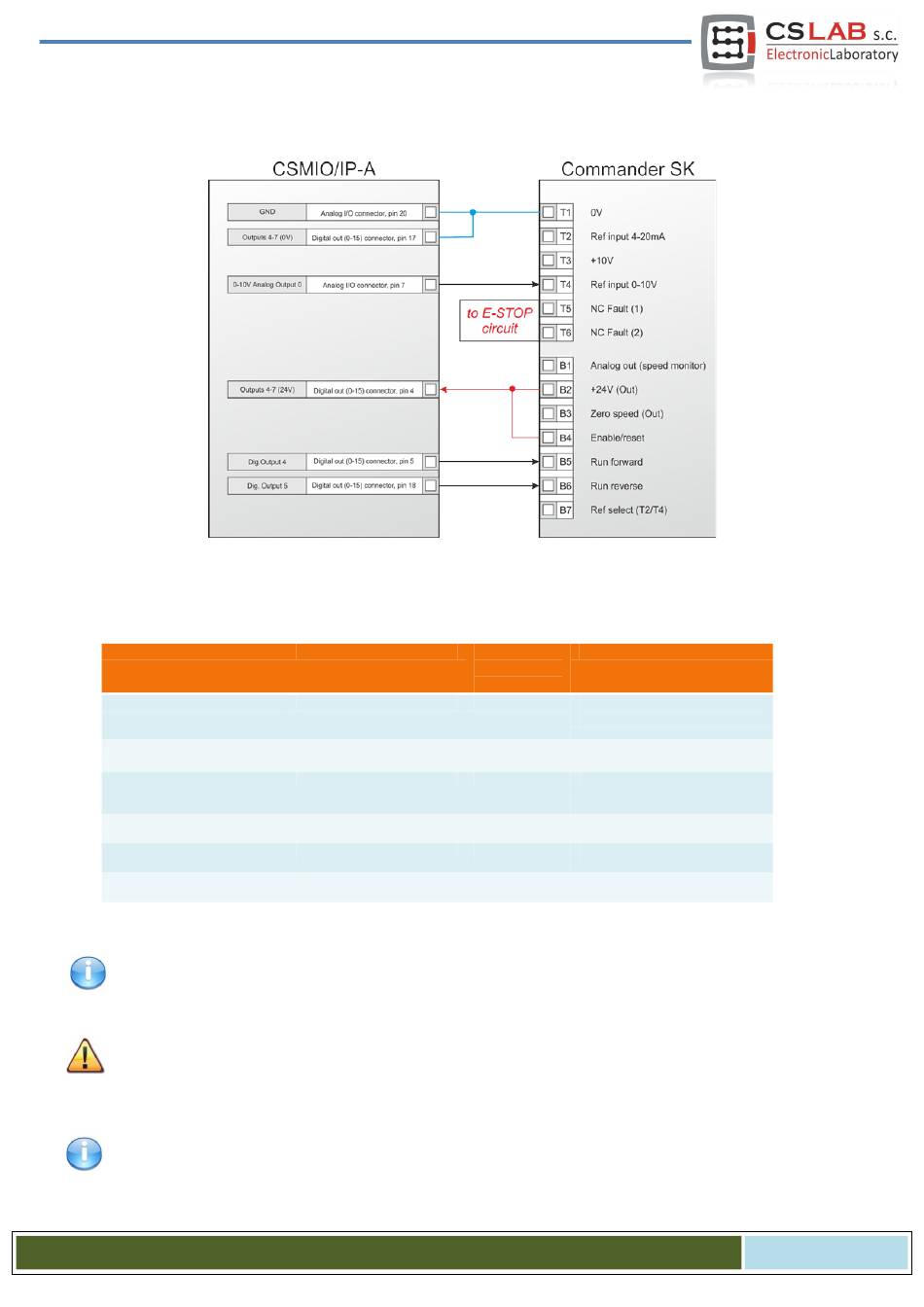

In the example above you can see connection of Commander SK for spindle support.
CSMIO/IP-A outputs in use:
CSMIO/IP-A signal
Analog GND connection
Analog output 0
CSMIO/IP digital outputs Power
GND
Outputs 4 and 5 power
Digital output 4
Digital output 5
Note that every group of CSMIO/IP-A digital outputs can work on a different potential. In this case we used
24V output of the inverter.
Do no forget to set the configuration parameters of the inverter properly. Incorrect settings may cause - in
the best case - the inverter error, in the worst - the spindle motor becomes permanently damaged (such
damage is not covered by warranty).
Mach3 program configuration, concerning use of a spindle with revs control was described in chapter 10 -
"Mach3 Configuration".
C S - L a b s . c . – C S M I O / I P - A - C N C c o n t r o l l e r
CSMIO/IP-A connector PIN number on u
DB25 – Analog I/O
DB25 – Analog I/O
DB25 – Digital outputs (0-15)
DB25 – Digital outputs (0-15)
DB25 – Digital outputs (0-15)
DB25 – Digital outputs (0-15)
Inverter function
CSMIO/IP-A
connector
20 AGND – reference potential for analog
input of speed command
7 Voltage input 0-10V of speed com-
mand
17
4 24V output for controlling signals
5 Right revs switching
18 Left revs switching
