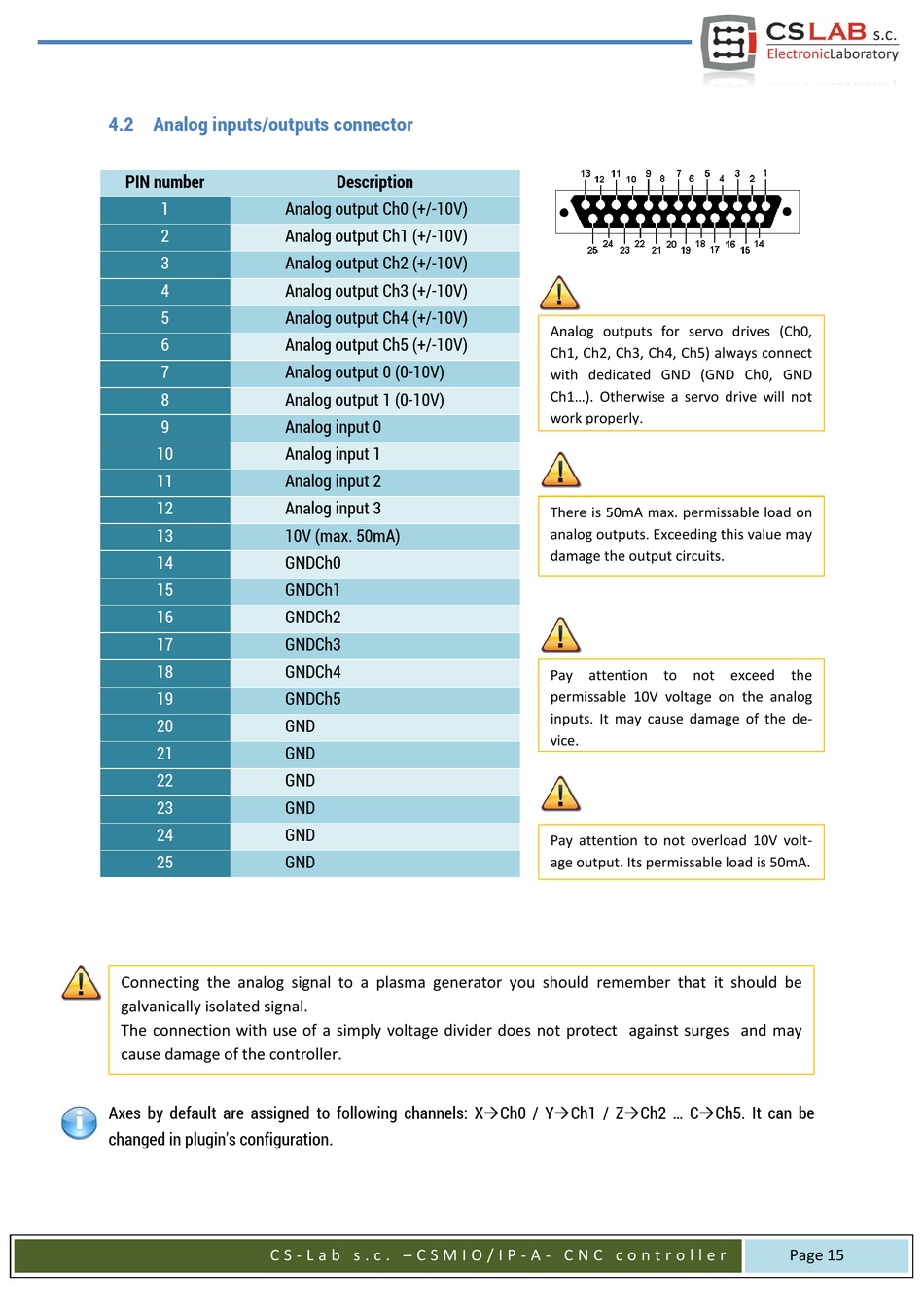

4.2 Analog inputs/outputs connector

PIN number
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
Connecting the analog signal to a plasma generator you should remember that it should be
galvanically isolated signal.
The connection with use of a simply voltage divider does not protect against surges and may
cause damage of the controller.
Axes by default are assigned to following channels: XCh0 / YCh1 / ZCh2 ... CCh5. It can be
changed in plugin's configuration.
C S - L a b s . c . – C S M I O / I P - A - C N C c o n t r o l l e r
Description
Analog output Ch0 (+/-10V)
Analog output Ch1 (+/-10V)
Analog output Ch2 (+/-10V)
Analog output Ch3 (+/-10V)
Analog output Ch4 (+/-10V)
Analog output Ch5 (+/-10V)
Analog output 0 (0-10V)
Analog output 1 (0-10V)
Analog input 0
Analog input 1
Analog input 2
Analog input 3
10V (max. 50mA)
GNDCh0
GNDCh1
GNDCh2
GNDCh3
GNDCh4
GNDCh5
GND
GND
GND
GND
GND
GND
Analog outputs for servo drives (Ch0,
Ch1, Ch2, Ch3, Ch4, Ch5) always connect
with dedicated GND (GND Ch0, GND
Ch1...). Otherwise a servo drive will not
work properly.
There is 50mA max. permissable load on
analog outputs. Exceeding this value may
damage the output circuits.
Pay attention to not exceed the
permissable 10V voltage on the analog
inputs. It may cause damage of the de-
vice.
Pay attention to not overload 10V volt-
age output. Its permissable load is 50mA.
