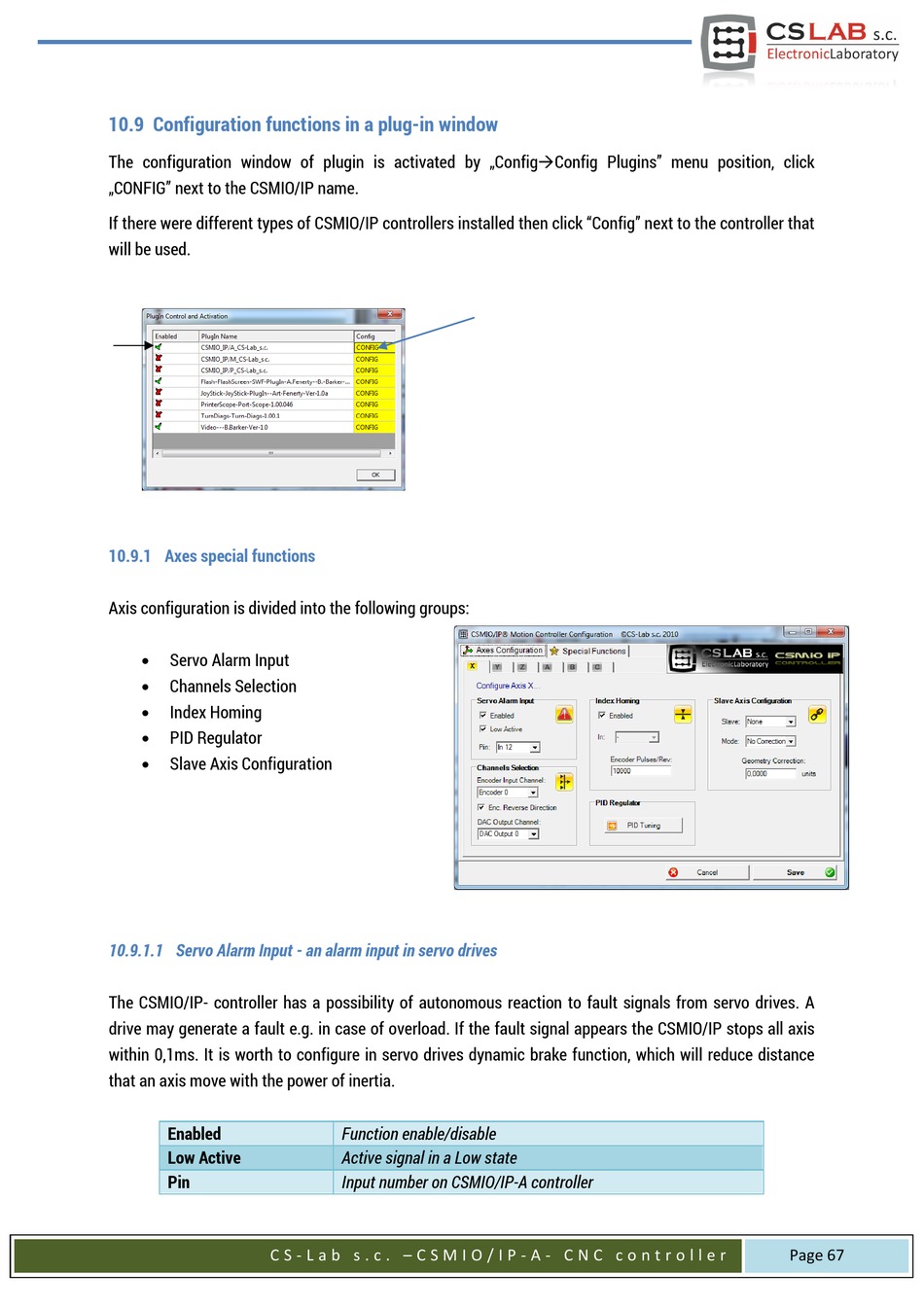

10.9 Configuration functions in a plug-in window

The configuration window of plugin is activated by „ConfigConfig Plugins" menu position, click
„CONFIG" next to the CSMIO/IP name.
If there were different types of CSMIO/IP controllers installed then click "Config" next to the controller that
will be used.

10.9.1 Axes special functions

Axis configuration is divided into the following groups:
Servo Alarm Input
•
Channels Selection
•
• Index Homing
PID Regulator
•
Slave Axis Configuration
•
10.9.1.1 Servo Alarm Input - an alarm input in servo drives
The CSMIO/IP- controller has a possibility of autonomous reaction to fault signals from servo drives. A
drive may generate a fault e.g. in case of overload. If the fault signal appears the CSMIO/IP stops all axis
within 0,1ms. It is worth to configure in servo drives dynamic brake function, which will reduce distance
that an axis move with the power of inertia.
Enabled
Low Active
Pin
C S - L a b s . c . – C S M I O / I P - A - C N C c o n t r o l l e r
Function enable/disable
Active signal in a Low state
Input number on CSMIO/IP-A controller
Page 67
