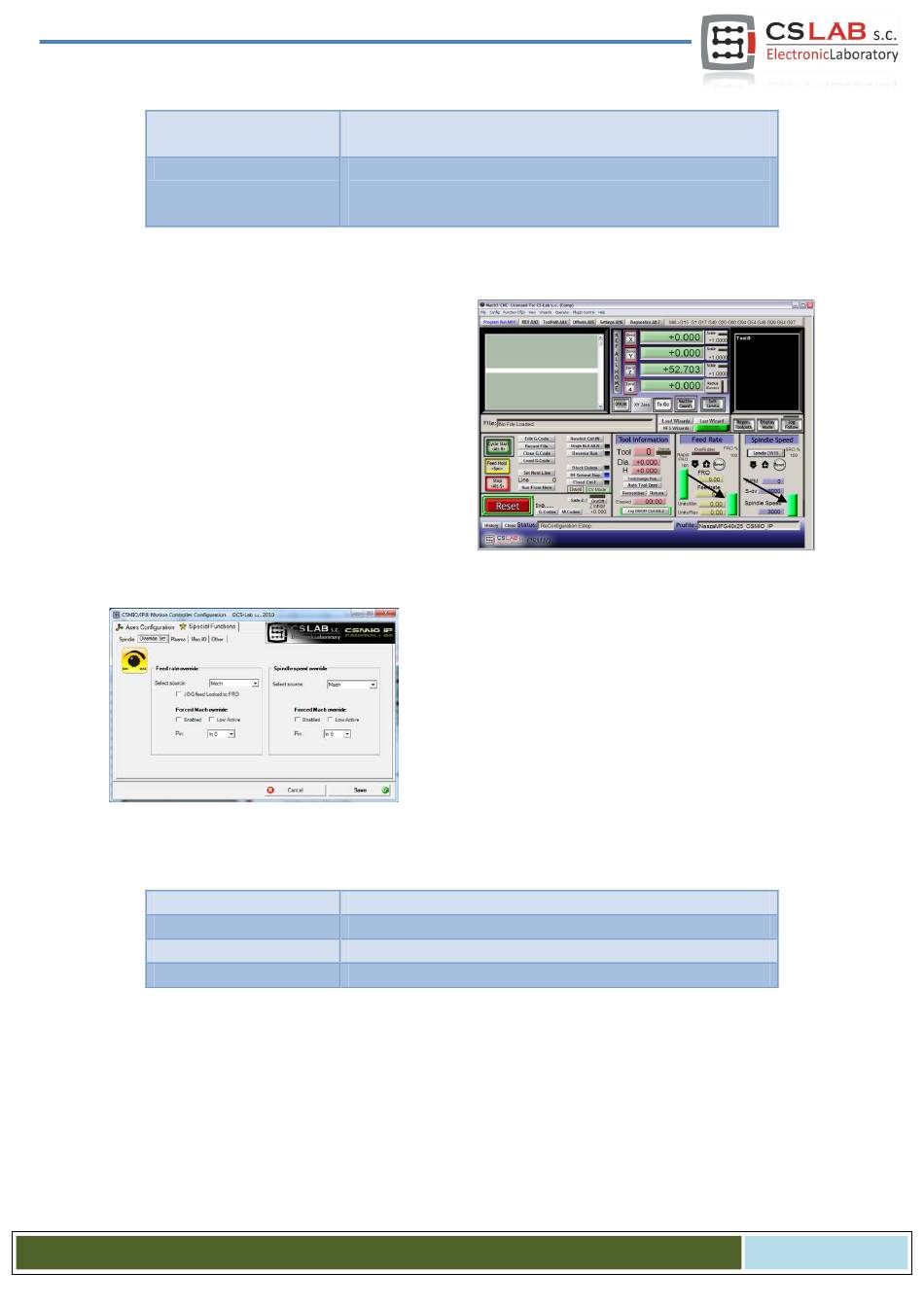

10.9.3 Override sources – feed speed and spindle revs corrections source selection
Mach3 software allows for feed speed and spindle
speed change during work. As a standard it's adjust-
ed using two sliders and a main screen. If machine
tool is equipped with additional panel with buttons it
would be easier to adjust the speed using knobs
placed on it. With CSMIO/IP-A we can also control
feed speed and spindle revs using potentiometers
connected to analog inputs.
.
The following options are available:
Mach
CSMIO/IP AIN 0/1/2/3
MPG AIN 0/1
MPG AXIS 4/5/6
For both feed speed and spindle revs speed control we can define digital input of CSMIO/IP, which will
force control from Mach3 screen – „Forced Mach override". Thanks to this you can easily and quickly
switch the source of speed defining– e.g. using a switcher placed on a machine's panel.
C S - L a b s . c . – C S M I O / I P - A - C N C c o n t r o l l e r
vates the function and below you can enter the angle for spindle
setting.
Configuration of pulses per spindle drive motor rev and accel-
eration. The acceleration value entered here is a time in which
the spindle gets max. revs (defined in Spindle Pulleys).
In „Override sources" tab you can set whether the speed
adjustment should be done through Mach3 screen, analog
inputs or additional MPG encoder axes, etc.
„Feed rate override" applies to feed speed and „Spindle
speed override" to spindle revs.
Regulation via PC (slider on a Mach's screen)
Analog inputs of CSMIO/IP controller
Analog inputs of CSMIO-MPG module
4, 5 or 6 axis of MPG encoder jog (pendant)
