Signals On A Terminal Block Connector; Example - Connection Of An Encoder To Ch0 Channel - CS-Lab CSMIO/IP-A Manual

4.3.1

Signals on a Terminal Block connector

4.3.2

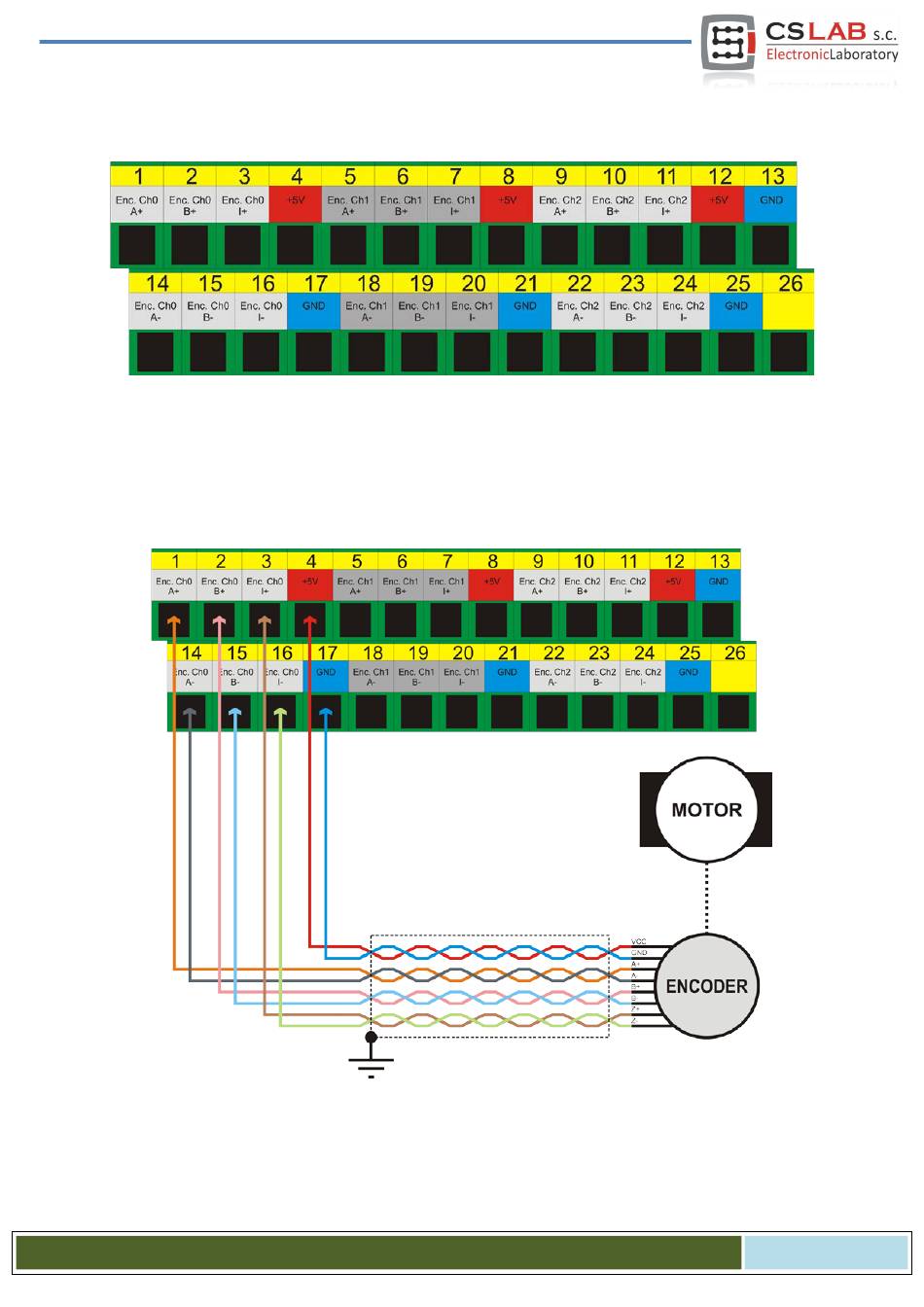

Example - connection of an encoder to Ch0 channel

As you can see below, although an encoder requires many wires, the rule is easy and the connection is not
that hard. However the connection should be done carefully to avoid any unpleasant surprises later.
