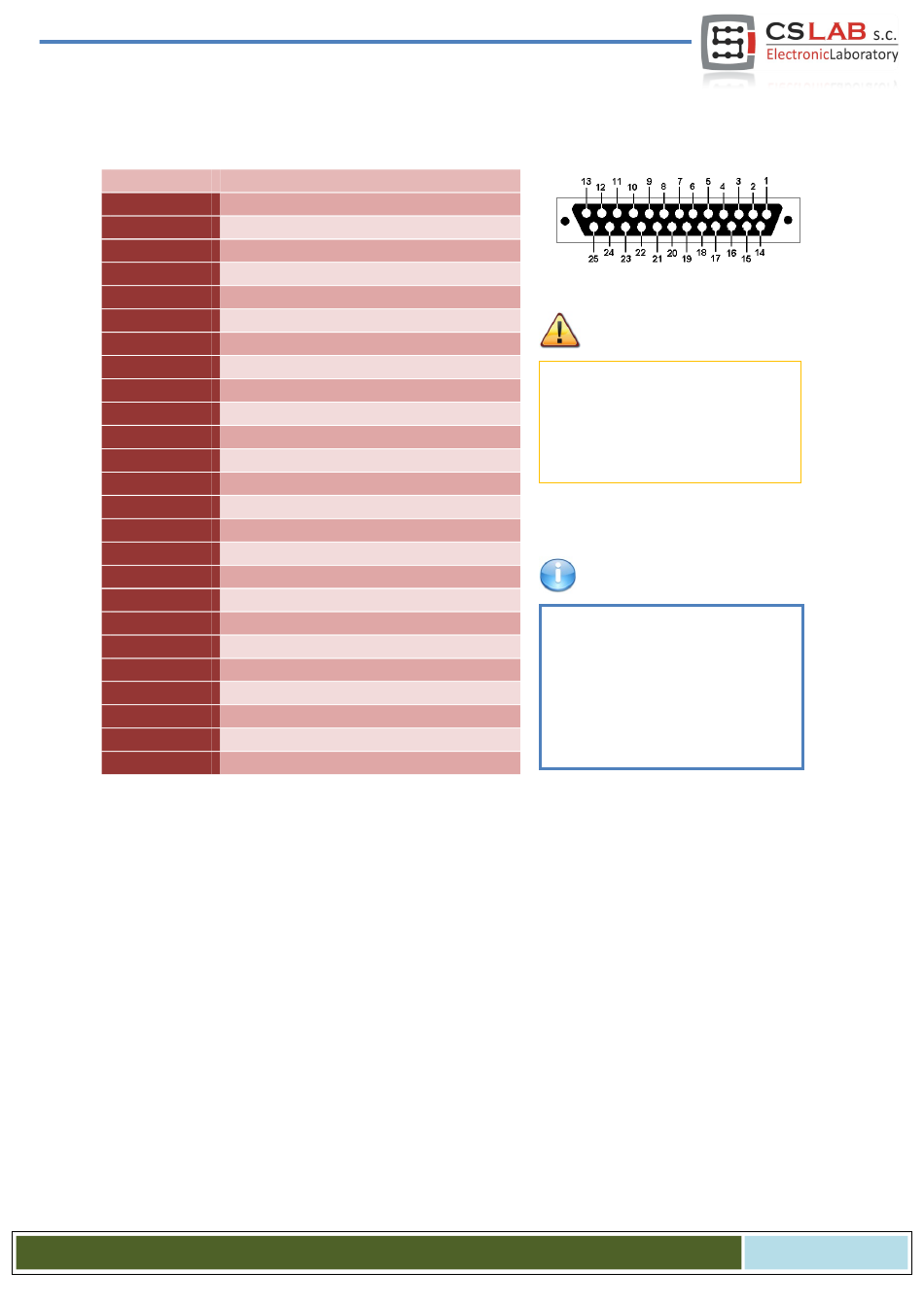

4.7 Digital outputs connector (0-15)

PIN number
1 24V power supply for outputs: 0-3
2 Output 0
3 Output 2
4 24V power supply for outputs:4-7
5 Output 4
6 Output 6
7 24V power supply for outputs: 8-11
8 Output 8
9 Output 10
10 24V power supply for outputs: 12-15
11 Output 12
12 Output 14
13 GND (not used)
14 0V GND for outputs: 0-3
15 Output 1
16 Output 3
17 0V GND for outputs: 4-7
18 Output 5
19 Output 7
20 0V GND for outputs: 8-11
21 Output 9
22 Output 11
23 0V GND for outputs: 12-15
24 Output 13
25 Output 15
C S - L a b s . c . – C S M I O / I P - A - C N C c o n t r o l l e r
Description
The outputs have 250mA load. You
must also pay attention to large in-
ductances if connected it is recom-
mended to use additional surge led,
preferablu as close to a coil.
In „Port&Pins" configuration
Mach3 program the value in „Pin"
column does not mean a pin number
on CSMIO/IP connector but output
number.
Oz
So typing „9" mean output 9, and so
Pin 21 on CSMIO/IP connector.
of
Page 27
