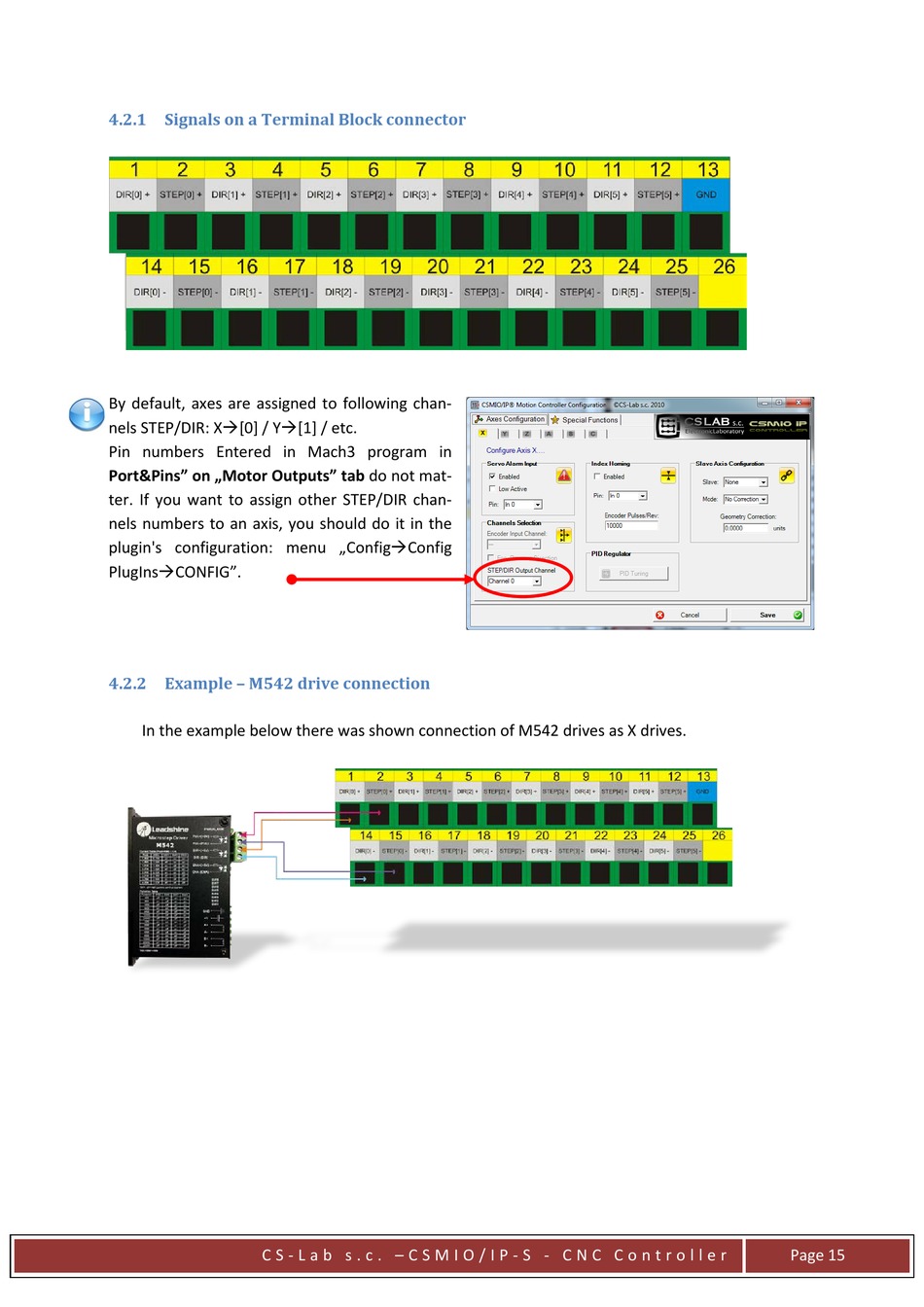

4.2.1 Signals on a Terminal Block connector

By default, axes are assigned to following chan-
nels STEP/DIR: X[0] / Y[1] / etc.
Pin numbers Entered in Mach3 program in
Port&Pins" on „Motor Outputs" tab do not mat-
ter. If you want to assign other STEP/DIR chan-
nels numbers to an axis, you should do it in the
plugin's configuration: menu „ConfigConfig
PlugInsCONFIG".
4.2.2 Example – M542 drive connection
In the example below there was shown connection of M542 drives as X drives.
C S - L a b s . c . – C S M I O / I P - S - C N C C o n t r o l l e r Page 15
