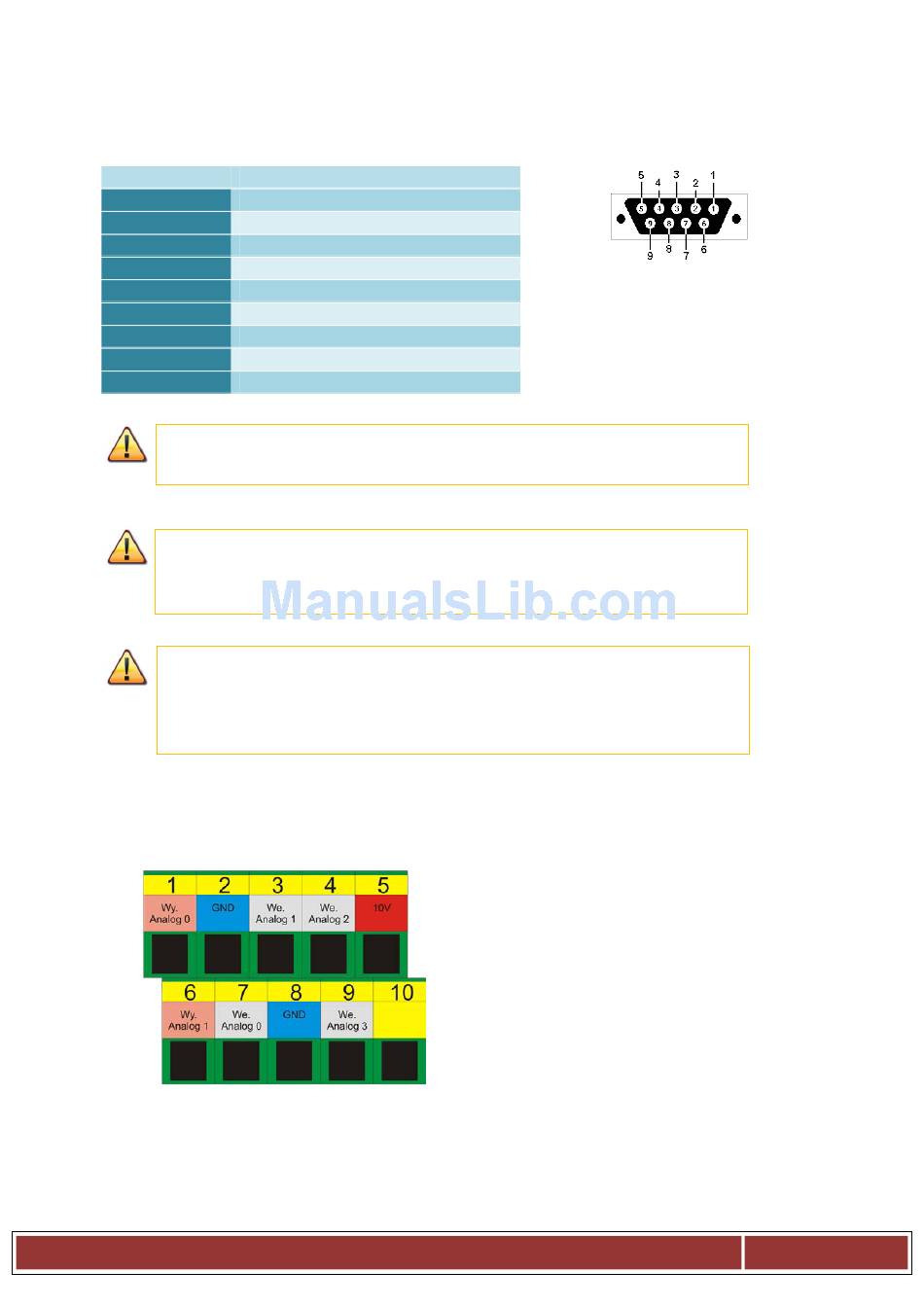

4.6 Analog inputs/outputs connector

PIN number
1
2
3
4
5
6
7
8
9
Pay special attention to not exceed the permissible voltage (10VDC) on the inputs
lines. It may cause damage of the device.
10V output has 50mA load and serves only to supply the potentiometers, if you
want to connect the potentiometers, such as regulation of feed rate or spindle
speed correction.
Connecting analog signal from plasma generator you must remember that it
should be galvanically isolated signal!
Connecting with use of simply voltage divider do not protect against surges and
may cause controller damage.
4.6.1 Signals on a Terminal Block connector
C S - L a b s . c . – C S M I O / I P - S - C N C C o n t r o l l e r
Details
Analog output 0
GND
Analog input 1
Analog input 2
10V (max. 50mA)
Analog output 1
Analog input 0
GND
Analog input 3
