6. Monitoring communication

This section describes the communication connection of inverter and the inverter's monitoring system (computers,
mobile devices etc). The standard communication mode of AEG AS-IC01 and AS-IC01-2 series of grid-tied solar invert-
ers is RS485. The RS485 port can communicate with computers and mobile devices.
The monitoring system is sketched in figure 31.

6.1 Standard communication

WiFi is the standard communication mode for AS-IC01-2.
Pins on inverter
Pin on inverter
1
2
3
4
PD201808 AEG GRID-TIED THREE-PHASE SOLAR INVERTER (12-30 kW) V.2-18 EN

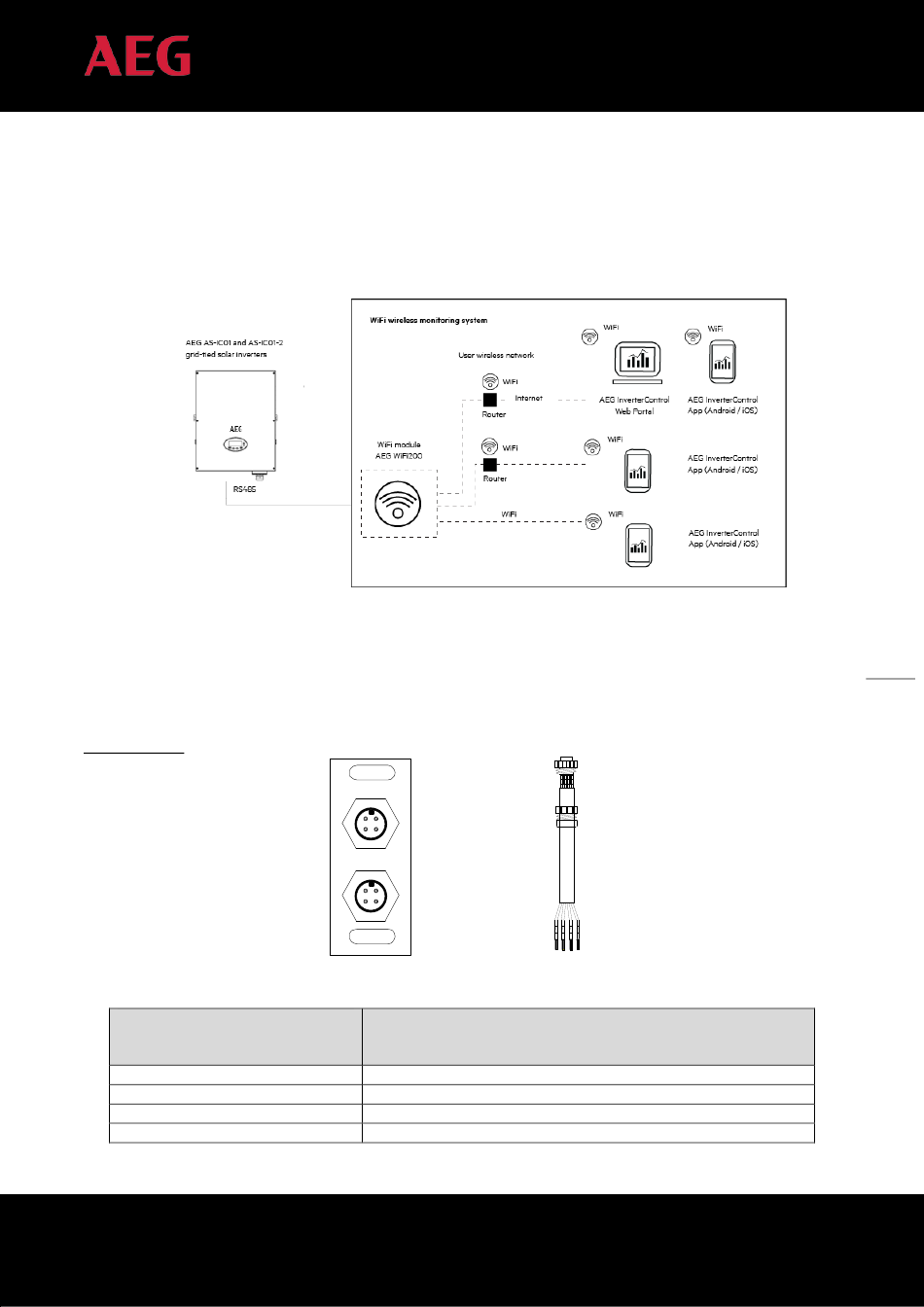

Figure 31: Inverter monitoring system
RS485
4
1
2
3
4
1
2
3
EXT
Figure 32A RS485 pin on inverter
Definition
+5VDC
A (RS485+)
B (RS485-)
GND
Table 22: Pins on inverter detail
4
3
2
1
Figure 32B: Communicator connector
