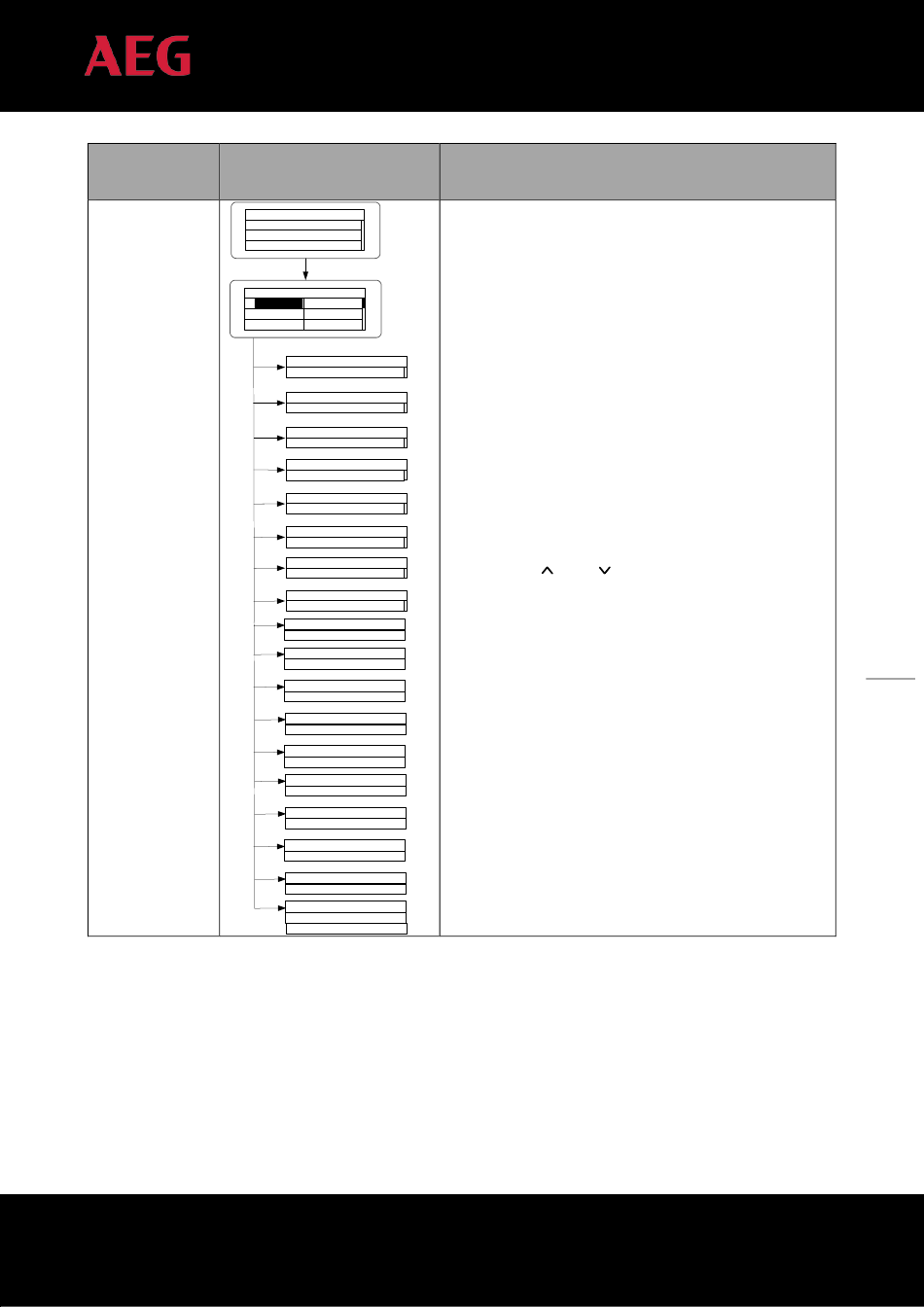

Setting item
Run Param
PD201808 AEG GRID-TIED THREE-PHASE SOLAR INVERTER (12-30 kW) V.2-18 EN
LCD display
Input Password
0000
Run Param
UV volt 1
OV time 1
UV time 1
UF Freq 1
OV volt 1
UF time 1
ACUV Volt(phase volt)
115V
ACUV Time
00.04s
ACOV Volt(phase volt)
309V
ACOV Time
00.02s
ACUF Frequency
47.99Hz
ACUF Time
00.12s
ACOF Frequency
50.50hz
ACOF Time
00.12s
ACUV Volt(phase volt)
196V
ACUV Time
0.19s
ACOV Volt(phase volt)
252V
ACOV Time
01.90s
ACUF Frequency
49.49Hz
ACUF Time
595s
ACOF Frequency
50.2Hz
ACOF Time
115s
Run Restart Time
060s
Island protect:on
OFF
ON
Table 18: Parameter settings
Instruction
There are 2 protections under G83/G59 (UK) and PEA
(Thailand) standards, and there is only one protection un-
der other grid tied standards.
Set ACUV Volt, ACUV time etc. under the related sub-
menus, press " " and " " to modify, and press "ENT" to
confirm.
Generally, it is only necessary to set ACUV and ACUF value
for ACUV and ACUF protection. It is necessary to set
ACOF1 and ACOF2 together for ACOF protection.
