37

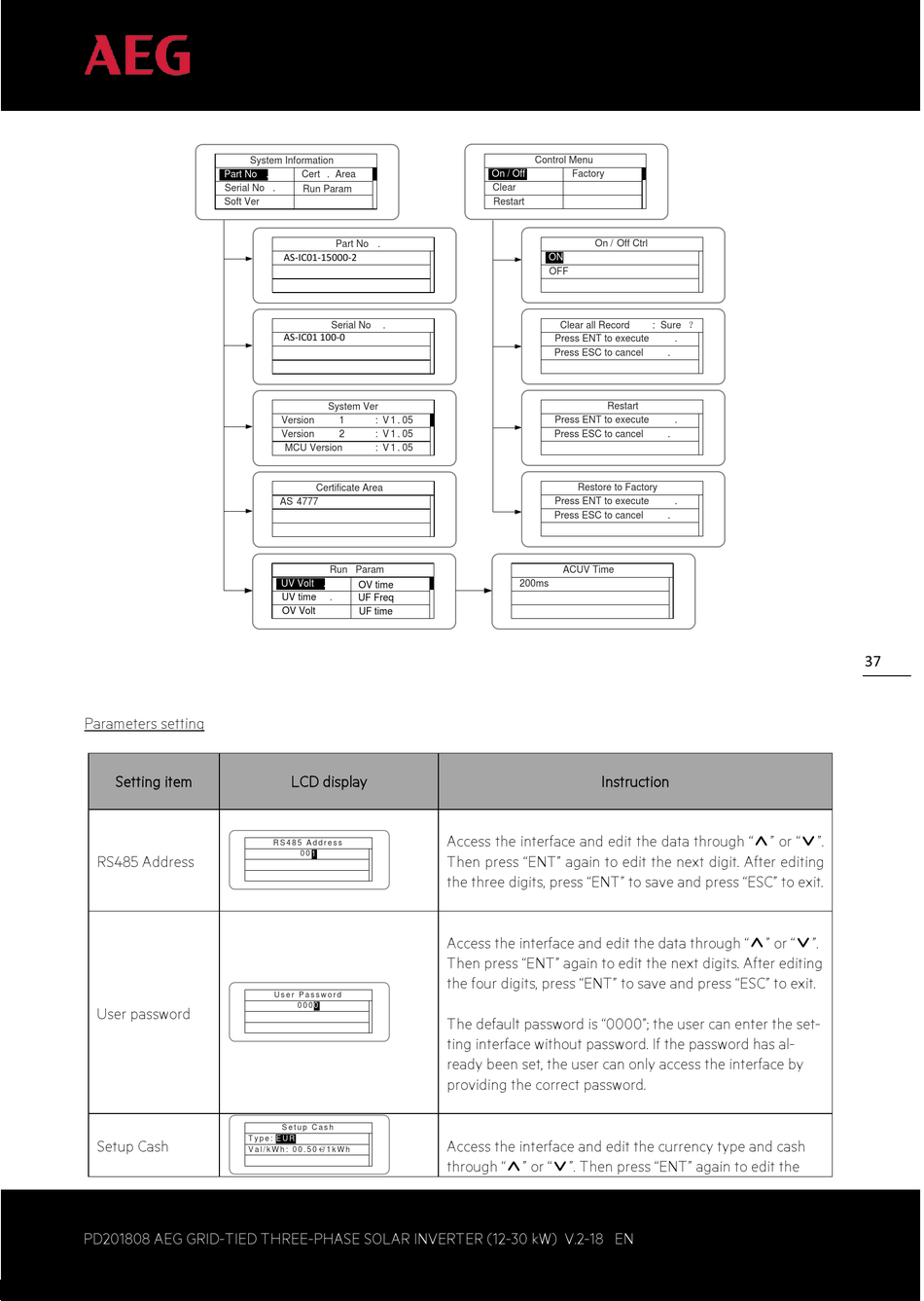

Parameters setting
Setting item
RS485 Address
User password
Setup Cash
PD201808 AEG GRID-TIED THREE-PHASE SOLAR INVERTER (12-30 kW) V.2-18 EN
System Information
Part No .
Cert . Area
Serial No .
Run Param
Soft Ver
Part No .
AS-IC01-15000-2
iMars BG
5 KTL
Serial No
.
AS-IC01 100-0
BGTL 100 - 00
System Ver
Version
1
: V 1 . 05
Version
2
: V 1 . 05
MCU Version
: V 1 . 05
Certificate Area
AS 4777
Run Param
UV Volt .
OV time
UV time
.
UF Freq
OV Volt
UF time
LCD display
R S 4 8 5 A d d r e s s
0 0 1
1
U s e r P a s s w o r d
0 0 0 0
0
S e t u p C a s h
T y p e : E U R
E U R
V a l / k W h : 0 0 . 5 0 € / 1 k W h
Control Menu
On / Off
Factory
Clear
Restart
On / Off Ctrl
ON
OFF
Clear all Record
Press ENT to execute
Press ESC to cancel
Restart
Press ENT to execute
Press ESC to cancel
Restore to Factory
Press ENT to execute
Press ESC to cancel
ACUV Time
200ms
Instruction
Access the interface and edit the data through " " or " ".
Then press "ENT" again to edit the next digit. After editing
the three digits, press "ENT" to save and press "ESC" to exit.
Access the interface and edit the data through " " or " ".
Then press "ENT" again to edit the next digits. After editing
the four digits, press "ENT" to save and press "ESC" to exit.
The default password is "0000"; the user can enter the set-
ting interface without password. If the password has al-
ready been set, the user can only access the interface by
providing the correct password.
Access the interface and edit the currency type and cash
through " " or " ". Then press "ENT" again to edit the
: Sure ?
.
.
.
.
.
.
