22
3.

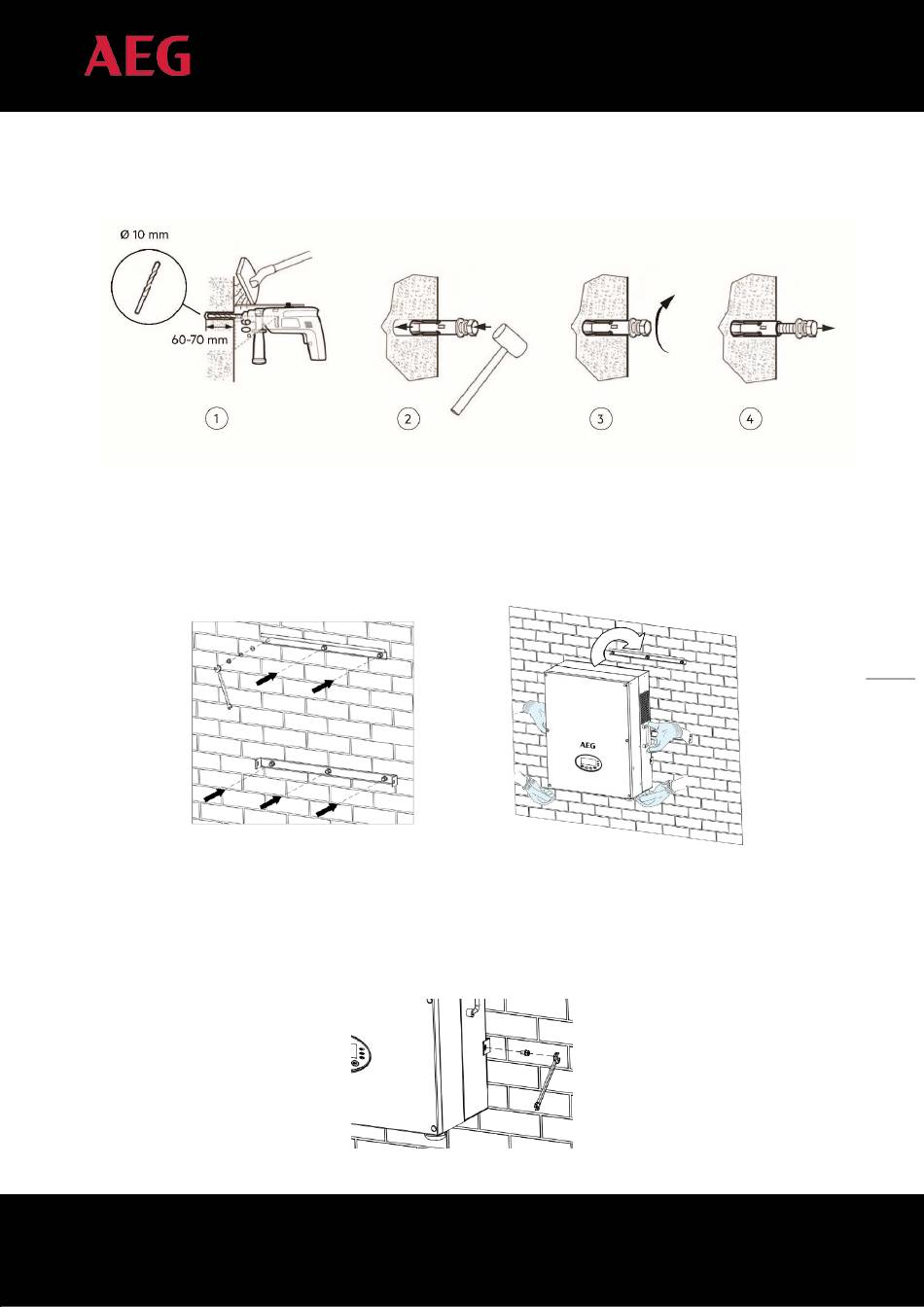

Fix the expansion bolts to the 6 installation holes with a hammer as shown below:
4. Fix the installation brackets to the expansion bolts and ensure the installation is firm enough (tightening
torque: 13 N•m).
5.
Hang the inverter to the installation bracket and ensure the installation is firm enough.
Figure 11D: Fixing the installation brackets
6. Ensure that the inverter is installed properly and tighten the M6 x 16 bolts into the screw holes on the left and
right side of the inverter (tightening torque: 4 N•m) as shown below.
PD201808 AEG GRID-TIED THREE-PHASE SOLAR INVERTER (12-30 kW) V.2-18 EN
Figure 11C: Fixing the expansion bolts
Figure 11E: Inverter installation
Figure 11F: Installation of M6 x 16 bolts
22
