Wiring Diagram - Directed DS4+ Installation Manual

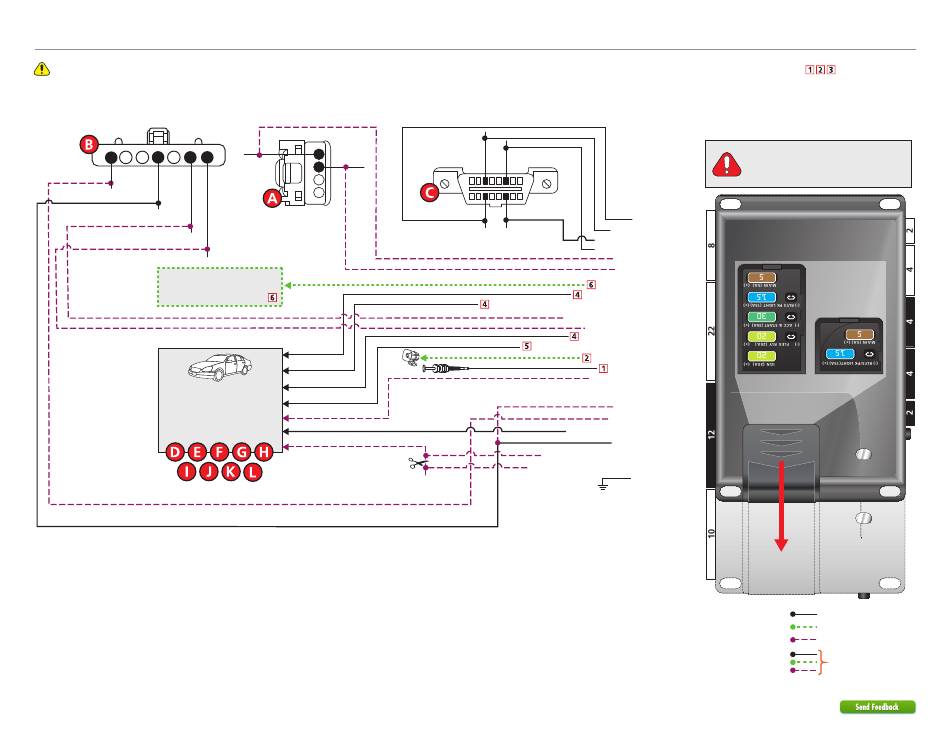

Wiring diagram

Refer to "Pre-installation and application warnings" for important information, such as the description of each special note referenced in the diagram (
Ignition Switch
(black connector at ignition switch)
1 2 3 4 5 6 7
(+) Ignition: Pin 1
(+) 12V: Pin 4
(+) Accessory: Pin 6
(+) Starter: Pin 7
Refer to the Starter disable
connection section for relay
and connection details.
Refer to the Vehicle
connections section for wire
and connector details related
to the standard connections
in the vehicle.
7 933.FORD6 3.20.193 2010 Mercury Mariner
© 2019-01-18 Directed. All rights reserved.
P.A.T.S. - 4-pin
(at ignition switch)
4
MS CAN High: Pin 3
TX: Pin 3
RX: Pin 4
3
2
1
MS CAN Low: Pin 11
Siren
Hood Pin
Driver Door Trigger
OBDII Diagnostic
(connector side view)
HS CAN High: Pin 6
1 8
9 16
HS CAN Low: Pin 14
HS CAN Low: Orange/Brown: 3
HS CAN High: Orange/Green: 4
(-) GWA Output: Blue/White: 2
(-) Lock Output: Dk. Green/Black: 3
(-) Trunk/Hatch Release / Power Liftgate Output: Red/White: 4
(+) Accessory/Keysense Output: White: 7
(+) Starter Output: Violet/Black: 8
(-) Unlock Output: Dk. Blue/Black: 9
(-) Factory Alarm Disarm Output: Lt.Blue/Black: 10
(+) Siren Output: Brown/Red: 11
(-) Hood Pin Input: Gray: 21
(AC) Tach Input: Violet/White: 22
(+) Ignition Output: Blue: 3
(+) Parking Light Output: White: 5 & 11
RAP Off Interrupt (connector side): Lt. Green: 8
Cut
RAP Off Interrupt (vehicle side): Lt. Green/White: 9
It is IMPORTANT to check that
the fuses are positioned
correctly.
MS CAN Low: Tan: 1
MS CAN High: Tan/Black: 2
Data RX: Orange/Black: 7
Data TX: Yellow/Black: 8
DS4+
Proper Fuse
(+) 12V Input: Blue/Red: 2
Positioning
(+) 12V Input: Red: 6 & 12
(-) Ground: Black: 10
Slide
to open
