Optional Starter Disable Connection - Directed DS4+ Installation Manual

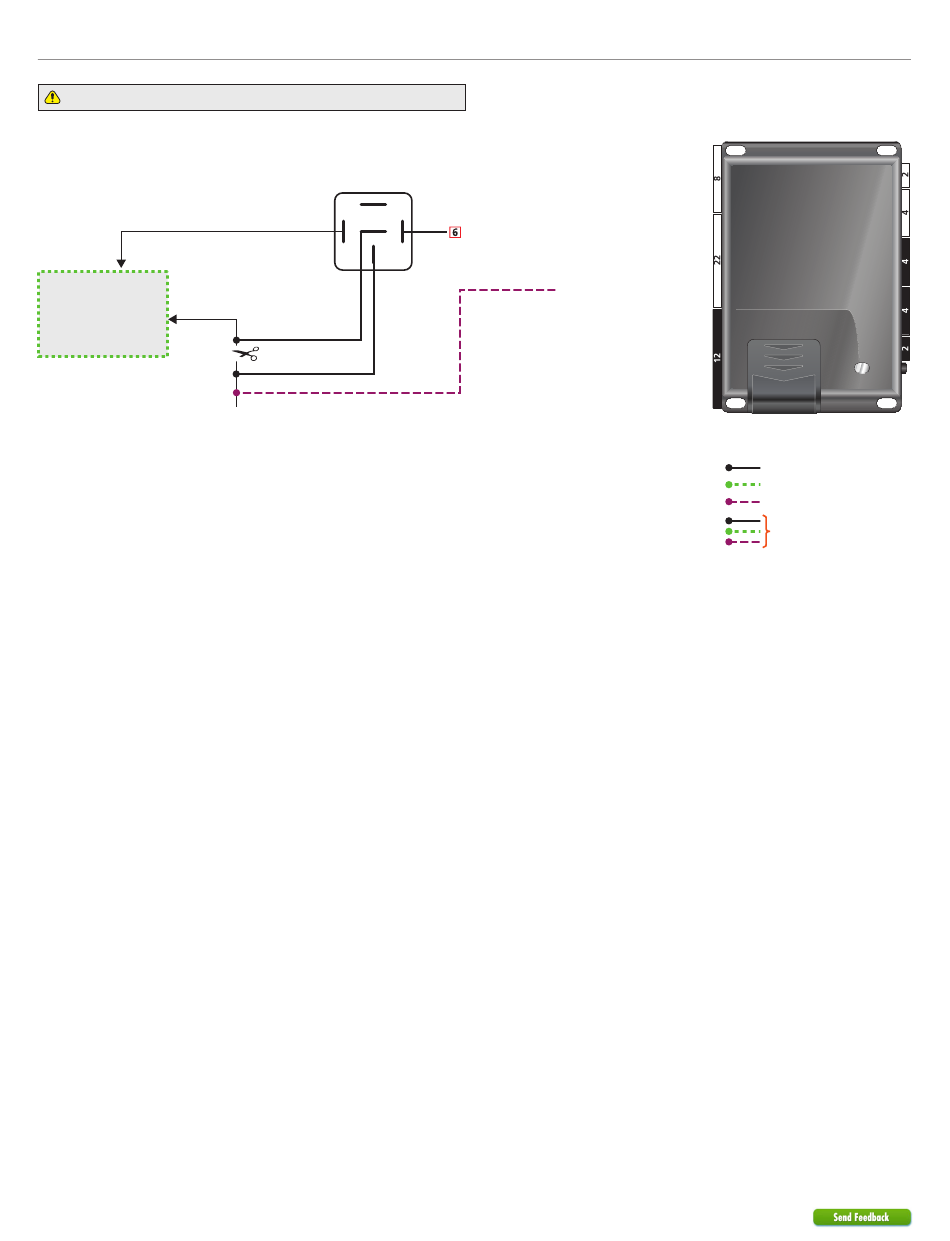

Optional starter disable connection

This connection is NOT required when using a THFON1 T-Harness.
Refer to the
Vehicle connections
section for wire
and connector
details.
10
933.FORD6 3.20.193 2010 Mercury Mariner
© 2019-01-18 Directed. All rights reserved.
87
(+) Ignition
87a
86
30
Starter (connector side)
Cut
Starter (vehicle side)
(-) Ground When Armed (GWA) Output: Blue/White: 2
85
(-) Starter Output: Violet/Black: 8
Legend:
Mandatory Connections
Security Only
Remote Start Only
Remote Start + Security
