4. Click
message box appears.
5. Click Yes.

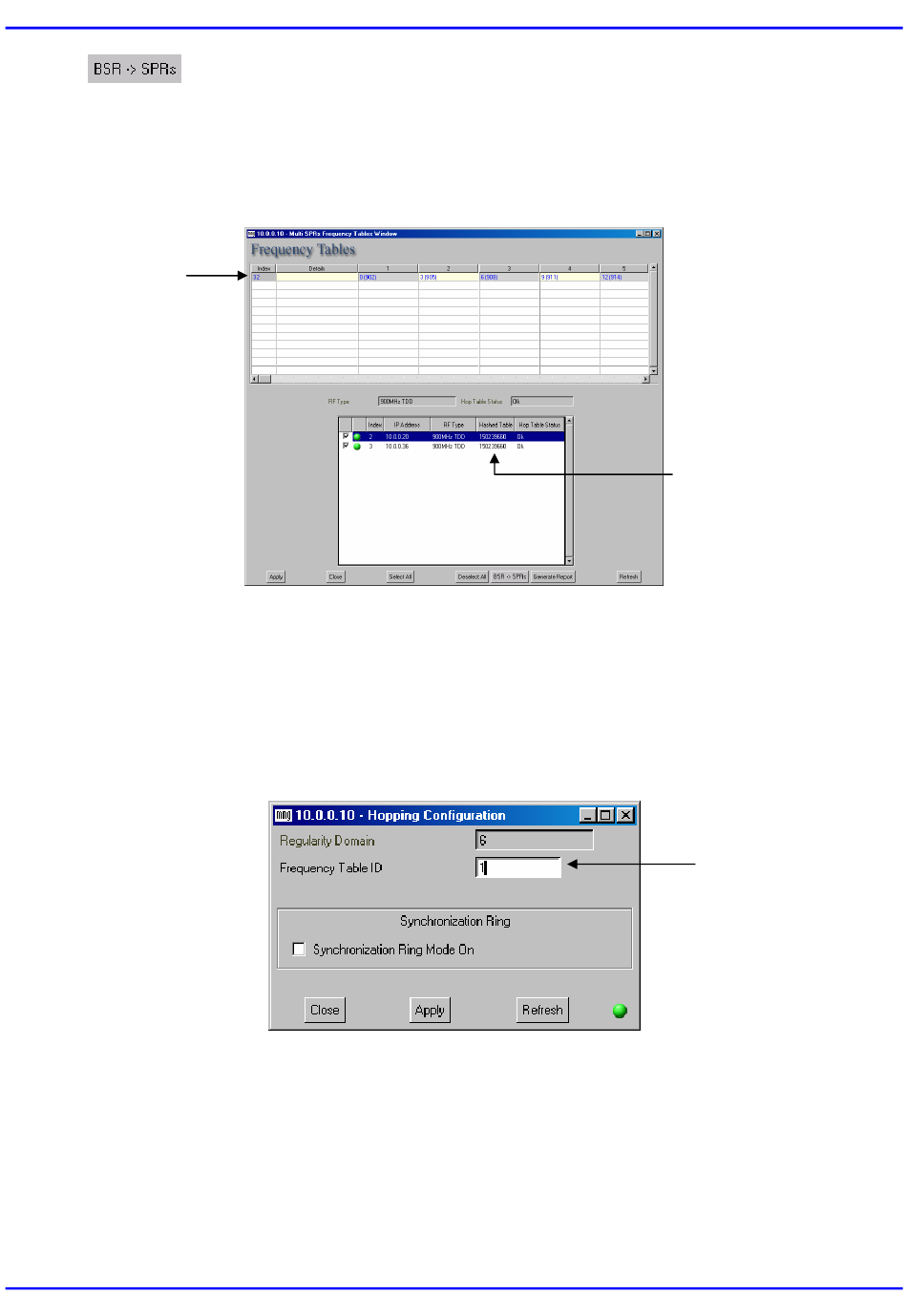

The BSR's NVRAM Frequency table is copied to the selected SPRs. This is indicated by all SPRs having
identical Hashed Table values (e.g. 150239660). If you click on any SPR in the list, the same frequency
table will appear in the upper pane, i.e. Frequency Table index #32.
Frequency table ID
(32) applied to
all SPRs/IDRs

13.3. Selecting the Frequency Table for Communication

Once you have added the frequency tables to the BSR and SPRs/IDRs, you need to instruct the devices to
use this specific frequency table. This is performed by instructing the BSR which frequency table to use.
To select the frequency table ID (using WipManage):
1. In the BSR Zoom window, from the Configuration menu, point to RF, and then choose Hopping
Configuration; The Hopping Configuration dialog box appears.
2. In the Frequency Table ID field, enter the ID number of the frequency table that you added to the BSR
and SPRs/IDRs, i.e. #32. Note that the current frequency table ID is #1, which was configured when
initializing the BSR using WipConfig (see Section 8.2, "BSR Initialization").
3. Click Apply; A message appears informing you change will take affect only after resetting the BSR.
4. Click OK, and then click Close to close the Hopping Configuration dialog box.
5. Reset the BSR.
