6.5. IDR Serial Cabling

IDR serial cabling to a PC involves a crossover cable that connects the IDR's 6-pin RJ-11 port to the PC's
serial port.
Connector pinouts:
6-pin RJ-11
Cable connection:

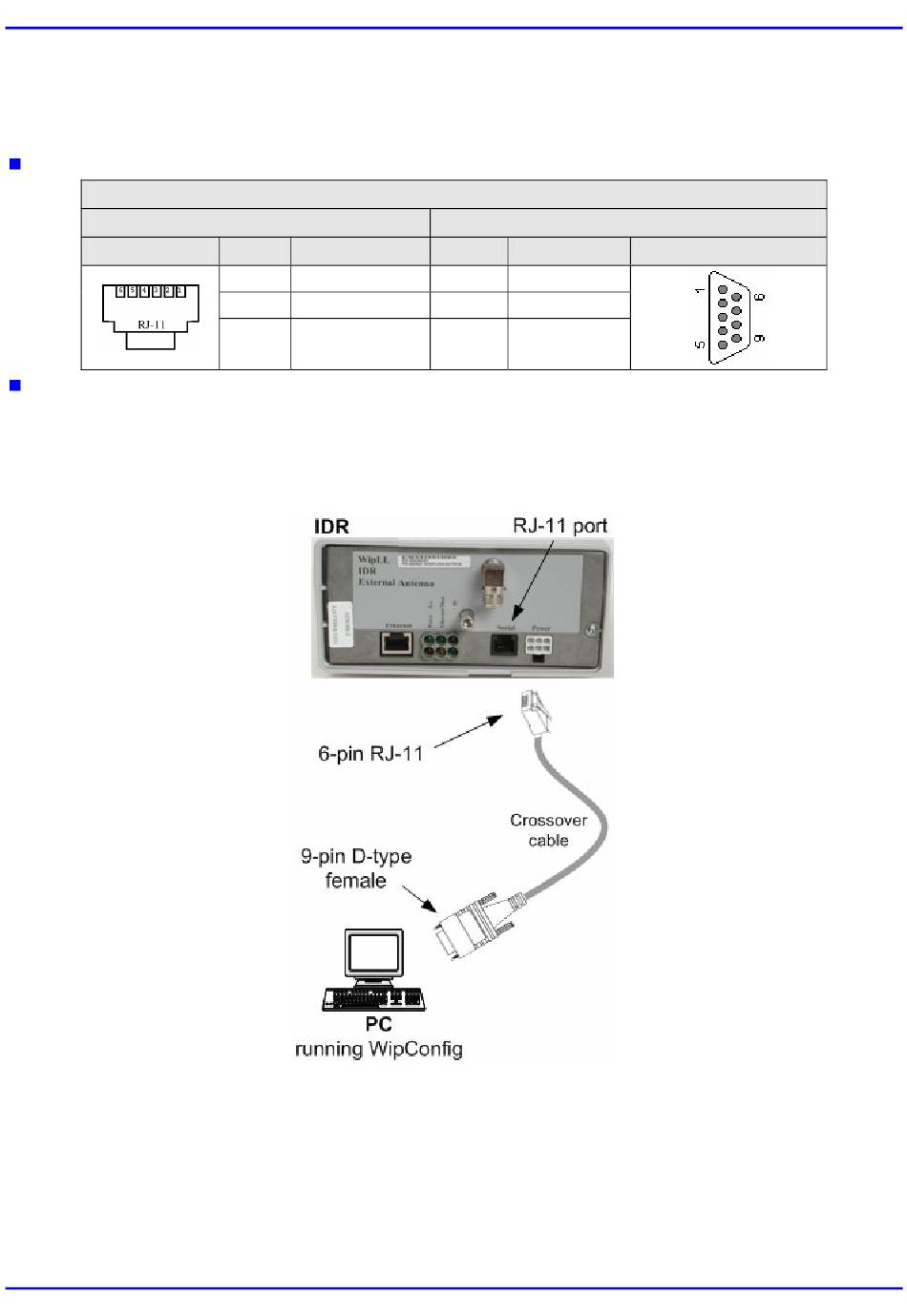

1. Connect the 6-pin RJ-11 connector, at one end of the crossover cable, to the IDR's RJ-11 port labeled
Serial.
2. Connect the 9-pin D-type female connector, at the other end of the crossover cable, to the PC's serial
port.
13070311-02
Crossover cable
IDR
Pin Function
1 Rx
5 GND
6 Tx
Airspan Networks Inc.
Q u i c k I n s t a l l a t i o n & C o n f i g u r a t i o n G u i d e
Pin Function
3 Tx
5 GND
2 Rx
PC
9-pin D-type female
