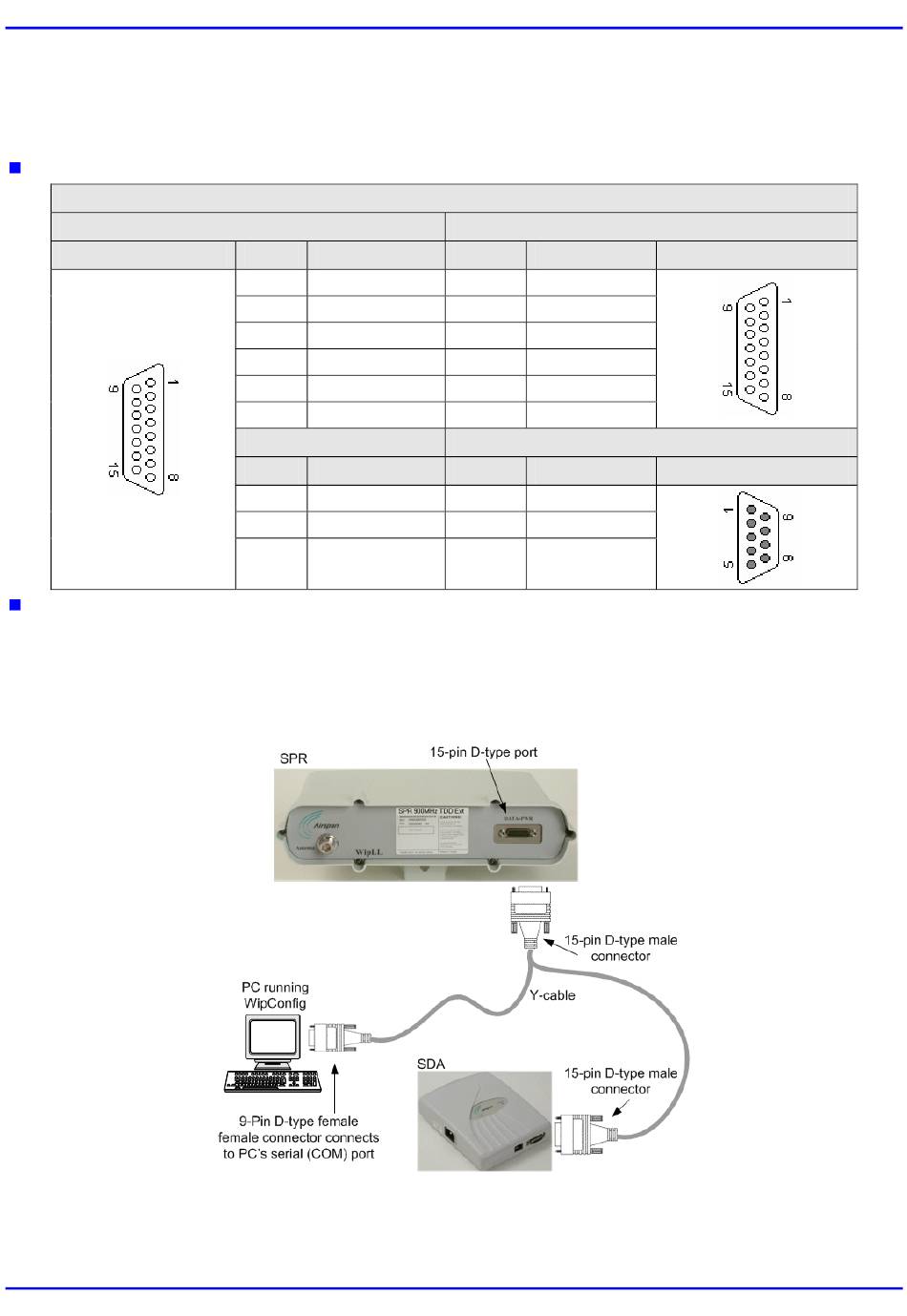

6.4. SPR Serial Cabling

A Y-cable is used for SPR serial cabling. The Y-cable connects the SPR to both the PC and SDA.
Connector pinouts:
15-pin D-type male
Cable connection:
1. Connect the 15-pin D-type male connector, at the one end of the Y-cable, to the SPR.
2. Connect the 15-pin D-type male connector, at the other end of the Y-cable, to the SDA.
3. Connect the 9-pin D-type female (RS232) connector, at the other end of the Y-cable, to the PC's serial
port.
16
Straight-through Y-cable
SPR
Pin Function
1 +48 VDC
2 48 RTN
3 Ethernet Tx+
4 Ethernet Tx-
5 Ethernet Rx+
6 Ethernet Rx-
SPR
Pin Function
12 GND
14 RS232 Rx
15 RS232 Tx
Airspan Networks Inc.
Pin Function
1 +48 VDC
2 48 RTN
3 Rx+
4 Rx-
5 Tx+
6 Tx-
Pin Function
5 GND
3 Rx
2 Tx
AS W i p L L 9 0 0 M H z
SDA
15-pin D-type male
PC
9-pin D-type female
