8.3. SPR/IDR Initialization

To perform SPR/IDR initial configuration:
1. Connect the PC running WipConfig to the SPR/IDR using serial cabling.
2. Start WipConfig.
3. On the toolbar, in the Communication group, select the Serial option, and then click the Connect button;
WipConfig connects to the SPR/IDR.
4. Apply factory defaults to the SPR/IDR, by performing the following:
a. On the toolbar, click the Set Factory Default button; A Warning message box appears.
b. Click Yes to confirm; A Warning message box appears.
c. Click Yes to confirm SPR/IDR reset; WipConfig applies the default settings to the SPR/IDR.
5. From the Bridge Mode drop-down list, select Bridge (i.e. transparent bridge mode).
6. In the Network Configuration group, enter the following fields:
Eth IP Address: enter the SPR's/IDR's IP address (e.g. 10.0.0.20)
Eth Subnet Mask: enter the SPR's/IDR's subnet address (e.g. 255.255.255.0)
Default Gateway: enter the SPR's/IDR's default gateway's IP address, if relevant
7. In the RF Configuration group, enter the following fields:
Index in BSR: enter the SPR's/IDR's index number to be indexed in the BSR, e.g. 2
BSR Air MAC Address: enter the BSR's Air MAC address to which the SPR/IDR is associated, e.g.
0x1200
On
8. the toolbar, click the Write button to apply the new settings to the SPR/IDR.
On
9. the toolbar, click the Reset button to reset the SPR/IDR. A Warning message box appears.
10. Click Yes to confirm resetting the SPR/IDR.

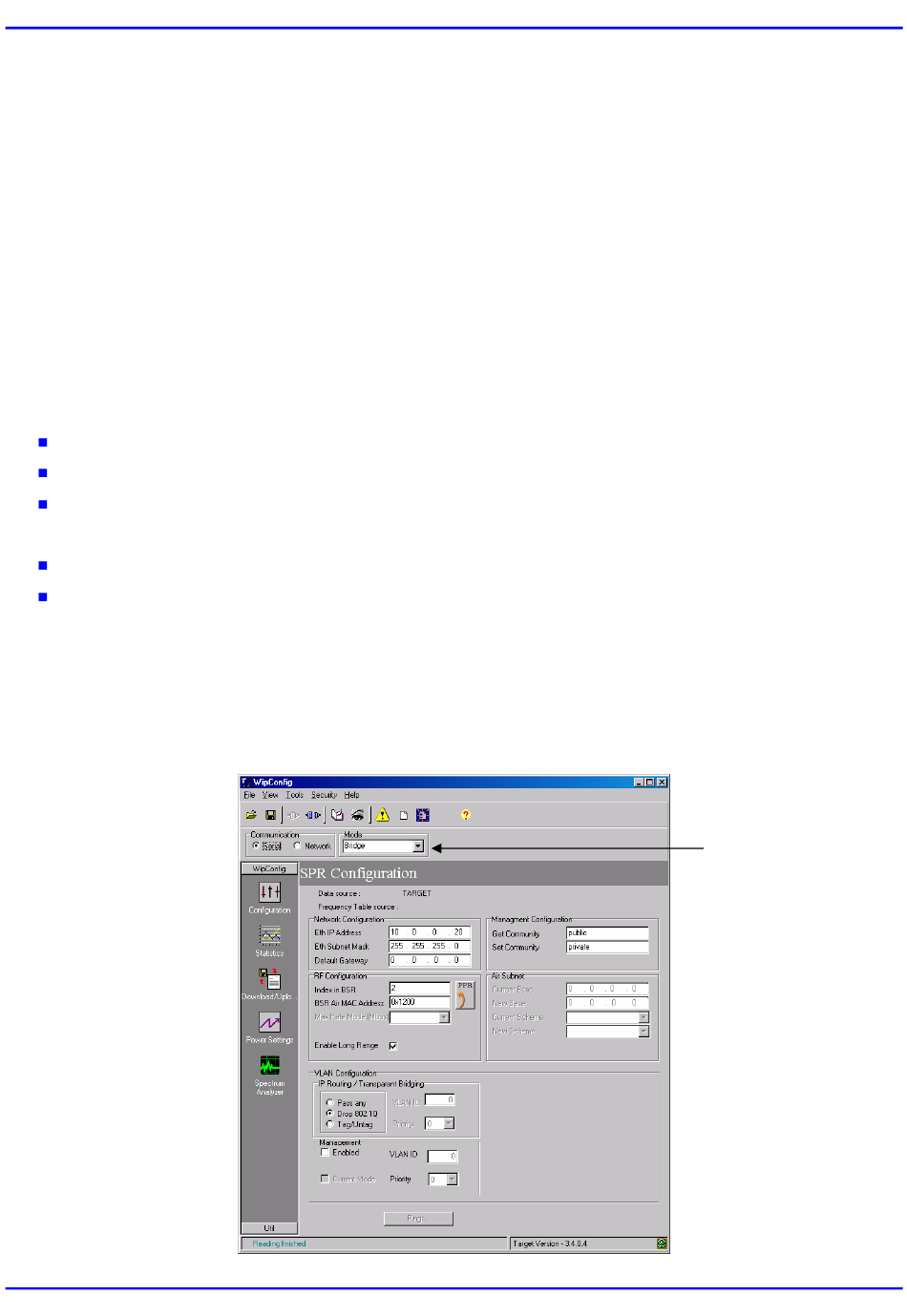

The figure below displays the SPR/IDR configured in the bridge mode.
