AS W i p L L 9 0 0 M H z

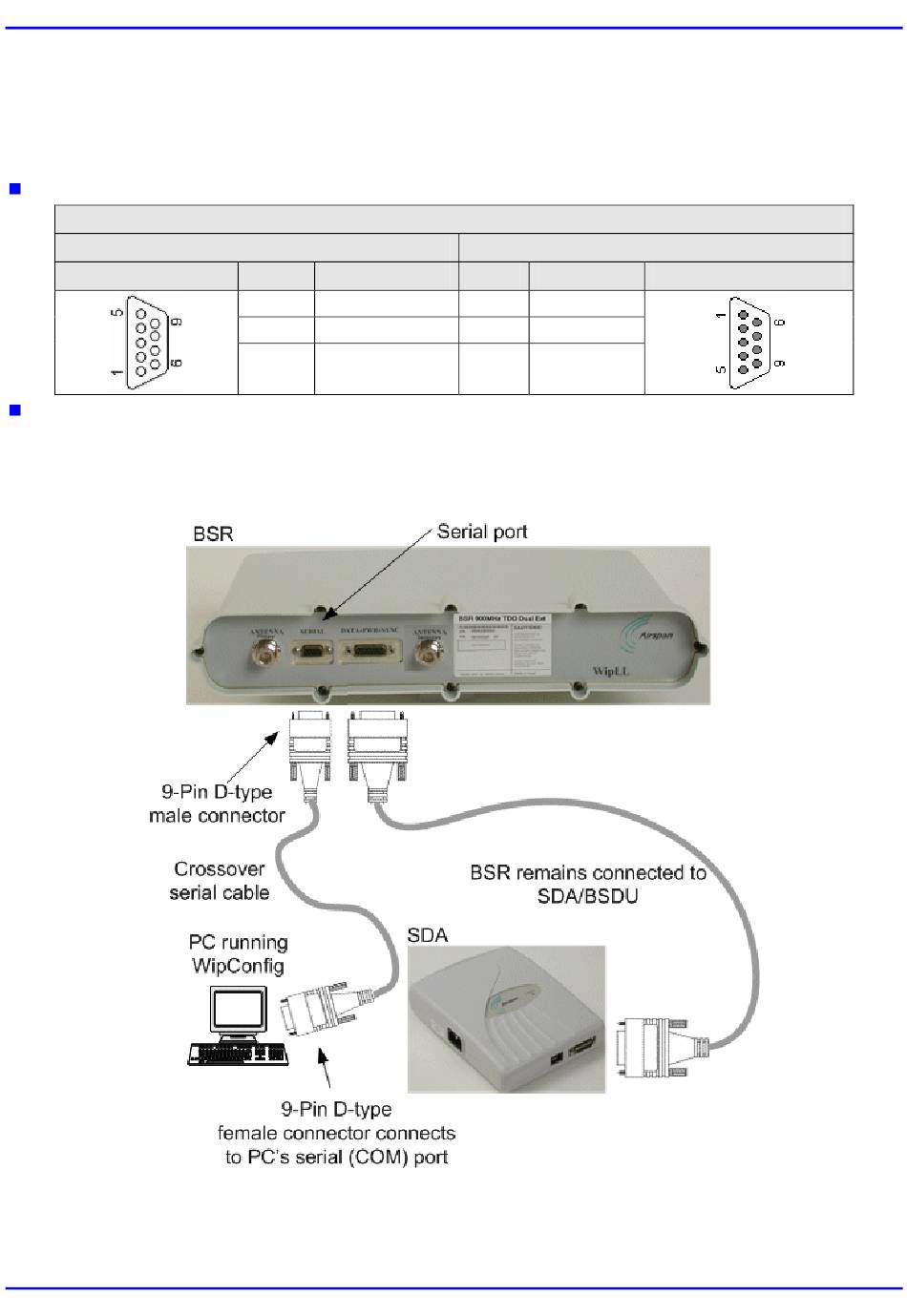

6.3. BSR Serial Cabling

The BSR provides a serial port for RS-232 serial interface with a PC. Note that for serial configuration, the
BSR must remain connected to the BSDU/SDA.
Connector pinouts:
9-pin D-type male
Cable connection:
1. Connect the 9-pin D-type male connector, at one end of the serial cable, to the BSR's serial port,
labeled Serial.
2. Connect the 9-pin D-type female connector, at the other end of the serial cable, to the PC's serial port.
13070311-02
Crossover cable
BSR
Pin
Function
2
RS232 Rx
3
RS232 Tx
5
GND
Airspan Networks Inc.
Q u i c k I n s t a l l a t i o n & C o n f i g u r a t i o n G u i d e
Pin
Function
3
Tx
2
Rx
5
GND
PC
9-pin D-type female
15
