Mounting the Outdoor Radio Units

This chapter provides a brief description on how to mount the outdoor units.

5.1. Pole Mounting

The BSR and SPR can be pole mounted to avoid radio wave obstructions between BSR and SPR. The
supplied pole-mounting bracket is designed to support the BSR/SPR on a round pole of 45mm diameter.
To pole mount the BSR/SPR:
1. Attach the mounting bracket to the BSR/SPR using two stainless steel bolts.
2. Attach the clamping bracket to the mounting bracket using two M8-stainless steel bolts.
3. Attach the Clamping bracket to the pole by placing the two U-bolts around the pole, and then inserting the
U-bolt through the Clamping bracket and securing it by screwing the two bolts on the U-bolt.
4. Adjust the vertical position of the BSR/SPR. Lock the BSR/SPR at the desired position by inserting the
locking bolt in the desired position. Once the correct angle has been set both bolts must be tightened to
lock the BSR/SPR bracket in place.
5. Adjust the BSR/SPR horizontal position by rotating the BSR/SPR about the pole, and then tighten the U-
bolt.

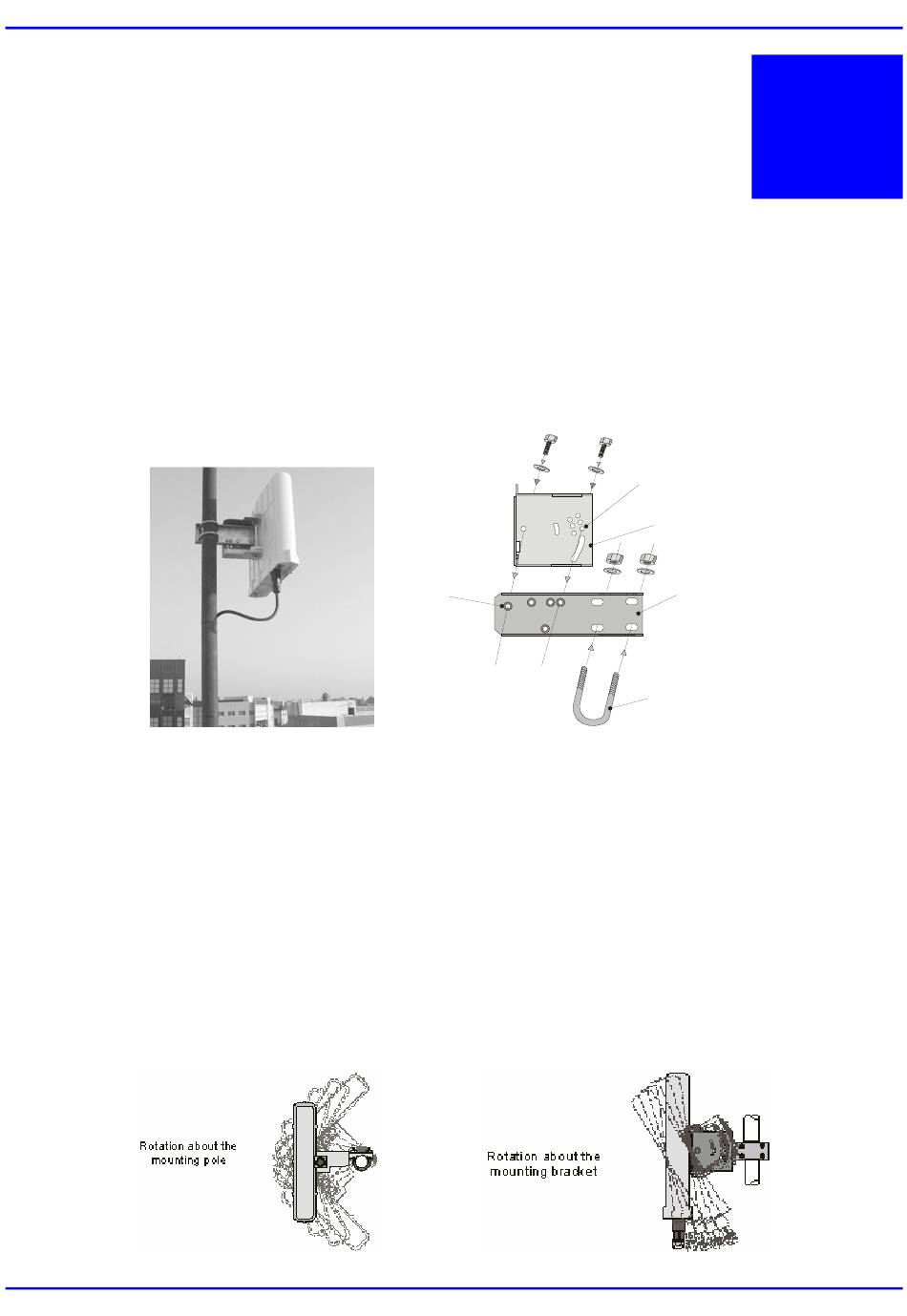

BSR/SPR positioning is obtained in two planes by adjustment of the mounting bracket assembly as shown
in the figure below.
13070311-02
Pivot Hole
Airspan Networks Inc.
Q u i c k I n s t a l l a t i o n & C o n f i g u r a t i o n G u i d e
Locking Holes
BSR mounting
Bracket
Clamping Bracket
'U' Bolt
