Configuring PC's IP Address

To establish IP network connectivity between your PC running the NMS (WipConfig or WipManage) and the
ASWipLL devices, you need to configure your PC's TCP/IP address settings in accordance with your
ASWipLL network's IP addressing scheme:
Define PC's (i.e. Ethernet card) IP address so that it's in same subnet as the BSR/BSDU.
Configure PC's default gateway with the IP address of the BSR, or with the IP address of a router if one
exists between the PC and BSR.
To configure your PC's IP address settings:
1. On the Windows desktop, right-click My Network Places, and then from the shortcut menu, choose
Properties; The Network and Dial-up Connections folder appears.
2. Right-click the desired connection, and then from the shortcut menu, choose Properties; The Local Area
Connection Properties dialog box appears.

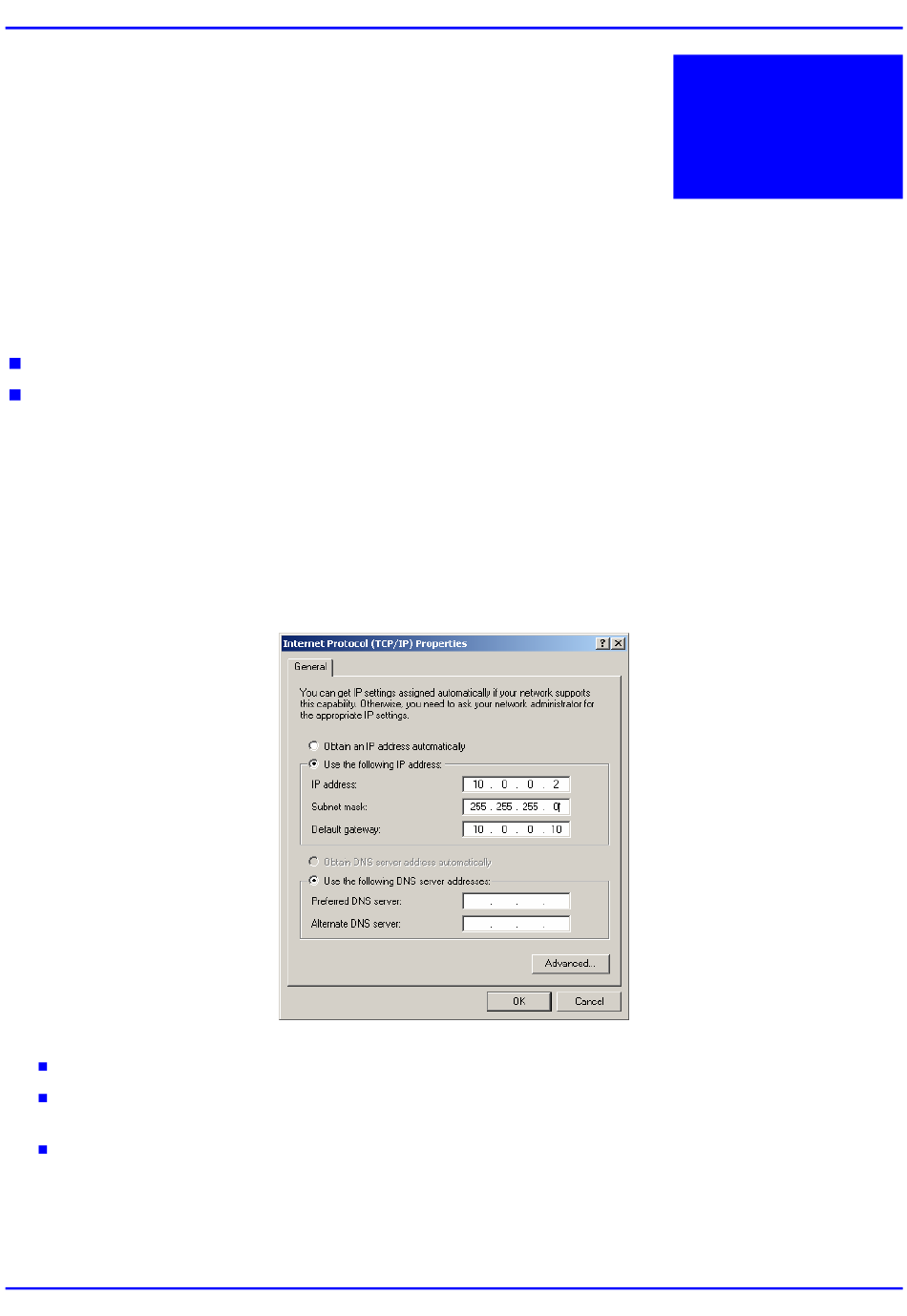

3. In the Components list, select Internet Protocol (TCP/IP), and then click Properties; The Internet
Protocol (TCP/IP) Properties dialog box appears:
4. Select the Use the Following IP Address option, and then enter the following fields:
IP Address: PC's IP address, e.g. 10.0.0.2
Subnet Mask: PC's subnet mask address, which must be the same as the BSR/BSDU (e.g.
255.255.255.0) so that the PC is in the same subnet as the BSR/BSDU
Default Gateway: PC's default gateway, which can be the BSR's IP address (e.g. 10.0.0.10), or if a
router exists behind the BSR, then the router's IP address
5. Click OK.
