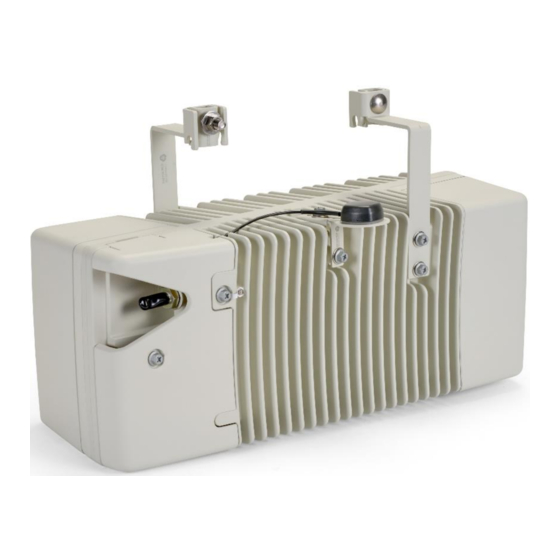

- Page 1 N S T A L L A T I O N U I D E AirStrand 2200 Installation Guide Document Part Number: DUG01287 Document Revision: A2 Published: October 2021 © Copyright by Airspan Networks Ltd., 2021. All rights reserved worldwide.
- Page 2 Airspan Networks Ltd. reserves the right, without prior notice or liability, to make changes in equipment design or specifications. Information supplied by Airspan Networks Ltd. is believed in good faith to be accurate and reliable, while every care has been taken in preparing these documents. However, Airspan Networks Ltd. does not make any representations and gives no warranties of whatever nature in respect of these documents, including without limitation, the accuracy or completeness of any information, facts and/or opinions contained therein.
-
Page 3: Table Of Contents
AirStrand 2200 Installation Checklist ................13 Verifying Prerequisites ....................14 Verifying Site Requirements ..................14 Verify Installation Requirements ..................14 Installing AirStrand 2200 ....................18 Strand Mounting the AirStrand 2200 ................18 Antenna Sectors ......................21 Connecting and Managing Cables ................22 Removal of Connection Panel Cover................22 Grounding ........................23 Interface Connection ....................23... - Page 4 AirStrand 2200 Installation Guide AirStrand 2200 – Installation Guide Acronyms, Abbreviations, and Definitions ................26 Customer Service Help Desk ..................... 27 Airspan Encourages Comments ....................27 © Copyright Airspan Networks Ltd., 2021 P/N: DUG01287 Rev. A2, Oct 2021...
- Page 5 Figure 9: Ground Screw Connection ......................23 Figure 10: Use 2 Wrenches to Loosen ....................... 24 ABLES Table 1: AirStrand 2200 Maximum Output TX Total Power ................9 Table 2: Antenna ............................9 Table 3: Typographic Conventions ......................10 Table 4. Minimum Hardware Requirements ..................... 14 Table 5.
-
Page 6: Document Information
AirStrand 2200 – Installation Guide Document Information This document details procedures for installing the Airspan’s Air5G AirStrand 2200, as part of the 5G NR standard and its place in the Airspan product suite. This document is intended for qualified personnel with a working knowledge of 5G. -
Page 7: Warnings And Cautions
The AirStrand 2200 should be operated from a minimum safe distance of 49cm. (19.4 in.). Radio Interference The AirStrand 2200 generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. -
Page 8: Safety
Substances Hazardous to Health Regulations 1989 and the Dangerous Substances Regulations 1990). At the end of any Airspan products life cycle, the customer should consult with Airspan to ensure that the product is disposed of in conformance with the relevant regulatory requirements. -
Page 9: Warning Symbols
AirStrand 2200 is designed to operate in environmental conditions complying with IP66 and relevant standards. Lightning Protection WARNING: The following notes are general recommendations for the system. - Page 10 AirStrand 2200 Installation Guide AirStrand 2200 – Installation Guide - Poorly grounded tower/antenna sites that can conduct high lightning strike energy into equipment. - Lack of properly installed lightning protection equipment that can cause equipment failures from lightning induced currents.
-
Page 11: Declaration Of Conformity
This equipment is in compliance with the essential requirements and other relevant provisions of Directive 2014/53/EU. Español: Por medio de este Airspan, declara que la unidad cumple con los requisitos esenciales y cualquier otra disposición aplicable o exigible de la Directiva 2014/53 / UE. Greek: ΜΕ... - Page 12 Därmed intygar Airspan att denna enhet överensstämmer med de väsentliga egenskapskraven och andra relevanta bestämmelser som anges i direktiv 2014/53 / EU. Íslenska: Airspan lýsir hér með yfir að þessi eining uppfylli grunnkröfur og aðrar kröfur tilskipunar 2014/53 / ESB. Norsk: Airspan erklærer herved at utstyrsenheten oppfyller grunnleggende krav og andre relevante krav i...
-
Page 13: Gps Compliance
AirStrand 2200 Installation Guide AirStrand 2200 – Installation Guide GPS Compliance The GPS is in compliance with the essential requirements and other relevant provisions of Directive 2014/53/EU." The GPS complies with the following EMC Common Regulatory Testing standards: EN55022: Radiated and Conducted Emissions ... -
Page 14: Maximum Output Tx Total Power
AirStrand 2200 power consumption is <95W. Antenna Solution The AirStrand 2200 antenna architecture is based on a dual sector with dual 2x2 SBA antennas. The two sectors support two carrier which can operate in same or in different frequencies. Each SBA antenna supports two possible configurations: 90°... -
Page 15: About This Document
Connect and manage cables Intended Audience This guide is intended for persons who are responsible for installing the AirStrand 2200. These persons should have a working knowledge of the equipment. Document Conventions This document uses the following typographic conventions. -
Page 16: Related Reading
AirStrand 2200 Installation Guide AirStrand 2200 – Installation Guide Related Reading The following documents contain related information: AirStrand 2200 Product Specification Airspan 5G Commissioning Manual (pending) © Copyright Airspan Networks Ltd., 2021 P/N: DUG01287 Rev. A2, Oct 2021... -
Page 17: Introduction
AirStrand 2200 Installation Guide AirStrand 2200 – Installation Guide 1 Introduction This section provides a descriptive overview of the Airspan’s AirStrand 2200 and its place in the Airspan product suite. This document is intended for readers with LTE/5G working knowledge. -
Page 18: Getting Started
AirStrand 2200 – Installation Guide 2 Getting Started 2.1 AirStrand 2200 Installation Checklist Plan the installation of the AirStrand 2200 by using the Installation Checklist, which you can find as a removable job aid in Appendix A for this guide. -
Page 19: Verifying Prerequisites
Set up requirements for the installation is detailed in the Job Sheet, see Appendix_A. 3.1 Verifying Site Requirements To set up the AirStrand 2200, an IP connection to a Network Management System (NMS) is required. 3.2 Verify Installation Requirements 3.2.1 Verify the Tools Table 4. -
Page 20: Table 5. Parts & Kits
AirStrand 2200 Installation Guide AirStrand 2200 – Installation Guide 3.2.2 Verify the Parts and Kits Verify your order and requirements to ensure the correct unit type is being installed. Table 5. Parts & Kits Installation Kit / Part No. -
Page 21: Figure 2: Airstrand 2200 Dimensions
AirStrand 2200 Installation Guide AirStrand 2200 – Installation Guide 3.2.3 Power Supply and Current AirStrand 2200 supports a direct connection to AC Quasi-sine power source, to be fed from the HFC network. Power Source requirements are: Operational Range: 44V-89VAC; 42V cutoff, 44V turn-on ... -
Page 22: Table 7: Airstrand 2200 Operational Tolerances
AirStrand 2200 Installation Guide AirStrand 2200 – Installation Guide 3.2.5 Environmental AirStrand 2200 is not meant to be used in a Marine environment. AirStrand 2200 meets the following environmental requirements: GR-63 Storage and Transportation ETSI EN 300-019-1-4 Operational (non-weather protected equipment) ... -
Page 23: Installing Airstrand 2200
AirStrand 2200 – Installation Guide 4 Installing AirStrand 2200 AirStrand 2200 is installed on the strand (the steel cable) that runs from pole to pole supporting other cables, such as telephone and cable company cables that run from pole to pole. -
Page 24: Figure 3: Assemble Strand Hangers On Unit
(provided) into the threaded holes. Figure 3: Assemble Strand Hangers on Unit 2. Orient the AirStrand 2200 unit to enable optimal positioning prior to placing on strand cable. 3. Lift and hang the AirStrand unit onto the cable strand, keep a hand on the unit for safety. -
Page 25: Figure 5: Airstrand 2200 0N Cable Strand
Figure 5: AirStrand 2200 0n Cable Strand 4.1.2 GPS Bracket Adjustment After the AirStrand 2200 is securely fastened on the strand cable, the GPS and its bracket should be extended for maximum efficiency. 1. Loosen the 1/4-28 Hex screw on the GPS slide, which is on the top of the slide bracket. -
Page 26: Antenna Sectors
AirStrand 2200 Installation Guide AirStrand 2200 – Installation Guide 4.2 Antenna Sectors The following displays the AirStrand 2200 antenna element sector direction. Figure 7: AirStrand Sectors © Copyright Airspan Networks Ltd., 2021 P/N: DUG01287 Rev. A2, Oct 2021... -
Page 27: Connecting And Managing Cables
AirStrand 2200 Installation Guide AirStrand 2200 – Installation Guide 5 Connecting and Managing Cables This section describes Grounding procedure, cable preparation and connections. 5.1 Removal of Connection Panel Cover To access the connections, you must first remove connection panel cover. -
Page 28: Grounding
AirStrand 2200 – Installation Guide 5.2 Grounding Once the AirStrand 2200 is securely attached on the strand it is required to connect an approved ground cable. The external ground cable should be connected with the grounding screw (1/4-16) fitted with a flat washer and lock washer (supplied) on the unit chassis clearly marked with the universal ground symbol. -
Page 29: Figure 10: Use 2 Wrenches To Loosen
AirStrand 2200 Installation Guide AirStrand 2200 – Installation Guide Figure 10: Use 2 Wrenches to Loosen 5.3.2 LED Display Two LEDs are displayed on the inside of the panel of the unit, providing unit status indication - reporting system status: System / Access, Backhaul. -
Page 30: Job Sheet
AirStrand 2200 Installation Guide AirStrand 2200 – Installation Guide Job Sheet This job sheet enables the users to keep track of their installation. It covers all the prerequisites required for accomplishing the AirStrand 2200 installation. Table 9: Job Sheet Site Requirements ... -
Page 31: Table 10: Acronyms, Abbreviations, And Definitions
AirStrand 2200 Installation Guide AirStrand 2200 – Installation Guide Table 10: Acronyms, Abbreviations, and Definitions Term Expansion Decibel. A logarithmic unit used to describe a ratio (such as power ratio in radio telecommunications) An abbreviation for the power ratio in decibels (dB) of the measured power referenced to one milliwatt (mW). - Page 32 Customer Service Help Desk Airspan’s Customer Care Help Desk offers prompt and efficient customer support services. To take advantage of Airspan’s Customer Care Help Desk support, you must be a registered user and must have a valid support contract. To register, click...
