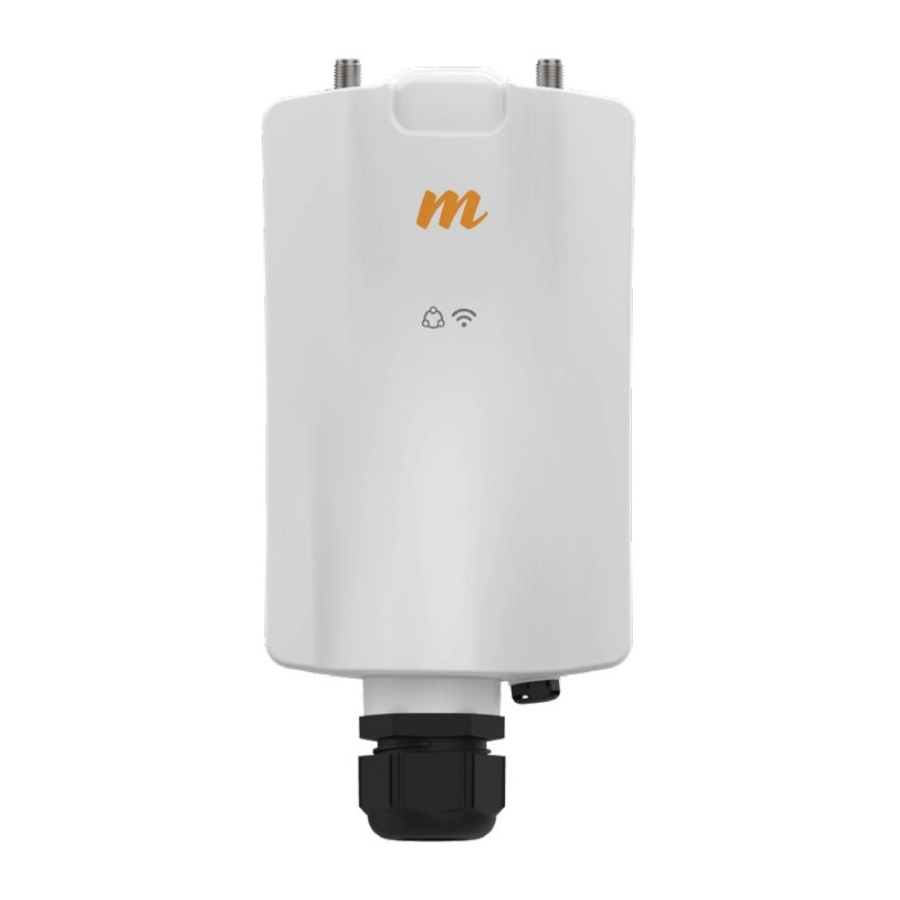

Airspan Mimosa A5 Series - Flexible PTMP Access Point Installation

Introduction

Instructions, videos and help can be found at: mimosa.co/support

The following additional items are required or recommended items for proper installation to meet applicable local or national electrical codes or safety standards:

• Dual-polarization access point category antenna - the antenna must be cross-polarized
• Minimum 10 AWG (5.26 mm²) ground cable with pre-terminated ring terminal
• Passive Gigabit Power over Ethernet injector supplying between 24-57 VDC to device input
• Outdoor shielded CAT6/6A Ethernet cable
• Recommended: One (1) hose clamp pole straps (if no integrated mount clips on your antenna)
• Recommended: Mastic sealing tape

Mounting

Using a hose clamp style pole strap, attach the A5x to the desired pole by inserting the straps through the slot in the mounting bracket, and tighten the strap. Alternatively, attach the device to any antenna which supports the integrated mounting clips shown below.

Grounding

Use minimum 10 AWG (5.26 mm2) ground wire with a ring terminal style connector and attach to the provided grounding lug on the A5x. The ground wire should be no longer than 1 m in length.

Antenna Connection

Connect two (2) RP-SMA male type jumper cables between the chosen antenna and the A5x and tighten as shown below. It is recommended to optionally seal the connectors with mastic tape for weatherproofing.

Connect Ethernet

Connect a shielded CAT6/6A Ethernet cable (not included) to the device, inserting it through the M25 cable sealing gland components and tighten as shown in the diagram below. Connect the other end of the Ethernet cable to a passive PoE power supply (the A5x supports passive 24-57 VDC PoE input).
