Summary of Contents for Airspan AirSpot 5410

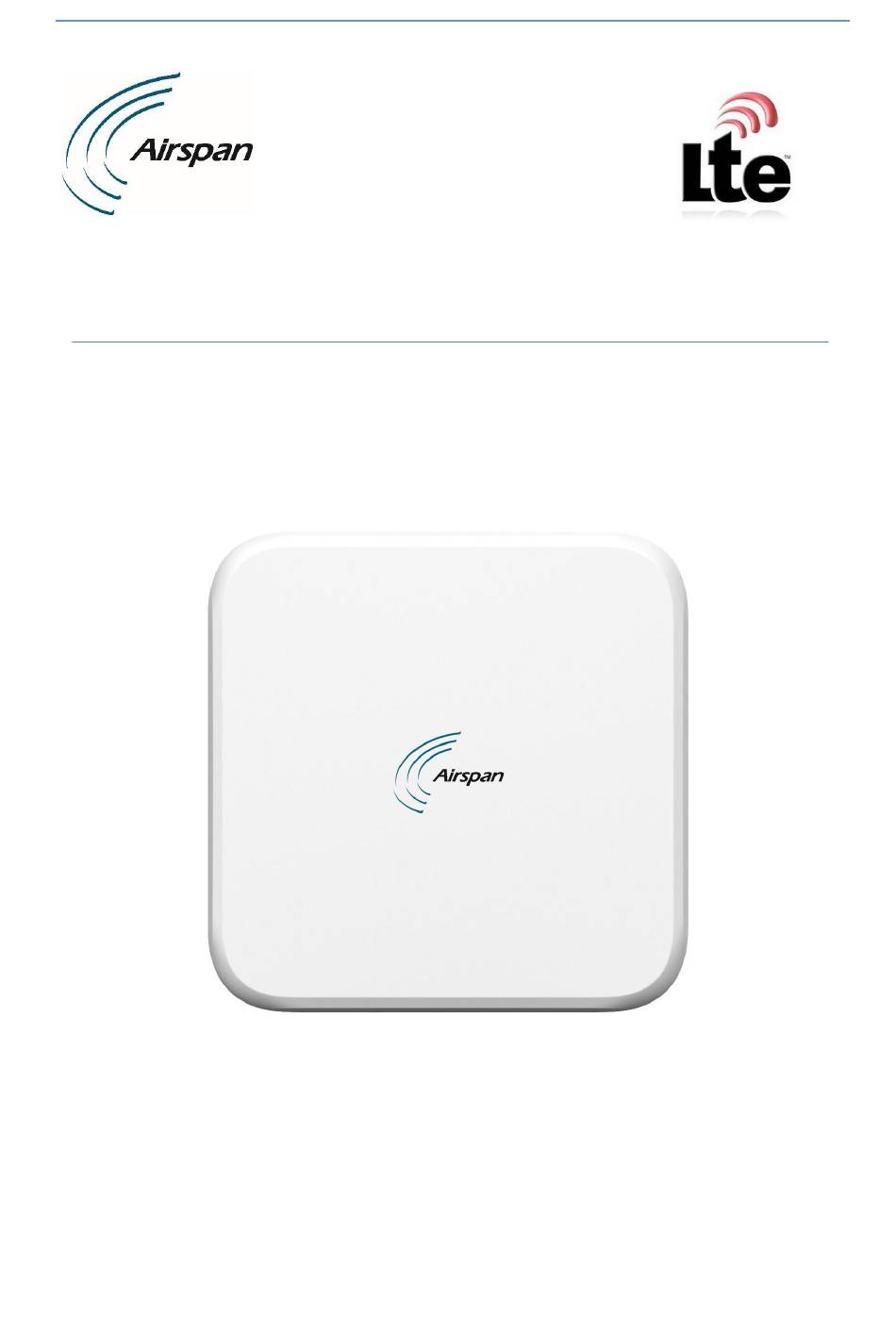

- Page 1 AirSpot 5410 LTE ODU CPE Quick Start Guide AirSpot 5410 LTE ODU CPE Quick Start Guide Part Number: DUG01692 Revision: V0.8 Published: October 2020...
- Page 2 Information supplied by Airspan Networks Inc. is believed to be accurate and reliable. However, no responsibility is assumed by Airspan Networks Inc. for the use thereof nor for the rights of third parties which may be effected in any way by the use of thereof.
-
Page 3: How Does It Work
Multiple operator network support can allow deployment across the country with different operators. The AirSpot 5410 provides a Gigabit PoE connection to connect user terminal devices, such as a router or WiFi AP products. -
Page 4: Hardware Installation
AirSpot 5410 LTE ODU CPE Quick Start Guide Hardware Installation Installing SIM Card Remove the seal cover from the device by loosening the thread. Insert the SIM card into the slot (attention to the card direction). Replace the seal cover to the device by fastening the thread. - Page 5 AirSpot 5410 LTE ODU CPE Quick Start Guide Figure 4: insert Ethernet Cable Insert the Ethernet plug into the RJ45 connector until a click is heard. Replace the waterproof rubber (with black holder) to the device by pushing it along the Ethernet cable.
- Page 6 AirSpot 5410 LTE ODU CPE Quick Start Guide Note: Please make sure that the seal cover / RJ45 cable gland cover / vent are properly and securely closed by fastening the thread. Installing ODU to the Mounting Kit Note: Recommend to consult with a qualified technician to install the mounting kit.
- Page 7 AirSpot 5410 LTE ODU CPE Quick Start Guide Figure 9: Adjust ODU to Desired Position Installing Pole mount using the backplate Note: Recommend to consult with a qualified technician to install the pole mount. Loosen M8 long blot /flat washer/spring washer/nut, through the blot from mating holes of back plate, and then fasten it with pole holder.
-
Page 8: Hardware Connection
AirSpot 5410 LTE ODU CPE Quick Start Guide Installing Pole mount using metal straps Note: Recommend to consult with a qualified technician to install the pole mount. Loosen the screw of metal strap, open the strap and then through the mating holes of pole holder. -
Page 9: Led Definition
AirSpot 5410 LTE ODU CPE Quick Start Guide LED Definition Figure 13: LED Panel Table 1: LED Definition Device Status LED Status Blue Power On Power Power Off Blue SIM card initialized No SIM card Blue System on System off... - Page 10 AirSpot 5410 LTE ODU CPE Quick Start Guide Access ODU ODU offer two kinds of user account with different authorization. For more details refer to AirSpot 5410 LTE ODU CPE User Guide V0.8. To log in to ODU: a. Launch a supported web browser.
-
Page 11: Overview Page
AirSpot 5410 LTE ODU CPE Quick Start Guide Overview Page In Overview page, there are properties, which would refresh automatically and allow you to determine the running status of the ODU (as table “Overview page details” lists). Figure 15: Properties on Overview Page... - Page 12 AirSpot 5410 LTE ODU CPE Quick Start Guide Property Description SCC2 – Secondary component carrier #2 under CA scenario. SCC3 – Secondary component carrier #3 under CA scenario. SN – Serial number. IMEI – International Mobile Equipment Identity.
-
Page 13: Apn Settings
AirSpot 5410 LTE ODU CPE Quick Start Guide To view the CPU usage, perform the following steps: Choose Statistics In the CPU Usage section, view the CPU usage information, such as Current CPU usage, Max CPU usage, Min CPU usage. As shown in figure below: Figure 18: Bandwidth Statistics ... - Page 14 AirSpot 5410 LTE ODU CPE Quick Start Guide Launch a web browser from a computer that is connected to ODU and access to web management system. Go to Settings >LTE->APN settings page. Figure 20: APN Settings Select specified APN index and change APN parameters.
- Page 15 AirSpot 5410 LTE ODU CPE Quick Start Guide Description Property Active, connection granted with IP allocation. PDN Status IPv4 PDN Type IPv6 IPv4&IPv6 Address Assigned IP address. CBSD-CPE According to WINNF-TS-0016 (Reference [1]), ODU which operating in the CBRS band (3550-3700...
