Cabling

This chapter describes BSR, SPR, and IDR Ethernet and serial cabling.

6.1. BSR-to-BSDU Cabling

The BSR interfaces with the provider's backbone through the BSDU (or SDA). The BSR connects to the BSDU
using a CAT 5 cable. (The BSR-to-SDA cabling is the same as SPR-to-SDA cabling. See Section 6.2.)
Connector pinouts:
15-pin
D-type male
Pin
1
2
3
4
5
6
7
8

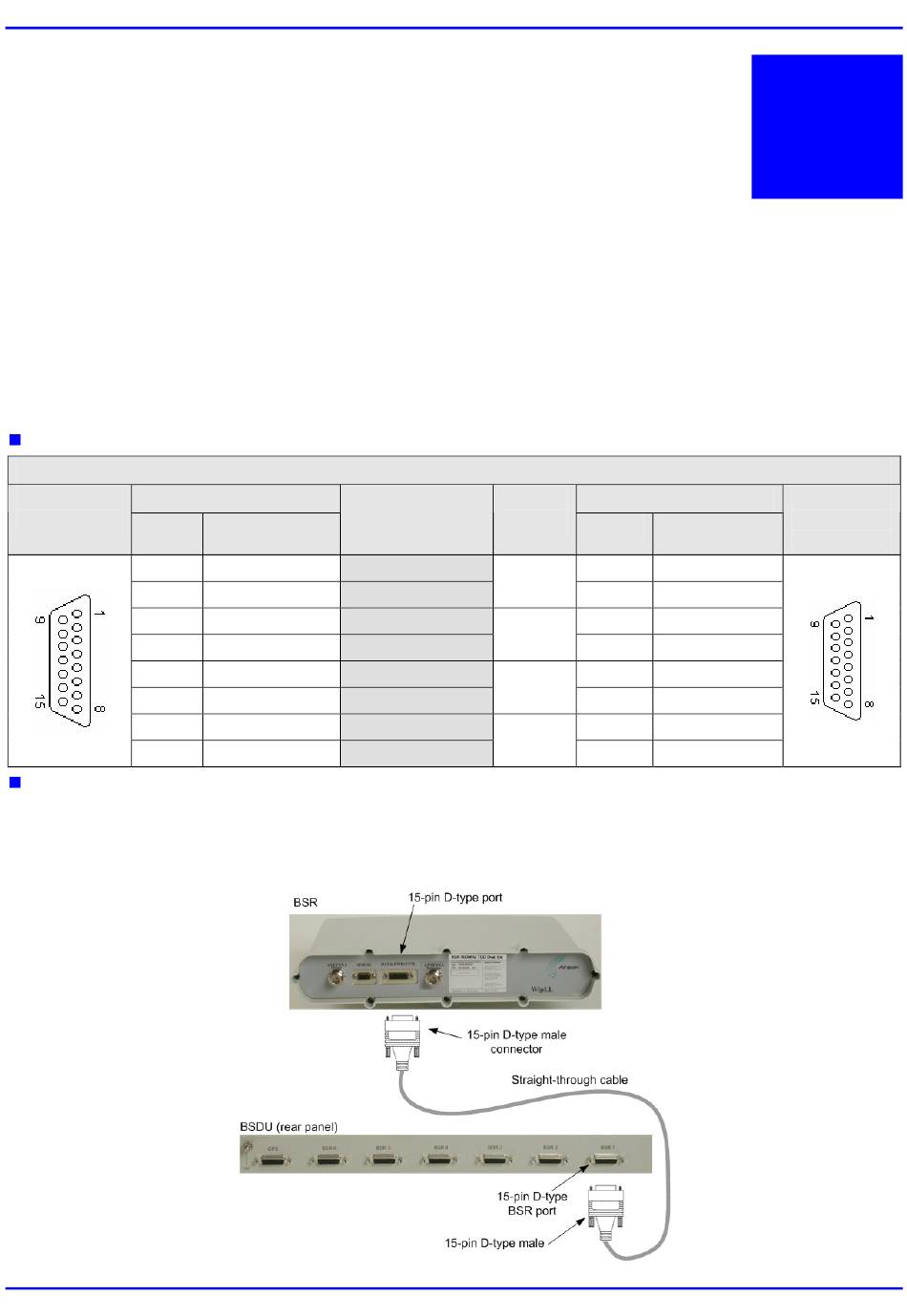

Cable connection:
1. Connect the 15-pin D-type male connector to the BSR's 15-pin port.
2. Connect the 15-pin D-type male connector, at the other end of the CAT 5 cable, to one of the BSDU's
15-pin D-type ports labeled BSR, located on the BSDU's rear panel.
13070311-02
Straight-through CAT-5 UTP PVC 4Pair 24 AWG cables
BSR Wire color
Function
+48 VDC Blue
48 RTN Blue
Tx+ Orange
Tx-
Orange
Rx+ Green
Rx- Green
Sync.+ Brown
Sync.- Brown
Airspan Networks Inc.
Q u i c k I n s t a l l a t i o n & C o n f i g u r a t i o n G u i d e
Wire
pair
/ White
1
/ White
2
/ White
3
/ White
4
BSDU/SDA
Pin Function
1 +48 VDC
2 48 RTN
3 Rx+
4 Rx-
5 Tx+
6 Tx-
7 Sync.+
8 Sync.-
