6.2. SPR-to-SDA Cabling

The SPR interfaces with the subscriber's Ethernet network (LAN) through the SDA. The SPR connects to the
SDA using a CAT 5 cable.
Connector pinouts:
15-pin
D-type male
Pin
1
2
3
4
5
6
Cable connection:

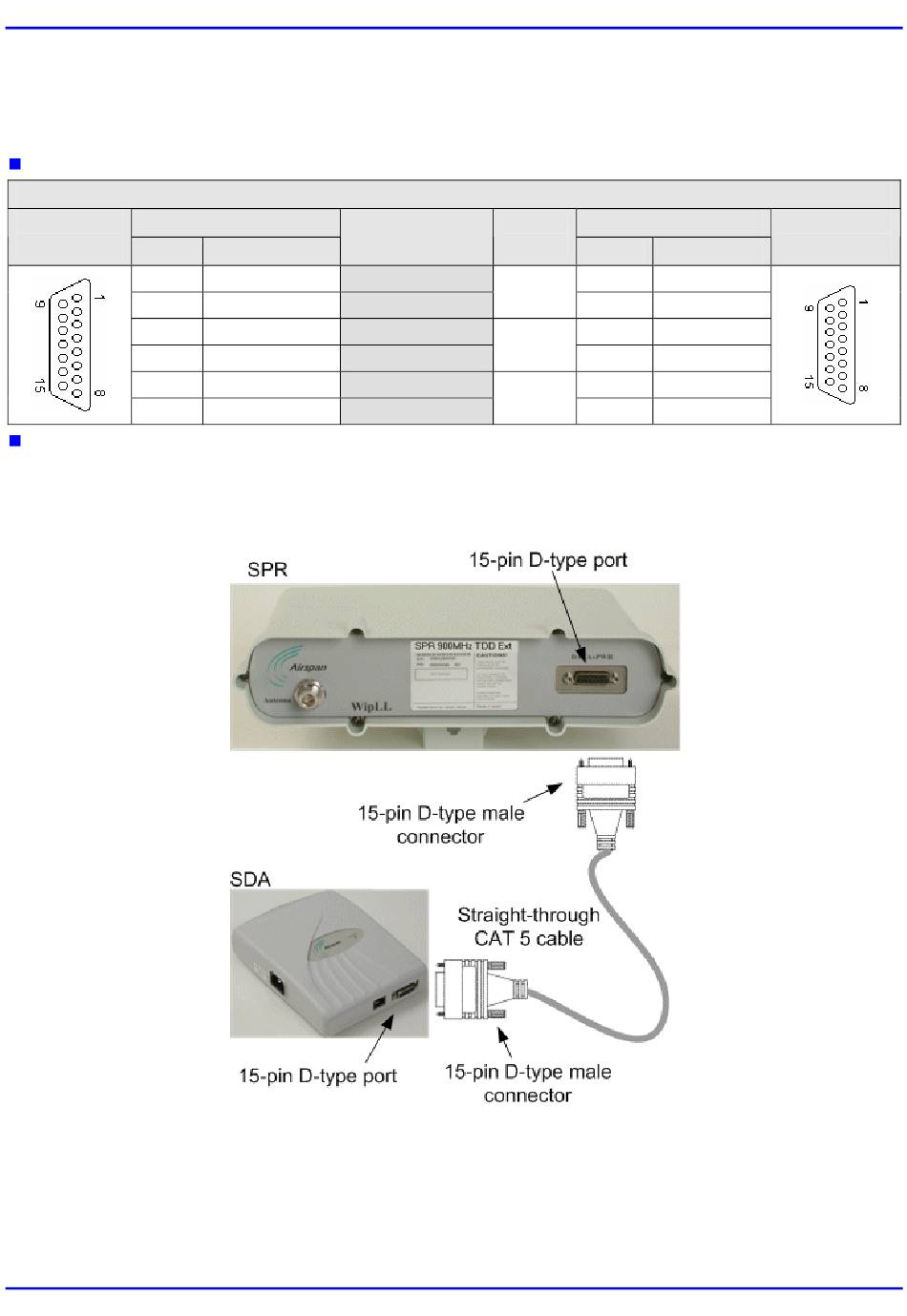

1. Connect the 15-pin D-type male connector, at one end of the CAT 5 cable, to the SPR's 15-pin port.
2. Connect the 15-pin D-type male connector, at the other end of the CAT 5 cable, to the SDA's 15-pin
D-type port.
14
Straight-through CAT-5 UTP PVC 4Pair 24 AWG cables
SPR Wire color
Function
+48 VDC Blue
48 RTN Blue
Tx+ Orange
Tx- Orange
Rx+ Green
Rx- Green
Airspan Networks Inc.
Wire
pair
/ White
1
/ White
2
/ White
3
AS W i p L L 9 0 0 M H z
SDA
Pin Function
1 +48 VDC
2 48 RTN
3 Rx+
4 Rx-
5 Tx+
6 Tx-
15-pin
D-type male
