MKS HPS 937A Series Owner's Operation And Maintenance Manual page 31

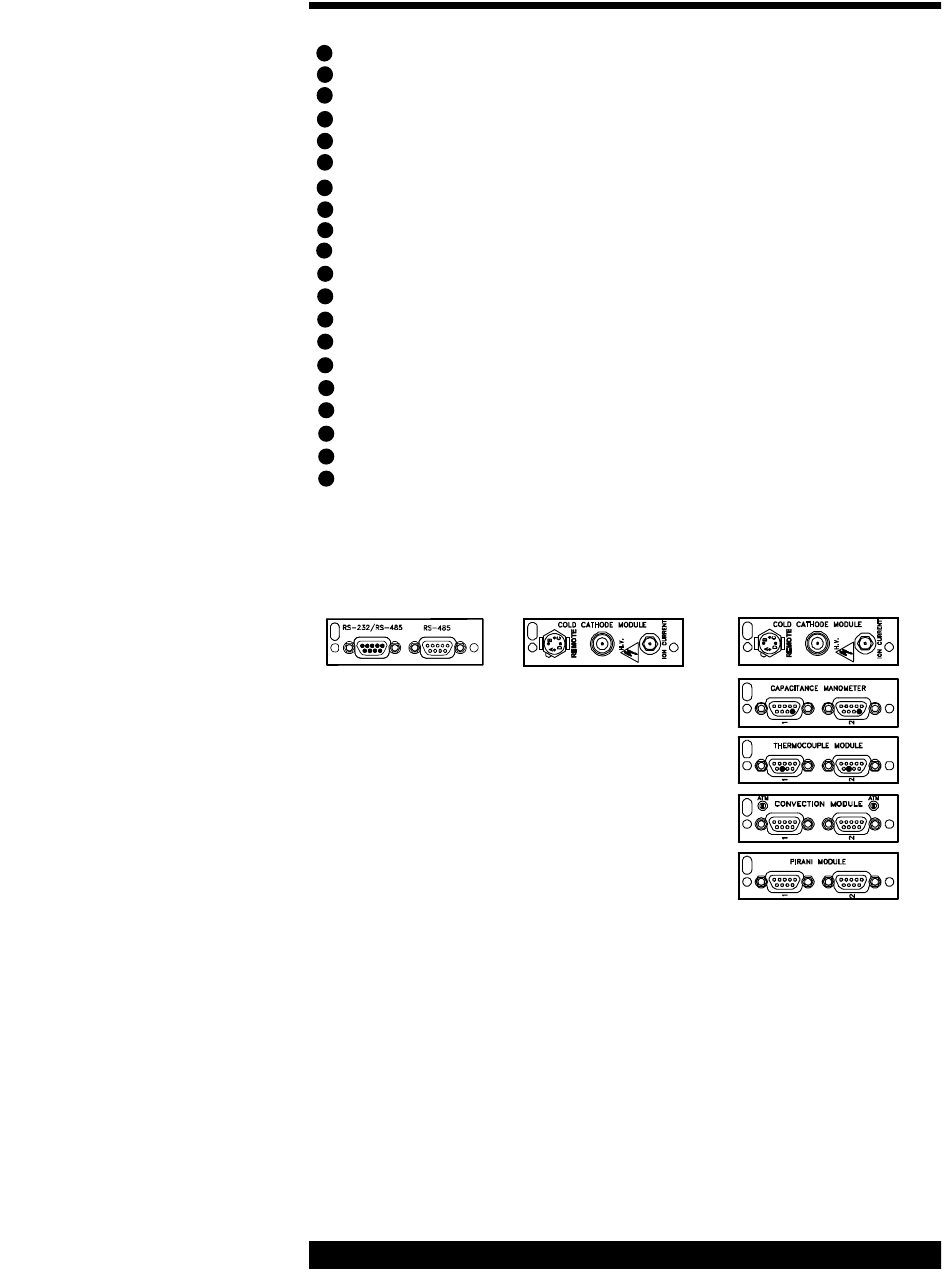

Display Label
1
Liquid Crystal Display
2
3 Gauge Select Rotary Switch
Power On-Off Switch
4
Function Select Rotary Switch
5
6 C.C. On/User Cal/Up/Zero Push-button
C.C. Off/Factory Cal/Down/Beeper Push-button
7
Power Supply Module
8
Male, 15-pin "D" Accessory Connector
9
10 AC Power Inlet, IEC 320
Slot for optional Communications Module
11
Analog Module
12
UCAL Enable/Disable Switch
13
Female, 25-pin "D" Analog Output Connector
14
Slot CC for Cold Cathode Sensor Module
15
High Voltage Remote Enable Connector
16
High Voltage SHV Connector
17
Ion Current SMA Connector
18
Slot A for Either Single or Dual Sensor Module
19
Slot B for Either Single or Dual Sensor Module
20
Slot COM Slot CC
937A Multi-Sensor System
Slot A or B
23
