Dascom DC-7600 User Manual page 48

Dascom DC-7600

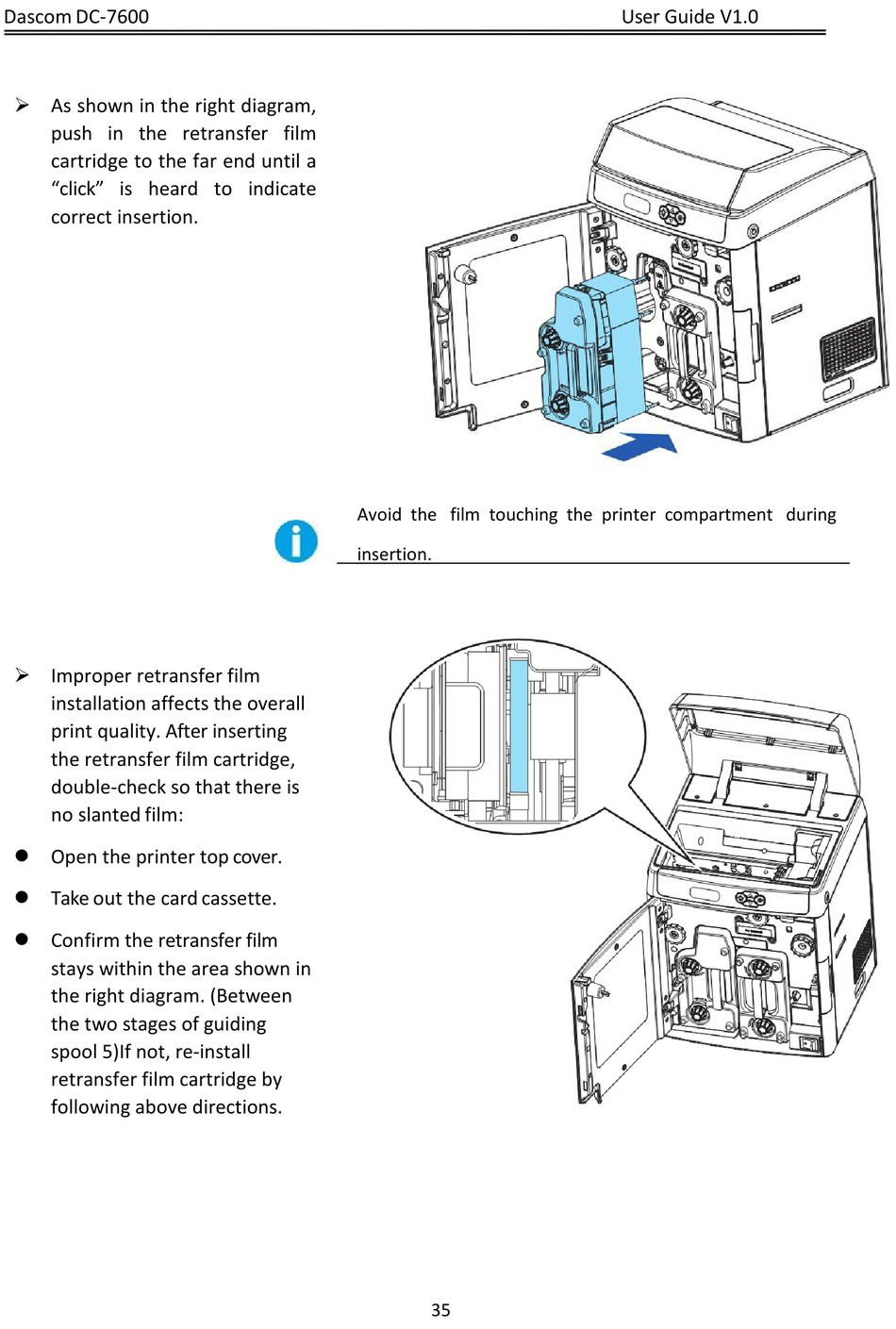

 As shown in the right diagram,
push in the retransfer film
cartridge to the far end until a
"click" is heard to indicate
correct insertion.
 Improper retransfer film
installation affects the overall
print quality. After inserting
the retransfer film cartridge,
double-check so that there is
no slanted film:
 Open the printer top cover.
 Take out the card cassette.
 Confirm the retransfer film
stays within the area shown in
the right diagram. (Between
the two stages of guiding
spool 5)If not, re-install
retransfer film cartridge by
following above directions.
Avoid the film touching the printer compartment during
insertion.
35
User Guide V1.0
