4-Reader Board

This chapter describes one of the interface boards used by the AEC2.1 system. This section
identifies and locates key components on the board and includes a brief overview of the
functional operation.
The first is the 4-Reader board, which provides all the termination points needed to fully
manage four card readers and all associated supporting hardware. The board size and location
of mounting holes on both the 4-Reader board and 8-IO board are the same.
6.1

Technical Overview of 4-Reader Board

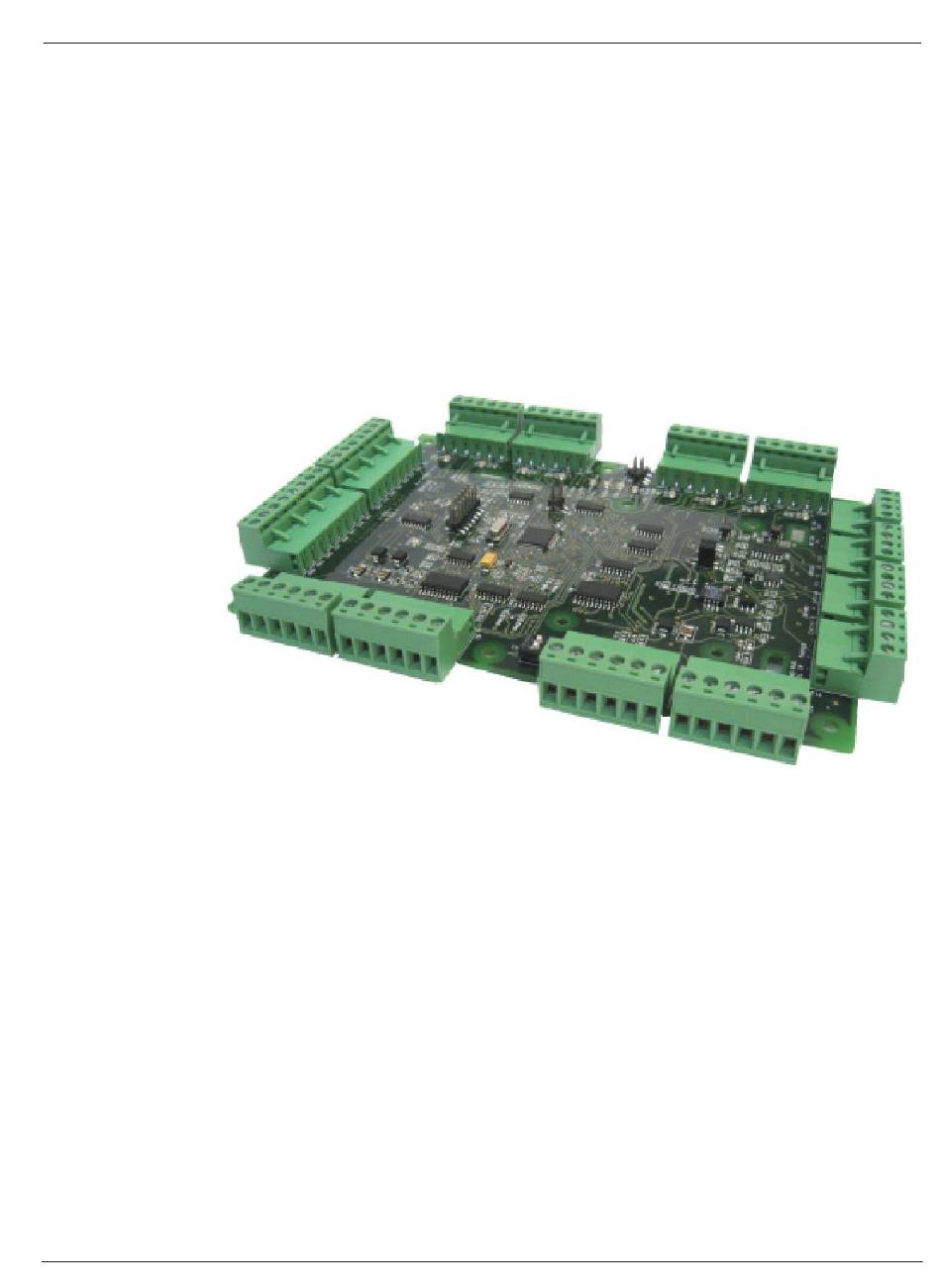

Figure 6.1: 4-Reader Board
6.1.1

Component Layout of 4-Reader Board

The diagram below shows the layout and major components of the 4-Reader board. A brief
technical description of the components is provided in the following pages.
Robert Bosch (SEA) Pte Ltd
Hardware Installation Manual
4-Reader Board | en
23
2018.11 | 1.0.6 | F.01U.122.796
