Control Power Circuit
Protection Fuses
The following fuses are used to protect the Switching Power Supply circuit
and the MOVs on the Pulse Transformer circuit board (frame B drives only)
or Transient Noise Filter circuit board (frame C drives only).
Frame Mounted on
A Switching Power Supply circuit board
B and C Switching Power Supply circuit board
B Pulse Transformer circuit board
C Transient Noise Filter circuit board

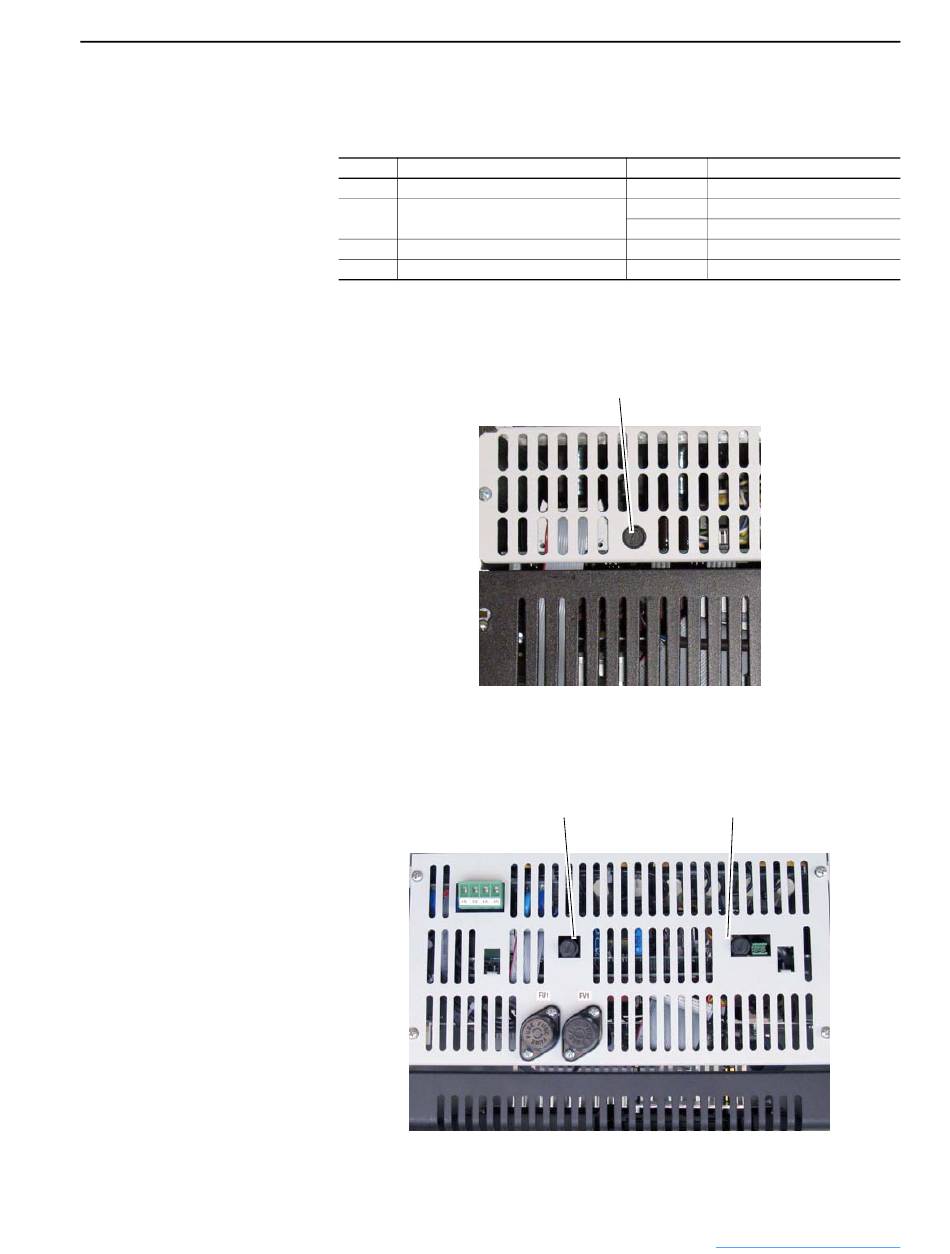

Figure A.10 Frame A Switching Power Supply Fuse Location
Figure A.11 Frame B Switching Power Supply Fuse Location
F1 = 3.15A fuse
Supplemental Drive Information
Designation Fuse
F1 1A, 250V slow, 5x20mm
F1 3.15A, 250V slow, 5x20mm
F2 2.5A, 250V fast, 5x20mm
F1/F2/F3 16A, 500V fast, 6x32mm
F11/F21/F31 25A, 500V fast, 6x32mm
Top View of Drive
Switching Power Supply fuse
Top View of Drive
F2 = 2.5A fuse
