p-2 Overview

Drive Nameplate Data

Drive Frame Sizes

Reference Materials

PowerFlex Digital DC Drive User Manual -

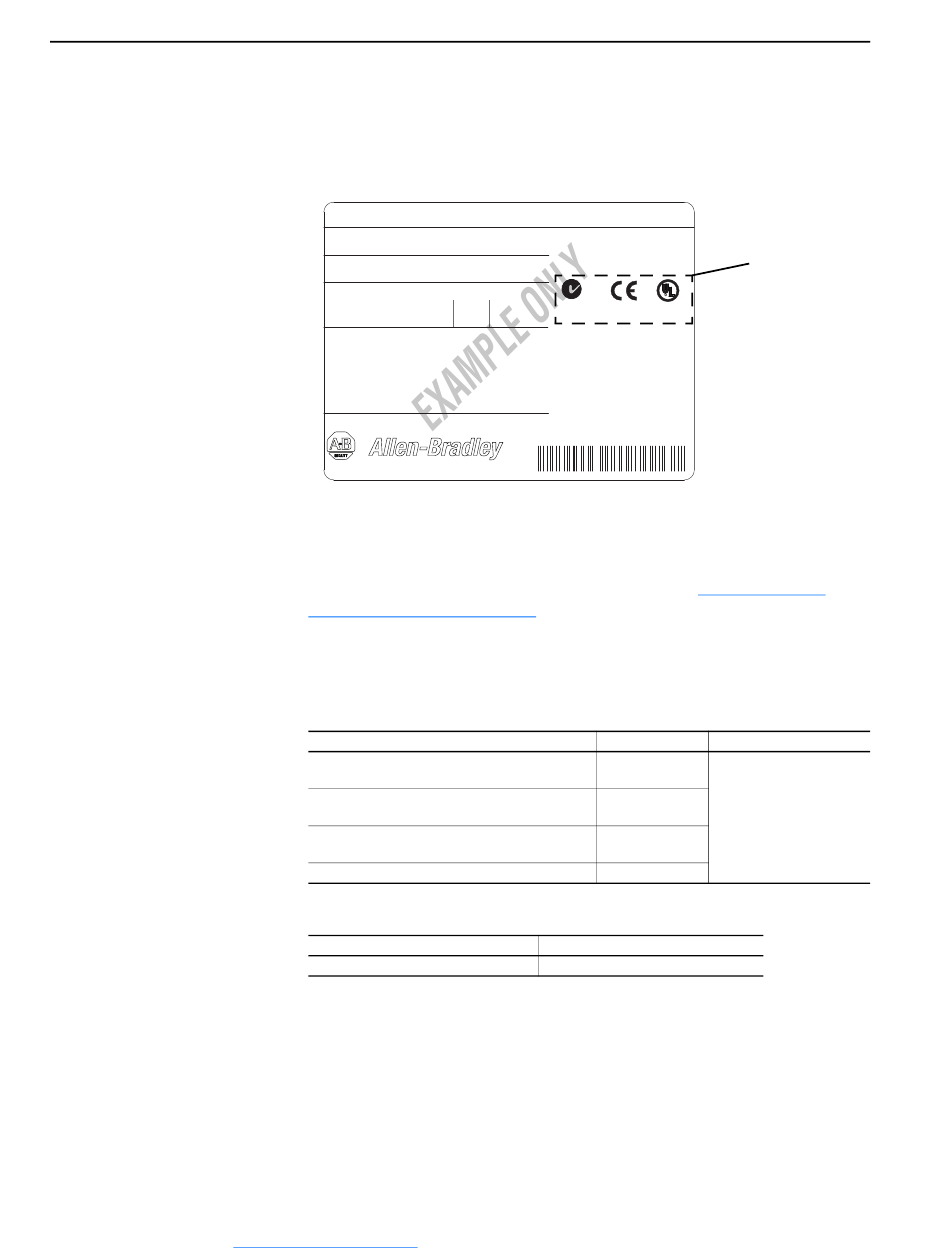

The PowerFlex DC drive contains a data nameplate located on the side of
each drive that identifies the specific model number design, applicable AC
input power and DC output power data. All communication with Rockwell
Automation personnel concerning this product should include this
information.
20P41AD4P1RA0NNN
Cat No.
UL Type OPEN/IP20
Input: 460VAC 50/60 Hz 3.3A 3 Phase
Output: 500VDC 4.1A REGEN 1.0HP
1 Min Overload Amps
3 Sec Overload Amps
DC Field:
Input: 460VAC 50/60 Hz 10A max. 1 Phase
Output: 360VDC 10A max.
Regulator Power: 115/230VAC 50/60 Hz 1.0/0.5A 1 Phase
MFD. in 2XXX on MMM DD
Made in Italy
Similar PowerFlex DC drive sizes are grouped into frame sizes to simplify
spare parts ordering, dimensioning, etc. Refer to the
Explanation on page Preface-4
respective frame sizes.
The following manuals are recommended for general drive information:
Title
Preventive Maintenance of Industrial Control and
Drive System Equipment
Safety Guidelines for the Application, Installation
and Maintenance of Solid State Control
A Global Reference Guide for Reading Schematic
Diagrams
Guarding Against Electrostatic Damage
For Allen-Bradley Drives Technical Support:
Title
Allen-Bradley Drives Technical Support www.ab.com/support/abdrives
Publication 20P-UM001C-EN-P - July 2008
Series: A
I/O: 24VDC (Standard)
Original Firmware V. 1.001
N223
6.2
8.2
Frame: A
Serial Number: A23E0042
for a list of drive catalog numbers and their
Publication
DRIVES-TD001...
SGI-1.1
100-2.10
8000-4.5.2
Online at . . .
Note: Certification
Marks Location.
C US
R
Listed
Ind. Cont. Refer to the data
Eq. 31KF
nameplate label
on your drive for
actual agency
certifications.
Catalog Number
Available Online at . . .
www.rockwellautomation.
com/literature
