Summary of Contents for Rockwell Automation Allen-Bradley PowerFlex 20P

  • Page 1: Table Of Contents

    Technical Data Original Instructions PowerFlex DC Drive and Field Controller Catalog Numbers 20P, 23P, 23PFC Topic Page Summary of Changes The PowerFlex DC Drive The PowerFlex DC Field Controller The PowerFlex DC Standalone Regulator Unsurpassed Capability in Network Communication PowerFlex DC Drive Catalog Number Explanation PowerFlex DC Field Controller Catalog Number Explanation PowerFlex DC Field Controller Product Selection Factory-installed Options...
  • Page 2: Summary Of Changes

    Changed graphics to show field leads coming off the primary side of isolation transformer and line reactor 25, 26, 27 Changed A+ and A- encoders from Single Channel to Single Ended Updated Max. Airflow Noise Level for Frame B drives Rockwell Automation Publication 20P-TD001K-EN-P - January 2021...

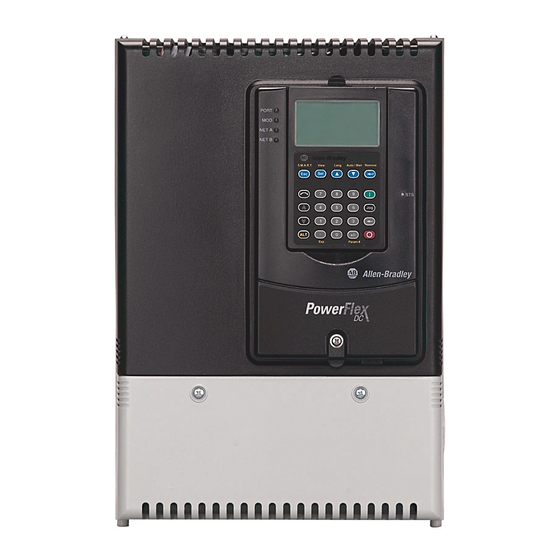

  • Page 3: The Powerflex Dc Drive

    - Encoder Feedback provides ±1% regulation and the ability to hold full load at zero speed. Packaging and Mounting • IP20, NEMA/UL Type Open - For conventional mounting inside or outside a control cabinet. Rockwell Automation Publication 20P-TD001K-EN-P - January 2021...
  • Page 4: The Powerflex Dc Field Controller

    - Remote versions for panel mount applications • PC-based configuration tools include: - Connected Components Workbench™ (CCW) software v2.0. This software leverages proven Rockwell Automation and Microsoft® Visual Studio® technologies for drive configuration and programming. CCW software can be downloaded for free from rok.auto/ ccw.
  • Page 5: The Powerflex Dc Standalone Regulator

    The drive can take different actions that are based on whether the network experienced a serious problem (broken cable, for example) versus network idle condition (PLC set to “Program”). Rockwell Automation Publication 20P-TD001K-EN-P - January 2021...
  • Page 6: Powerflex Dc Drive Catalog Number Explanation

    I/O Option Kits on page (2) Eight 24V DC digital inputs, four digital outputs, three analog inputs, and two analog outputs are standard. (3) Standard; for user installed options, see Communication Option Kits on page Rockwell Automation Publication 20P-TD001K-EN-P - January 2021...
  • Page 7 20P21AD019RA0NNN 20P41AD019RA0NNN 20P21AD027RA0NNN 20P41AD027RA0NNN 20P21AD035RA0NNN 20P41AD035RA0NNN 18.5 20P21AD045RA0NNN 20P41AD045RA0NNN 20P21AD052RA0NNN 20P41AD052RA0NNN 20P21AD073RA0NNN 20P41AD073RA0NNN 20P21AD086RA0NNN 20P41AD086RA0NNN 20P21AD100RA0NNN 20P41AD100RA0NNN 20P21AD129RA0NNN 20P41AD129RA0NNN 20P21AD167RA0NNN 20P41AD167RA0NNN 20P21AD207RA0NNN 20P41AD207RA0NNN 20P21AD250RA0NNN 20P41AD250RA0NNN 20P21AD330RA0NNN 20P41AD330RA0NNN 20P21AD412RA0NNN 20P41AD412RA0NNN 20P21AD495RA0NNN 20P41AD495RA0NNN 20P21AD667RA0NNN 20P41AD667RA0NNN Rockwell Automation Publication 20P-TD001K-EN-P - January 2021...
  • Page 8 (1) Gate Amplifier - used with all voltage classes of the Stand-Alone Regulator. The Stand-Alone Regulator and Gate Amplifier are currently sold through Rockwell Automation Drive Systems only. Consult the factory for availability. Rockwell Automation Publication 20P-TD001K-EN-P - January 2021...
  • Page 9: Powerflex Dc Field Controller Catalog Number Explanation

    23PFCB060 23PFCB120 60…200 23PFCB245 23PFCB365 23PFCB570 IP20, NEMA/UL Type Open – 230…500V AC, Three-Phase, 50/60 Hz Input, V AC DC Output, amps Cat. No. Frame Size 23PFCD017 23PFCD060 23PFCD120 230…500 23PFCD245 23PFCD365 23PFCD570 Rockwell Automation Publication 20P-TD001K-EN-P - January 2021...
  • Page 10: Factory-Installed Options

    (2) Required only when HIM is used as a handheld or remote. (3) Required in addition to 20-HIM-H10 for distances up to a total maximum of 10 m (32.8 ft). 20-HIM-CS3 20-HIM-CS5 20-HIM-CS6 Rockwell Automation Publication 20P-TD001K-EN-P - January 2021...
  • Page 11 For more information on fiber-optic cards, see 401…500V 1200 23P-FC-RB500 publication 20P-IN078, PowerFlex DC Fiber-optic Interface (1) Resistor kits are IP00 / Open Type and must be installed in an enclosure. Option Module Installation Instructions. Rockwell Automation Publication 20P-TD001K-EN-P - January 2021...
  • Page 12: Isolation Transformers

    1321-3TH093-AA 1321-3TH093-AB 1321-3TH093-AC 56 (75) 1321-3TH093-BA 1321-3TH093-BB 1321-3TH093-BC 1321-3TH093-CA 1321-3TH093-CB 1321-3TH093-CC 1321-3TH118-AA 1321-3TH118-AB 1321-3TH118-AC 75 (100) 1321-3TH118-BA 1321-3TH118-BB 1321-3TH118-BC 1321-3TH118-CA 1321-3TH118-CB 1321-3TH118-CC 1321-3TH145-AA 1321-3TH145-AB 1321-3TH145-AC 93 (125) 1321-3TH145-BA 1321-3TH145-BB 1321-3TH145-BC 1321-3TH145-CA 1321-3TH145-CB 1321-3TH145-CC Rockwell Automation Publication 20P-TD001K-EN-P - January 2021...
  • Page 13 PowerFlex DC Field Controller Isolation Transformers – 500V AC Input Three Phase Primary Voltage 460V AC Three Phase Secondary Voltage Isolation Transformer Cat. No. 1321-3TW014-AB 1321-3TW014-BB 1321-3TW014-CB 1321-3TW051-AB 1321-3TW051-BB 1321-3TW051-CB 1321-3TH093-AB 1321-3TH093-BB 1321-3TH093-CB 1321-3TH175-AB 1321-3TH175-BB 1321-3TH175-CB 1321-3TH275-AB 1321-3TH275-BB 1321-3TH275-CB 1321-3TH440-AB 1321-3TH440-BB 1321-3TH440-CB Rockwell Automation Publication 20P-TD001K-EN-P - January 2021...
  • Page 14 81.7 1321-3R100-B 100-C85D10 (1) (2) 105.4 1321-3R160-B 100-E11611 56…75 (75…100) (1) (2) 136.4 1321-3R160-B 100-E14611 169.1 1321-3RB250-B 100-E19011 93…112 (125…) 204.3 1321-3RB250-B 100-E20511 269.6 1321-3RB320-B 149 (200) 100-E30511 336.6 1321-3RB400-B 186.4 (250) 100-E37011 Rockwell Automation Publication 20P-TD001K-EN-P - January 2021...
  • Page 15 (1) The catalog number as listed is incomplete. See IEC Contactor Specifications Technical Data, publication 100-TD013, to select coil voltage and optional PLC interface terminals. (2) No AC Input contactor available for this drive rating - must be sourced locally. Rockwell Automation Publication 20P-TD001K-EN-P - January 2021...
  • Page 16 (1) To order with built in terminal lugs, add the letter “L” to the end of the catalog number (example: 100-E11611L). (2) The catalog number as listed is incomplete. See IEC Contactor Specifications Technical Data, publication 100-TD013, to select coil voltage and optional PLC interface terminals. Rockwell Automation Publication 20P-TD001K-EN-P - January 2021...
  • Page 17 DC Contactor Crimp Lug Kit Specifications on page (3) Wire and lug size dependent on enclosure dimensions and local codes. (4) No dynamic brake resistor kit available for this drive rating—must be sourced locally. Rockwell Automation Publication 20P-TD001K-EN-P - January 2021...
  • Page 18 DC Contactor Crimp Lug Kit Specifications on page (3) Wire and lug size dependent on enclosure dimensions and local codes. (4) No dynamic brake resistor kit available for this drive rating—must be sourced locally. Rockwell Automation Publication 20P-TD001K-EN-P - January 2021...
  • Page 19 0.237 (1) Coil voltage = 115V AC, 50/60Hz. (2) For more information, see DC Contactor Crimp Lug Kit Specifications on page (3) Wire and lug size dependent on enclosure dimensions and local codes. Rockwell Automation Publication 20P-TD001K-EN-P - January 2021...
  • Page 20 The following frame D drives require the listed terminal adapter kits to meet UL installation requirements. U, V, W Terminal C, D Terminal Voltage Class Drive Current Rating Code Adapter Kit No. Adapter Kit No. SK-20P-S726172 SK-20P-S726171 — SK-20P-S726172 SK-20P-S726171 SK-20P-S726173 SK-20P-S726172 — SK-20P-S726171 Rockwell Automation Publication 20P-TD001K-EN-P - January 2021...
  • Page 21: Installation Considerations

    Input Fuses - See page Input Power Conditioning - See page LCD HIM - See page DC Drive Accessories - See page Motor Overload Protection - See page DC Motor Rockwell Automation Publication 20P-TD001K-EN-P - January 2021...
  • Page 22 Mains Circuit (Terminals U, V, W) • 230V ±10%, 3Ph • 400V ±10%, 3Ph • 440V ±10%, 3Ph • 460V ±10%, 3Ph • 480V ±10%, 3Ph • 575V ±10%, 3Ph • 690V ±10%, 3Ph Rockwell Automation Publication 20P-TD001K-EN-P - January 2021...
  • Page 23 Fixed Field Adjustable Field 230V ±10%, 1Ph 200V 200V 400V ±10%, 1Ph 310V 310V 460V ±10%, 1Ph 360V 360V (1) The maximum field voltage is equal to 0.85 x AC input line voltage Rockwell Automation Publication 20P-TD001K-EN-P - January 2021...
  • Page 24: Typical Power Wiring Diagrams

    480V ±10%, 3Ph 500V 500V, ±10%, 3Ph 520V (1) Voltage measured according to DIN 40 030 (09/93) Typical Power Wiring Diagrams The following diagrams represent recommended power wiring configurations for standard PowerFlex DC drive installations. Rockwell Automation Publication 20P-TD001K-EN-P - January 2021...
  • Page 25 PowerFlex DC Drive and Field Controller Technical Data PowerFlex DC Drive Power Wiring with AC Input Contactor For footnotes, see PowerFlex DC Drive Power Wiring Diagram Footnotes on page Rockwell Automation Publication 20P-TD001K-EN-P - January 2021...
  • Page 26 PowerFlex DC Drive and Field Controller Technical Data PowerFlex DC Drive Power Wiring with DC Output Contactor For footnotes, see PowerFlex DC Drive Power Wiring Diagram Footnotes on page Rockwell Automation Publication 20P-TD001K-EN-P - January 2021...
  • Page 27 PowerFlex DC Drive and Field Controller Technical Data PowerFlex DC Drive Power Wiring with DC Output/Dynamic Braking Contactor and a Dynamic Brake For footnotes, see PowerFlex DC Drive Power Wiring Diagram Footnotes on page Rockwell Automation Publication 20P-TD001K-EN-P - January 2021...
  • Page 28 14. For frames B, C, and D drives, a pilot relay is required for the contactor coil. Armature Power Terminal Connections Terminals Description U, V, W Three-phase AC input to the armature converter C, D DC output to the motor armature Safety ground Rockwell Automation Publication 20P-TD001K-EN-P - January 2021...
  • Page 29 IMPORTANT An AC input contactor can only be used when the device is used in ‘standalone’ mode. An AC contactor for a device cannot be used when a PowerFlex DC field controller is paired with and controlled by a PowerFlex DC drive. Rockwell Automation Publication 20P-TD001K-EN-P - January 2021...
  • Page 30: Powerflex Dc Drives Terminal Block Locations

    Loosen the two screws that secure the power terminal cover to the drive chassis. Front view of drive is shown with bottom protective and power terminal covers removed. Remove the power terminal cover to connect the armature power wiring. Frame B Armature Terminal Block Locations Rockwell Automation Publication 20P-TD001K-EN-P - January 2021...
  • Page 31 6, positions 8, 9 and 10 for corresponding drive Hp rating, armature Amp rating, and field Amp rating. IMPORTANT Certain frame D drives require the use of a terminal adapter kit for terminals U, V, W, C, and D. For details, see Frame D Terminal Adapter Kits on page Rockwell Automation Publication 20P-TD001K-EN-P - January 2021...
  • Page 32 (1) Wire with an insulation rating of 600V or greater is recommended. For more information, see Cable and Wiring Recommendations in the PowerFlex Digital DC Drive User Manual, publication 20P-UM001. Frame A Armature Voltage Feedback Circuit Terminal Block Location Bottom of View of Drives Drive with no fan Drive with fan Shown with terminals jumpered for internal armature voltage feedback. Rockwell Automation Publication 20P-TD001K-EN-P - January 2021...
  • Page 33 Bottom of Drive Shown with terminals jumpered for internal armature voltage feedback. Frame D Armature Voltage Feedback Circuit Terminal Block Location Bottom of Drive, Left Side Shown with terminals jumpered for internal armature voltage feedback. Rockwell Automation Publication 20P-TD001K-EN-P - January 2021...
  • Page 34 Bottom View of Frame A Top View of Frame B Frame C Field Circuit Terminal Block Location 230V/460V AC Input Frame C, Front View of Drive 575V/690V AC Input Frame C, Left Side of Drive Rockwell Automation Publication 20P-TD001K-EN-P - January 2021...
  • Page 35 6, positions 8, 9 and 10 for corresponding drive Hp rating, armature Amp rating, and field Amp rating. (2) For more information, see Cable and Wiring Recommendations in the PowerFlex Digital DC Drive User Manual, publication 20P-UM001. Rockwell Automation Publication 20P-TD001K-EN-P - January 2021...
  • Page 36 230V/460V AC Input Frame C 575V/690V AC Input Frame C Lower, right side of the control Frame D Control Circuit Terminal Block Location (only on PowerFlex DC Drives) On control pan to the left of the HIM Rockwell Automation Publication 20P-TD001K-EN-P - January 2021...
  • Page 37 Switching Power Supply Board (on Control EMI Shield Control EMI shield the back of the Control EMI shield) (Shown in the open position) Front of drive that is shown with top protective cover removed. Rockwell Automation Publication 20P-TD001K-EN-P - January 2021...
  • Page 38 (1) For more information, see Cable and Wiring Recommendations in the PowerFlex Digital DC Drive User Manual, publication 20P-UM001. Frame C Heat Sink Cooling Fan Terminal Block Locations 230V/460V AC Input Frame C 575V/690V AC Input Frame C Lower, right side of the control Rockwell Automation Publication 20P-TD001K-EN-P - January 2021...
  • Page 39 (1) For more information, see Cable and Wiring Recommendations in the PowerFlex Digital DC Drive User Manual, publication 20P-UM001. Frame D, Series B and C Heat Sink Cooling Fan Terminal Block Location Top View of Drive Rockwell Automation Publication 20P-TD001K-EN-P - January 2021...
  • Page 40 Digital DC Drive User Manual, publication 20P-UM001. Frame C Internal Armature Fuse Signal Terminal Block Location Frame D Internal Armature Fuse Signal Terminal Block Location On control pan to the left of the HIM Rockwell Automation Publication 20P-TD001K-EN-P - January 2021...
  • Page 41 Motor thermistor connections (PTC) Frames A and B Contact Relay and Thermistor Terminal Block Locations Frame A Frame B Note: Terminals 78 and 79 shown with 1k ohm resistor in place of temperature sensor. Rockwell Automation Publication 20P-TD001K-EN-P - January 2021...
  • Page 42 35 & 36, 75 & 76 0.140…1.500 0.140…2.500 26…14 0.5 (4.4) Thermistor and 78 & 79 Thermal Switches (1) For more information, see Cable and Wiring Recommendations in the PowerFlex Digital DC Drive User Manual, publication 20P-UM001. Rockwell Automation Publication 20P-TD001K-EN-P - January 2021...
  • Page 43 For (+) and (–) 10V pot references. 10 PE ground PE ground to drive chassis. (1) Differential Isolation - External source must be maintained at less than 160V with respect to PE. Input provides high common mode immunity. Rockwell Automation Publication 20P-TD001K-EN-P - January 2021...
  • Page 44 Important: When using the internal +24V DC supply (terminal 19) for digital inputs 5…8, you 35 Digital Input Common must connect the digital input common (terminal 35) to the +24V supply common — — (terminal 18). 36… Not Used Rockwell Automation Publication 20P-TD001K-EN-P - January 2021...
  • Page 45 (2) Selectable via switch S21 on the Control board. See “DIP Switch and Jumper Settings” in the PowerFlex Digital DC Drive User Manual, publication 20P-UM001, for more information. Digital Encoder Terminal Block Location Digital Encoder terminal block Rockwell Automation Publication 20P-TD001K-EN-P - January 2021...
  • Page 46 Digital Encoder Terminal Block Location on page Sample Encoder Signal Wiring Encoder Signal Connection Example Supply Common Z NOT B NOT Single-Ended, Dual Channel A NOT to Shield Z NOT B NOT Differential, Dual Channel A NOT to Shield Rockwell Automation Publication 20P-TD001K-EN-P - January 2021...
  • Page 47 Installation Instructions, publication 20P-IN071, which provides installation and wiring information. See ‘Resolver Type Selection’ in the PowerFlex Digital DC Drive User Manual, publication 20P-UM001, for more information on compatible resolvers. The PowerFlex DC drive is not CE Certified when the resolver feedback module is installed in the drive. Rockwell Automation Publication 20P-TD001K-EN-P - January 2021...
  • Page 48: Powerflex Dc Drives And Field Controller Circuit Protection

    FWP-40B A70QS40-22F A70QS40-4 FWP-63A22F FWP-60B A70QS63-22F A70QS60-4 FWP-80A22F FWP-80B A70QS80-22F A70QS80-4 FWP-100A A70QS100-4K — FWP-150A — A70QS150-4K FWP-175A A70QS175-4K FWP-250A A70QS250-4 FWP-300A A70QS300-4 FWP-350A A70QS350-4 — — FWP-400A A70QS400-4 FWP-600A A70QS600-4K FWP-600A A70QS600-4 Rockwell Automation Publication 20P-TD001K-EN-P - January 2021...
  • Page 49 Drive Current Rating DC Amps AC Line Amps Code North American FWP Type North American A70QS Type 67.5 55.1 FWP-100A A70QS100-4 101.3 82.7 FWP-175A A70QS175-4K 110.3 FWP-225A A70QS225-4 220.6 FWP-450A A70QS450-4 330.9 FWP-600A A70QS600-4K Rockwell Automation Publication 20P-TD001K-EN-P - January 2021...
  • Page 50 FWP-200A – A70QS200-4K 105.4 – FWP-250A – A70QS250-4 136.4 – FWP-350A – A70QS350-4 169.1 – FWP-400A – A70QS400-4 204.3 – FWP-500A – A70QS500-4K 269.6 – FWP-700A – A70QS700-4 336.6 – FWP-800A – A70QS800-4 Rockwell Automation Publication 20P-TD001K-EN-P - January 2021...
  • Page 51 230V AC Input Drives Drive Current Field Amps Type Quantity Bussmann Mersen SIBA Rating Code 6 x 32 mm FWH-016A6F E085449 70 125 40.16 10 x 38 mm FWC-25A10F A60Q25-2 60 033 05.25 Rockwell Automation Publication 20P-TD001K-EN-P - January 2021...
  • Page 52 10 x 38 mm FWC-25A10F A60Q25-2 60 033 05.25 PowerFlex DC Drive Frame A Field AC Input Line Fuses Location Bottom View of Drive with Fan Bottom View of Drive without Fan Field circuit fuses Rockwell Automation Publication 20P-TD001K-EN-P - January 2021...
  • Page 53 Fuses for Regenerative Frame C and D Drives on page for locations. 230V AC Input Drives Drive Current Field Frame Type Bussmann Mersen SIBA Rating Code Amps 10 x 38 mm FWC-25A10F A60Q25-2 6003305.25 22 x 58 mm FWP-50A22F A70QS50-22F 5014006.50 Rockwell Automation Publication 20P-TD001K-EN-P - January 2021...
  • Page 54 PowerFlex DC Frame C and D Drives Field Circuit Fuse Locations Frame C Drive Frame D Drive Field AC input fuses are on the control EMI shield, which holds the control board. Top, left side of drive control panel. Rockwell Automation Publication 20P-TD001K-EN-P - January 2021...
  • Page 55 H300571 + switch MS 3V 1-5 UR 20 735 32.700 + switch 28 001 04 1688 1377 170M6246 + switch 170H0069 J300572 + switch MS 3V 1-5 UR 20 735 32.800 + switch 28 001 04 Rockwell Automation Publication 20P-TD001K-EN-P - January 2021...
  • Page 56 Frame D Regenerative Drive - Leg Fuse Location Leg fuses and switches are on the busbars behind the Control EMI shield, Note: Drive shown with Control EMI which holds the Control board. shield in open position. Rockwell Automation Publication 20P-TD001K-EN-P - January 2021...
  • Page 57 B300266 + switch MS 3V 1-5 UR 20 635 32.1250 + switch 28 001 04 1688 1377 170M6262 + switch 170H0069 X300262 + switch MS 3V 1-5 UR 20 635 32.800 + switch 28 001 04 Rockwell Automation Publication 20P-TD001K-EN-P - January 2021...
  • Page 58 Ferrule A70QS Type FWP Type FWP Type A70P / A70QS Type 23PFCx017 FWP-25A14F FWP-25B A70QS25-14F A70P25-4 23PFCx060 FWP-80A22F FWP-80B A70QS80-22F A70QS80-4 23PFCx120 FWP-150A A70QS150-4K 23PFCx245 FWP-300A A70QS300-4 — — 23PFCx365 FWP-400A A70QS400-4 23PFCx570 FWP-600A A70QS600-4 Rockwell Automation Publication 20P-TD001K-EN-P - January 2021...
  • Page 59 Frame B Switching Power Supply Fuse Location (on all PowerFlex DC Drives and Field Controllers) Top View of Drive F1 = 3.15 A fuse F2 = 2.5 A fuse (Board Rev. “H” and below only) (Board Rev. “H” and below only) Rockwell Automation Publication 20P-TD001K-EN-P - January 2021...
  • Page 60 EMI shield, which holds the control board. Frame D Switching Power Supply Circuit Board Fuse Location (only on PowerFlex DC Drives) Switching power supply fuse holder The switching power supply circuit board is on the Control EMI shield. Rockwell Automation Publication 20P-TD001K-EN-P - January 2021...
  • Page 61: Mounting

    150 (6) 150 (6) 50 (2) (0.4) (0.4) (0.4) Airflow through the drive 150 (6) must not be impeded. IMPORTANT Verify that all mounting screws are properly tightened before and after operation. Rockwell Automation Publication 20P-TD001K-EN-P - January 2021...
  • Page 62: Approximate Dimensions - Powerflex Dc Drives

    275 (10.8) Frame A Weights Drive w/ND Rating Code Weight, kg (lb) 230V 460V Drive Drive and Packaging 11 (24.25) 13 (28.7) — 11.5 (25.4) 13.5 (29.8) – — 12 (26.5) 14 (30.9) — Rockwell Automation Publication 20P-TD001K-EN-P - January 2021...
  • Page 63 248.6 (9.8) Frame B Weights Drive w/ND Rating Code Weight, kg (lb) 230V 460V 575V Drive Drive and Packaging 25.5 (56.2) 27.5 (60.6) — 29.5 (65.0) 31.5 (69.5) 32 (70.5) 34 (75) — Rockwell Automation Publication 20P-TD001K-EN-P - January 2021...
  • Page 64 Drive and Packaging Drive Drive and Packaging — 61 (134.5) 83 (183.0) 57 (125.7) 79 (174.2) — 65 (143.3) 87 (191.8) 62 (136.7) 84 (185.2) — — 72 (158.7) 94 (207.2) 68 (150.0) 90 (198.4) Rockwell Automation Publication 20P-TD001K-EN-P - January 2021...
  • Page 65 134 mm (5.3 in.) C and D terminals are installed on 460V AC input, 800 Hp and 900 Hp, 575V AC input, 1000 Hp, and 690V AC input, 1100, 1200, 1250, and 1,400 Hp drives only. All other frame D ratings have 100 mm (4.0 in.) C and D terminals. Rockwell Automation Publication 20P-TD001K-EN-P - January 2021...
  • Page 66 Mounting Holes (5) (0.6) Ø 23 (0.9) 227.5 (9.0) 1435, max (56.5) 1230 (48.4) 157.5 Mounting Slots (5) (6.2) 10.5 (0.4) (5.1) (0.4) 215.225 (8.5) (5.0) (5.0) (5.0) (5.0) (3.7) (3.7) (21.0) (21.3) Rockwell Automation Publication 20P-TD001K-EN-P - January 2021...
  • Page 67 278 (612.9) 150 (330.7) 228 (502.7) 202 (445.3) 280 (617.3) 152 (335.1) 230 (507.1) 215 (474.0) 293 (646.0) 165 (363.8) 243 (535.7) 172 (379.2) 250 (551.2) 241 (531.3) 319 (703.3) 191 (421.1) 269 (593.0) Rockwell Automation Publication 20P-TD001K-EN-P - January 2021...
  • Page 68: Approximate Dimensions And Weights - Powerflex Dc Field Controllers

    275 (10.8) Frame A Weights Weight, kg (lb) Cat. No. Drive Drive and Packaging 23PFCB017 and23PFCD017 10.8 (23.8) 12.8 (28.2) 23PFCB060 and 23PFCD060 11.3 (24.9) 13.3 (29.3) 23PFCB120 and 23PFCD120 11.8 (26.0) 13.8 (30.4) Rockwell Automation Publication 20P-TD001K-EN-P - January 2021...
  • Page 69 Frame B Weights Weight, [kg (lb)] Cat. No. Drive Drive and Packaging 23PFCB245 and 23PFCD245 25.3 (55.8) 27.3 (60.2) 23PFCB365 and 23PFCD365 29.3 (64.6) 31.3 (69.0) 23PFCB570 and 23PFCD570 31.8 (70.1) 33.8 (74.5) Rockwell Automation Publication 20P-TD001K-EN-P - January 2021...
  • Page 70: Powerflex Dc Drive Specifications

    • Low Voltage Directive (2006/95/EC) Standards applied: • EN 61800-5-1 • EN 61800-3 Agency Certification Certified by Rockwell Automation to be in conformity with the requirements of the applicable Australian legislation and the standards referenced: IEC 61800-3. MSIP-REM-RAA-20P Korean KC Registration See the certificate of registration for specific drive catalog numbers that have this certification.
  • Page 71 360V DC @ 460V AC Maximum field output voltage is 0.85 x AC input line voltage. 150% rated current for 1 minute Controller Current Overload: 200% rated current for 3 seconds Max. Short Circuit Rating: 100,000 A Rockwell Automation Publication 20P-TD001K-EN-P - January 2021...
  • Page 72 Four standard configurable, four additional configurable with the I/O Expansion circuit board. Digital Outputs 30V, 50 mA Two configurable, N.O. contacts Relay Outputs Max. 250V AC, 1 A AC1 (1) Subject to motor specs. and current loop tuning. Rockwell Automation Publication 20P-TD001K-EN-P - January 2021...
  • Page 73: Powerflex Dc Field Controller Specifications

    • Low Voltage Directive (2006/95/EC) Standards applied: • EN 50178 Agency Certification • EN 61800-3 Certified by Rockwell Automation to be in conformity with the requirements of the applicable Australian legislation and the standards referenced: IEC 61800-3. MSIP-REM-RAA-20P Korean KC Registration See the certificate of registration for specific drive catalog numbers that have this certification.
  • Page 74: Ip20 Nema/Ul Type Open Watts Loss

    (Internal power supply) 160 m — 45 dB(A) — (1) See PowerFlex DC Drive Catalog Number Explanation on page 6, positions 8…10 for corresponding drive Hp rating, armature Amp rating, and field Amp rating. Rockwell Automation Publication 20P-TD001K-EN-P - January 2021...
  • Page 75 (1) Fans on frames C drives must be powered by an external 230V AC, 50/60 Hz power supply, which is connected to terminals U3 and V3. (2) See PowerFlex DC Drive Catalog Number Explanation on page 6, positions 8…10 for corresponding drive Hp rating, armature Amp rating, and field Amp rating. Rockwell Automation Publication 20P-TD001K-EN-P - January 2021...
  • Page 76 23PMD4 23PMD7 160 m (Internal power supply) 23PMF4 40 dB(A) 23PMF7 (1) For a description of ratings, see catalog numbers in the PowerFlex DC Standalone Regulator and Gate Amplifier User Manual, publication 23P-UM001. Rockwell Automation Publication 20P-TD001K-EN-P - January 2021...
  • Page 77: Additional Resources

    PowerFlex DC Drive and Field Controller Technical Data Additional Resources These documents contain additional information concerning related products from Rockwell Automation. Resource Description Provides basic information that is required to install, start up, and troubleshoot the PowerFlex Digital DC Drive User Manual, publication 20P-UM001 PowerFlex DC drive.
  • Page 78 Your comments help us serve your documentation needs better. If you have any suggestions on how to improve our content, complete the form at rok.auto/docfeedback. Allen-Bradley, Connected Components Workbench, DPI, DriveTools, expanding human possibility, FactoryTalk, PanelView, PowerFlex, Rockwell Automation, Rockwell Software, SCANPort, Studio 5000, and TorqProve are trademarks of Rockwell Automation, Inc.
