Suspension - Whirlpool VAN GOGH WWD22ABBPH00 Service Manual

Dual inlet

5.14 – Suspension

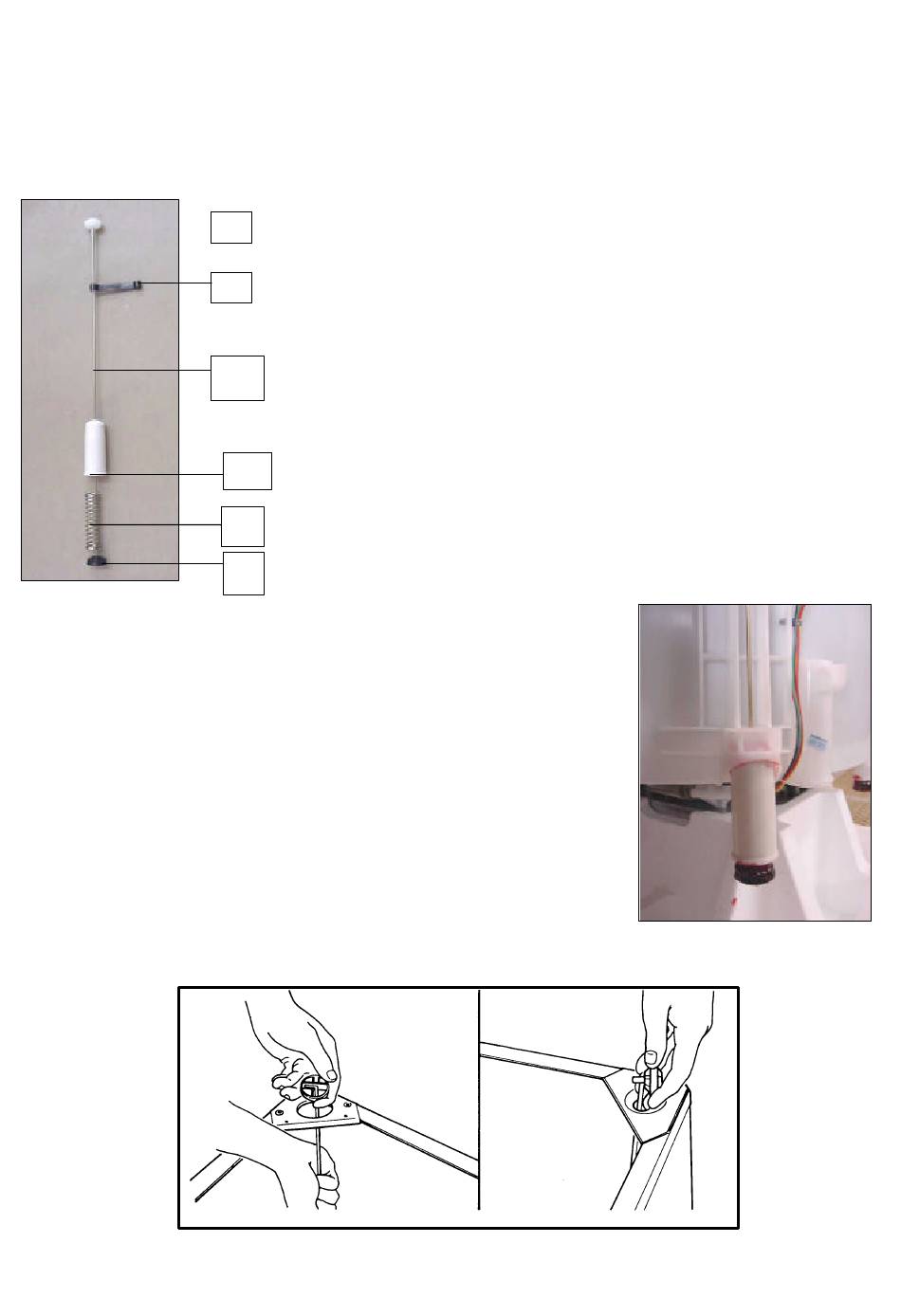

Four (4) sets of Suspension Rods support the Tub/Mechanism assembly.

The Suspension Rod set is composed by:

WWD22A

The Straps are fitted in projections molded in the Tub and their purpose is

to damp the movement of the Tub/Mechanism assembly during the braking

operation.

The lower part of the Suspension is fitted directly in the Tub.

DISMOUNTING

Remove the Cover;

Lay the Washer down;

Pull the Suspension Rod and remove the corner shelf's Cover Support;

Position the Cover Support so its hollow part matches the Suspension

Rod's fold;

Pull and release the Support;

Remove the Suspension Rod sets from the Tub.

MSEX0060i

A – Ball Suspension Upper

B – Strap

C – Suspension Rod Assembly

D - Cup

E – Spring

F – Sleeve
