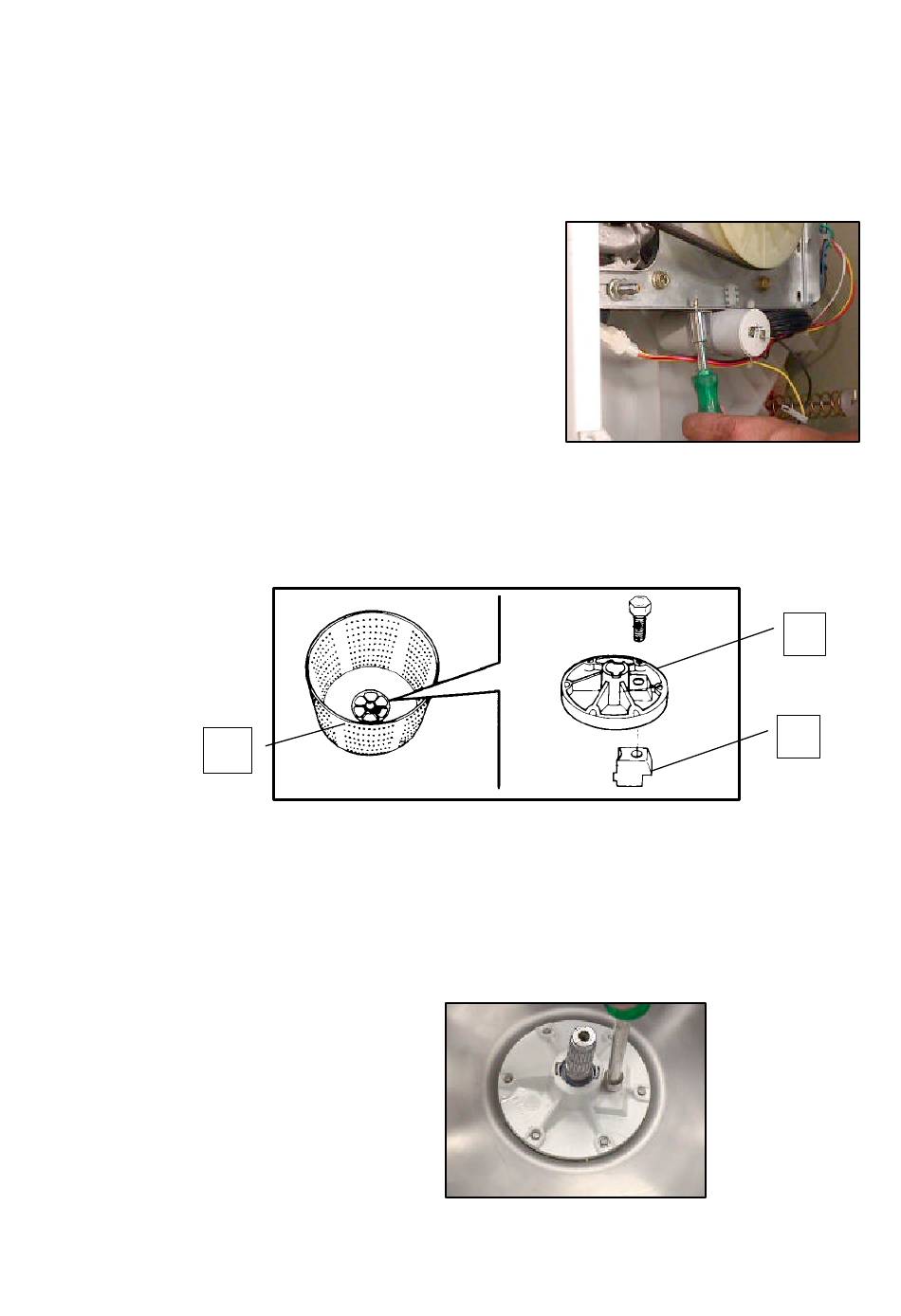

5.10 – Capacitor (15mf)
It has the function of helping in the Motor start and also in its rotation direction reversal.
TEST
In order to test Capacitor, discharge it by short-circuiting its terminals by a screwdriver with insulating
handle. Connect an Ohmmeter in Rx100 scale to Capacitor terminals. Pointer should move towards ''0''
reading in scale and then return towards ''infinite''.
DISMOUNTING
The capacitor is fastened to the Motor Support through a screw, to
loose it you must only release the screw.
5.11 – Basket
The Basket is made with polypropylene (plastic material.)
The Support Basket and the Wedge have the function of fastening the Basket to the Spinning Tube.
The Water Flow Deflector is encased in the Spinning Tube , over the Support Basket, and has the purpose
of providing a better water recirculation during the agitation cycle.
A – Support of Basket
B – Wedge of Support
C – Basket
DISMOUNTING
-
Release the screw that fasten the Agitator; subsequently remove the Agitator;
-
Release the screw that fasten the Wedge;
-
Pull out the Basket.
MSEX0060i
C
A
B
21
