5.12 – Tub
Made with polypropylene material, it has external structural reinforcements, as well as a projection through
which the water can pass in case of overflow; the water is sent directly to the ground, preventing damage to
the electric components.
DISMOUNTING
-
Remove the Top / Lid;
-
Remove the Agitator;
-
Release the Wedge Screw;
-
Remove Basket;
-
Using a small screwdriver remove the Deflector;
-
Lay the Washer down and release the hose connecting the Tub to the Electric Pump. Release the
Electric Pump too;
-
Remove, from the lower side of the Washer, the set composed by the Tub and Mechanism Support;
-
Support the Tub with the Tub/Mechanism Support set turned upwards;
-
Remove the four screws that fasten the Tub to the Support, releasing the Tub.

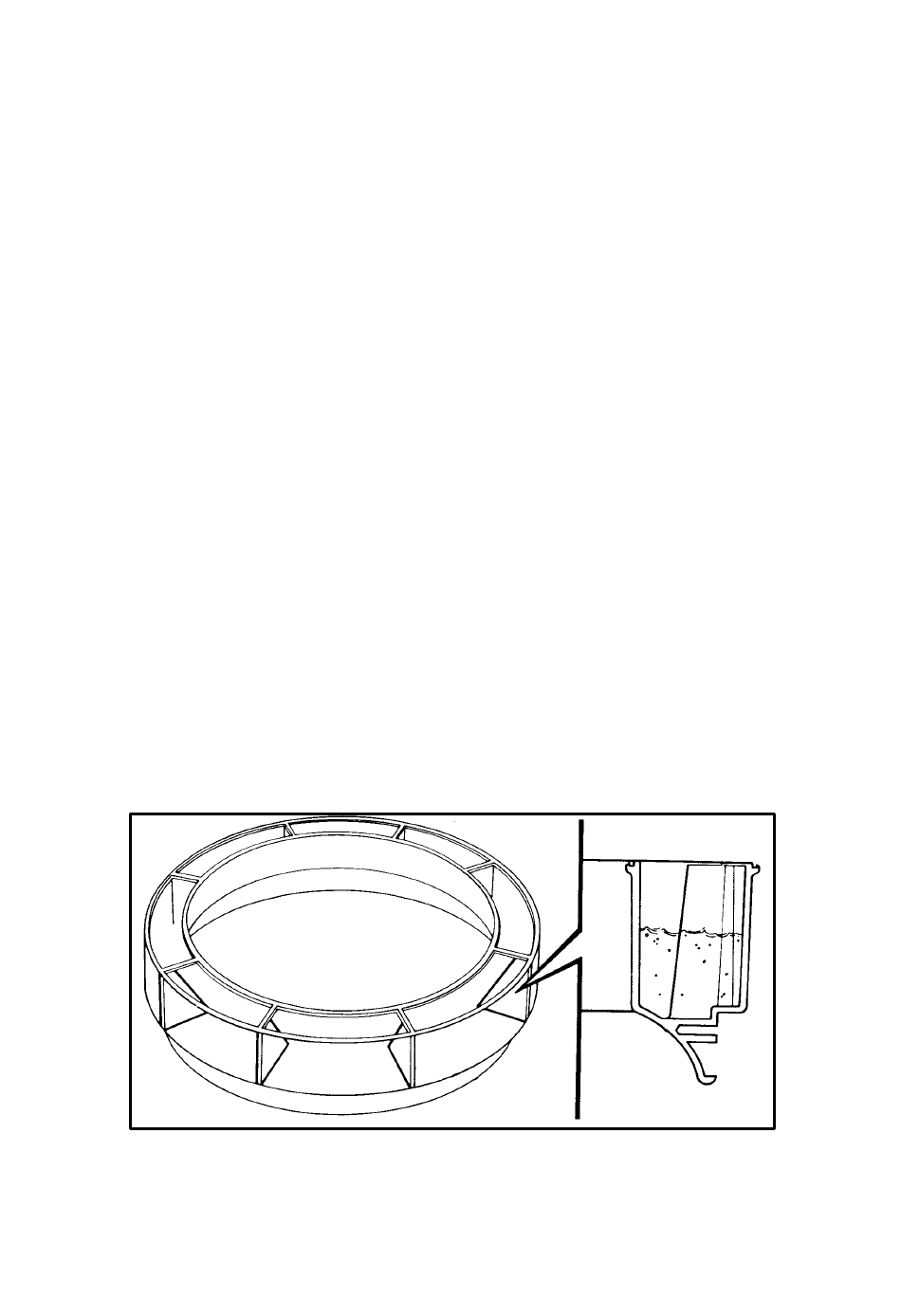

5.13 – Balance Ring
Fastened to the Basket rim by 4 screws, this Ring aims at compensating a possible unbalance caused by a
poor distribution of the clothes load. The compensation occurs by the water displacement action inside the
Ring through its blades.
DISMOUNTING
-
Remove the Agitator and the Basket;
-
Release the screws that fasten the Balance Ring to the Basket.
MSEX0060i
22
