User Instructions; Panel Functions - Whirlpool VAN GOGH WWD22ABBPH00 Service Manual

Dual inlet

Position the Washer in the desired site, leaving a 10 cm free space from the walls or other furniture or

devices;

Level the Washer using the leveling feet;

4 – USER INSTRUCTIONS

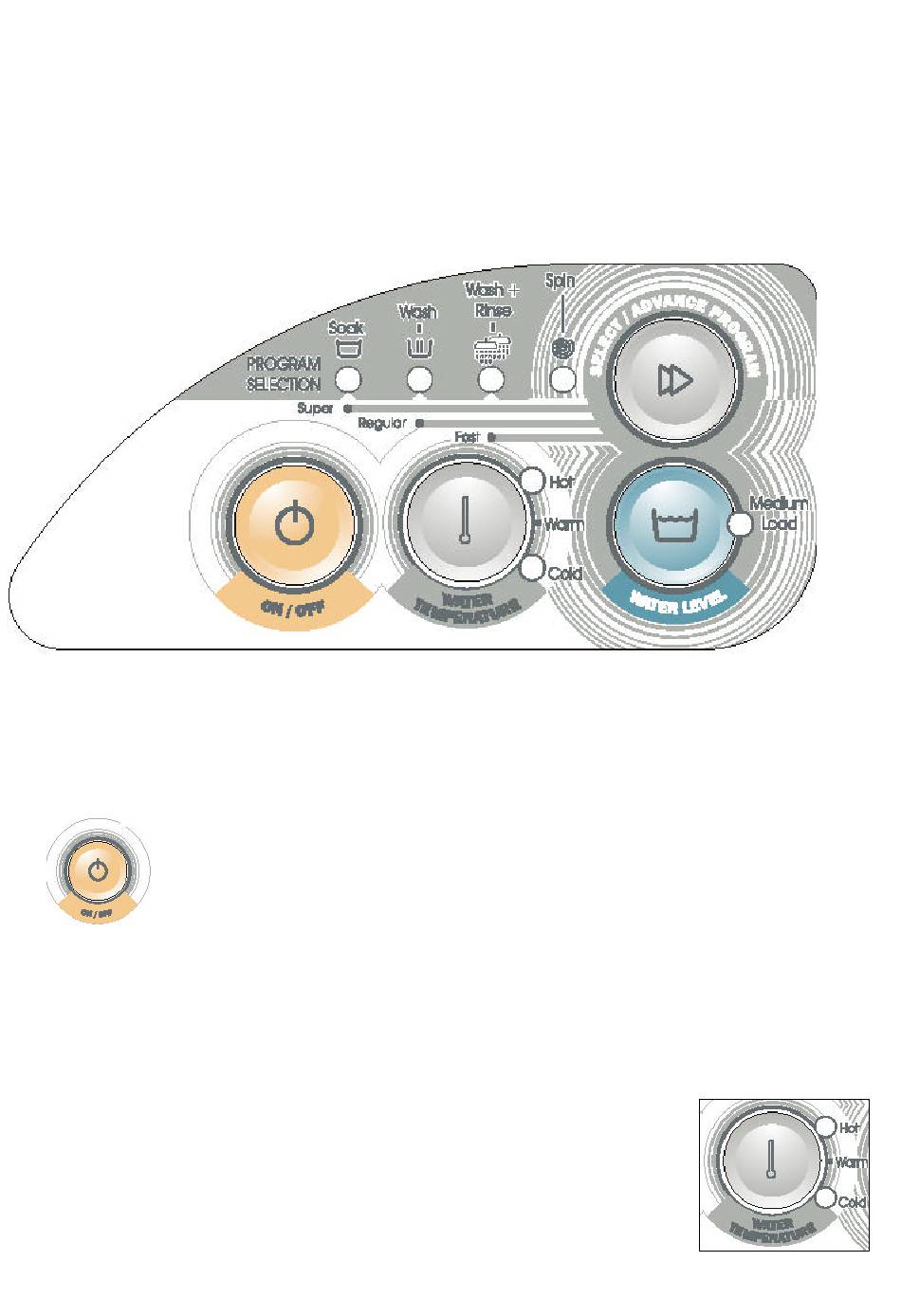

4.1 – Panel Functions

Whenever the washer is connected to the electric power, panel lights are lit during 1/2 second and then

turned off, that is, Electronic Control (PCB) is ON, but all electrical loads and LED's are turned off. The

power consumption is the lowest possible.

The Panel has following selections

Whenever Washer is turned on using this key, Panel memory will have the following program options

Super Wash

Medium water level

However if the washer isn't unplugged to the electric power, when the ON/OFF key is pressed the Panel will

call the last program used.

Water Temperature Key

Defines Hot and Cold temperatures.

The operation can be checked in the topic 5.5 – Inlet Valve.

he Led keep lighted, on the current Water temperature selection.

MSEX0060i

ON/OFF Key

Turns on/off the Panel.
