Installing The Unit - Whirlpool VAN GOGH WWD22ABBPH00 Service Manual

Dual inlet

The diameter of the electric network's wire must be conform the following table:

DISTANCE FROM POWER

DISTRIBUTION PANEL

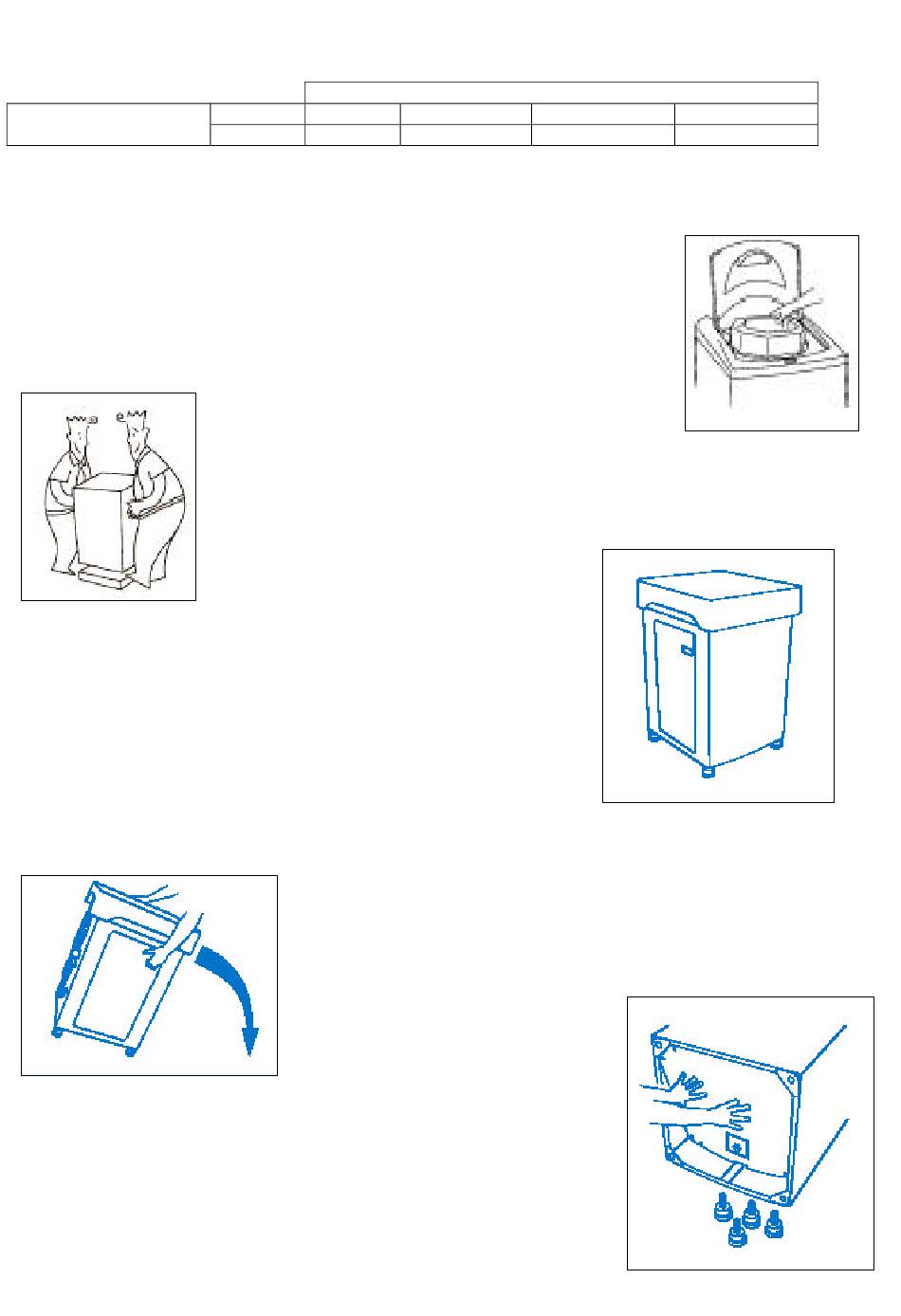

3.3 Installing the Unit

Remove the Washer, the protective Styrofoam and the accessories from the

package;

Put the upper Styrofoam base on the top of Washer;

Remove the feet.

Mount the Bottom Cover inside the cabinet.

Note: See the right position in the label attached to the part.

MSEX0060i

VOLTAGE

2.5mm²

220V

Up to 53m

Remove the Bottom Cover that is pressed on the Styrofoam base,

subsequently, remove the Base. Never use the Washer with the Styrofoam base,

lest it is damaged;

Put a soft cloth on the floor (to avoid cabinet damages) and lay the

product with the front part towards to the floor;

WIRE GAUGE

4.0mm²

6.0mm²

From 54 to 84m

From 85 to 135m

10.0mm²

From 136 to 213m
