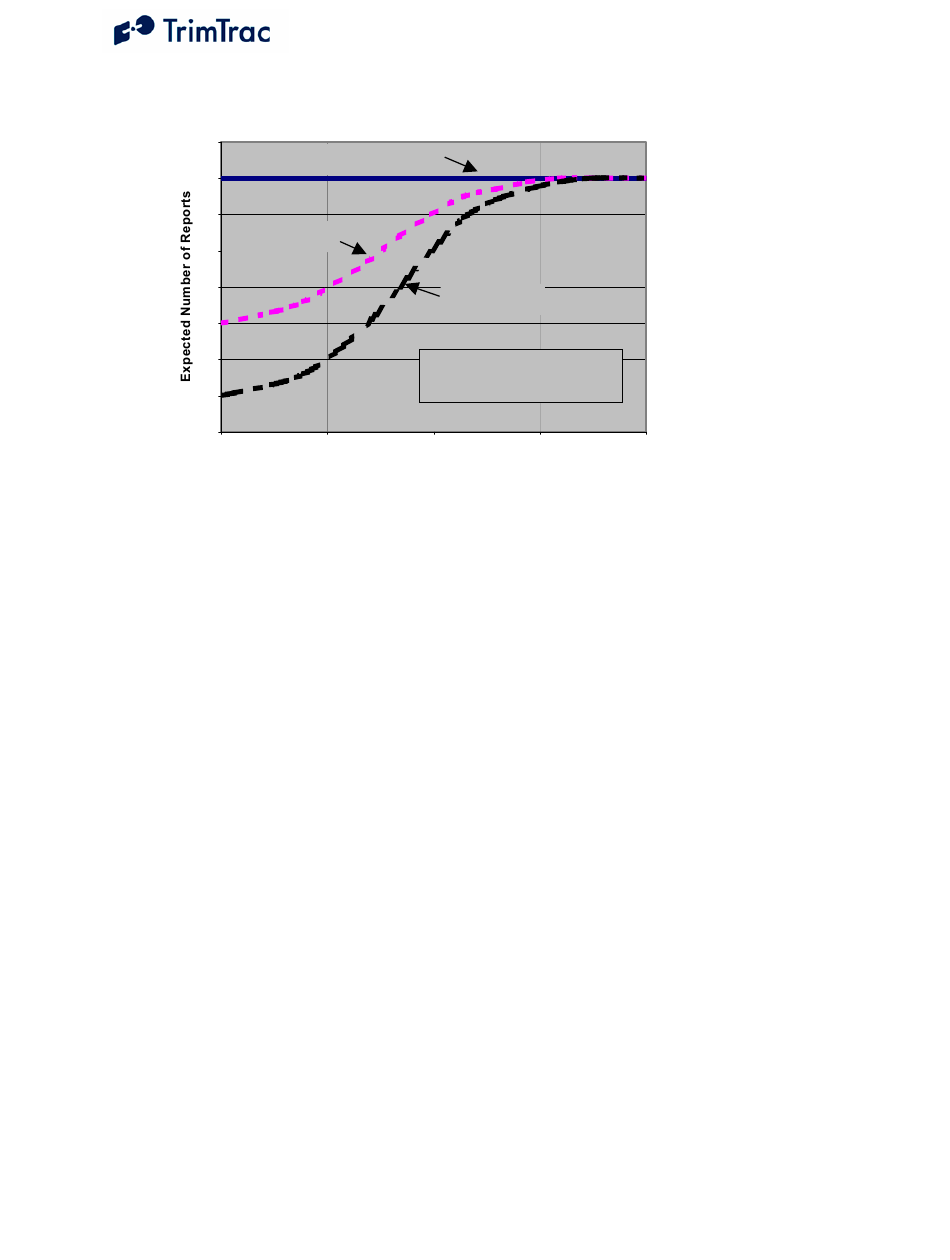

Figure 20. Vehicle Placement Versus Expected Number Of Reports - TrimTrac ProE Locator Technical Manual

Report Density v. Unit/Antenna Placement and DELAY State Timeout, T4
110
On Dashboard or with external GPS antenna
(Typ. 60 Sec GPS Fix)
100
90
In Glovebox
(Typ. 190 Sec GPS Fix)
80
70
60
50
40
30
10 100
DELAY State Timeout, T4 (Default = 900 Seconds)

Figure 20. Vehicle Placement versus Expected Number of Reports

Under Front Seat
(Typ. 345 Sec GPS Fix)
As DELAY State Timeout, T4, increases, the
difference in the number of reports based on
unit placement decreases. GPS fix times remain
constant even as T4 increases.
1,000 10,000
TrimTrac ProE Locator Technical Manual v2.0e 67
